• 1000W 80+ Gold Efficiency
• PCIe 5.0 600W 16-Pin Connector
• Fully Modular Design
• ATX Form Factor
• 135mm FDB Cooling Fan
• Active PFC
• Wide Voltage Input (100–240V)
• Comprehensive Protection
• Premium White Design
• 10-Year Warranty

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

ATX 3.1 Ready
The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards

ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

ONLY WHAT YOU NEED

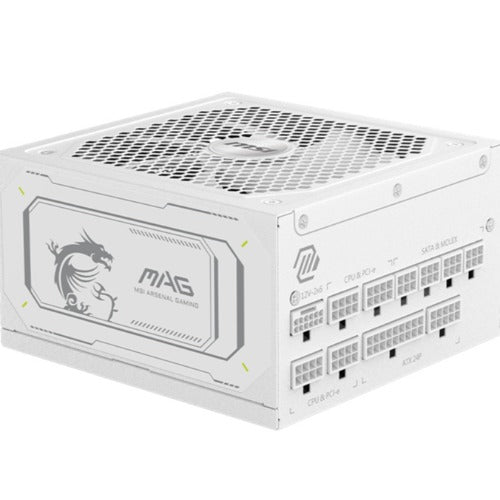

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

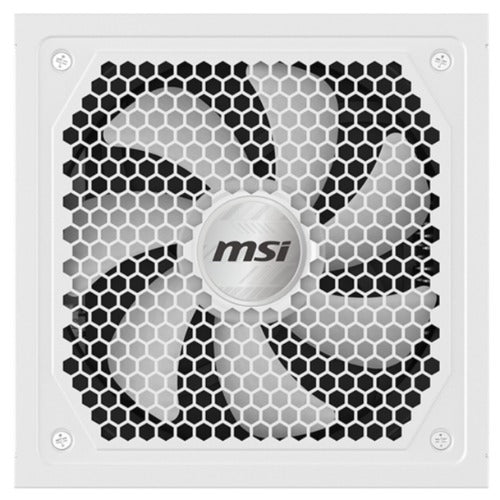

FLUID DYNAMIC BEARING
The power supply’s fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.

Half bridge LLC + SR + DC/DC
A half-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.

SPECIFICATIONS:

Efficiency Rating
80 PLUS Gold (up to 90%)

Modular
Yes (fully modular)

Fan Size
135 mm

Fan Bearing
Fluid Dynamic Bearing

Dimensions (DxWxH)
150 x 150 x 86 mm

PFC Type
Active PFC

Input Voltage Range
100-240V~

Power Watt
1000W

Power Excursion
2000W (*up to 200% of the PSU's rated power for 100μs)

Input Frequency Range
50-60Hz

Protection
OCP / OVP / OPP / OTP / SCP / UVP

ATX (24 pin)
1

EPS (4+4 pin)
2

PCI-E 5.1 (16 pin)
1 (600W)

PCI-E (6+2 pin)
4

SATA (15 pin)
12

PERIPHERAL (4 pin)
4

FDD (4 pin)
1
