• 750W 80+ Gold Efficiency
• ATX 3.1 Certified
• PCIe 5.0 16-Pin Connector
• Fully Modular Design
• Extensive Connectivity
• 120mm FDB Fan
• Advanced Protection Features
• High Compatibility ATX Form Factor
• Stable Power Output
• Bulk/Smart Buy Variant

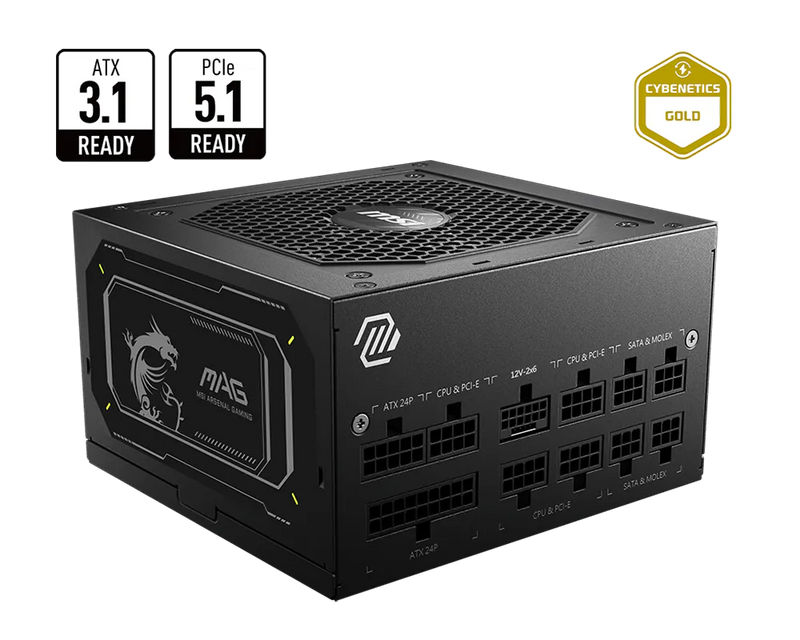

ATX 3.1 Ready
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

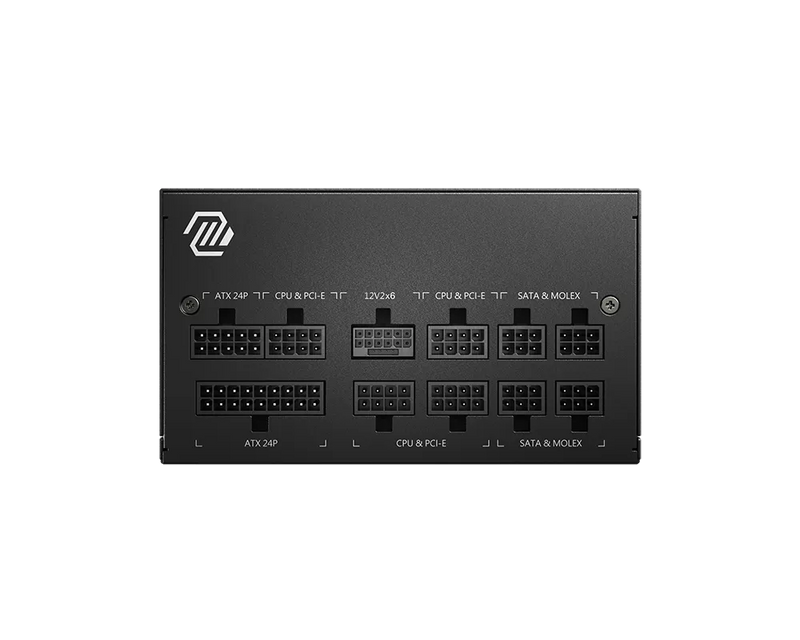

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

DC to DC & Full bridge
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.

SPECIFICATIONS

Efficiency Rating: 80 PLUS Gold (up to 90%)
Modular: Yes (full modular)

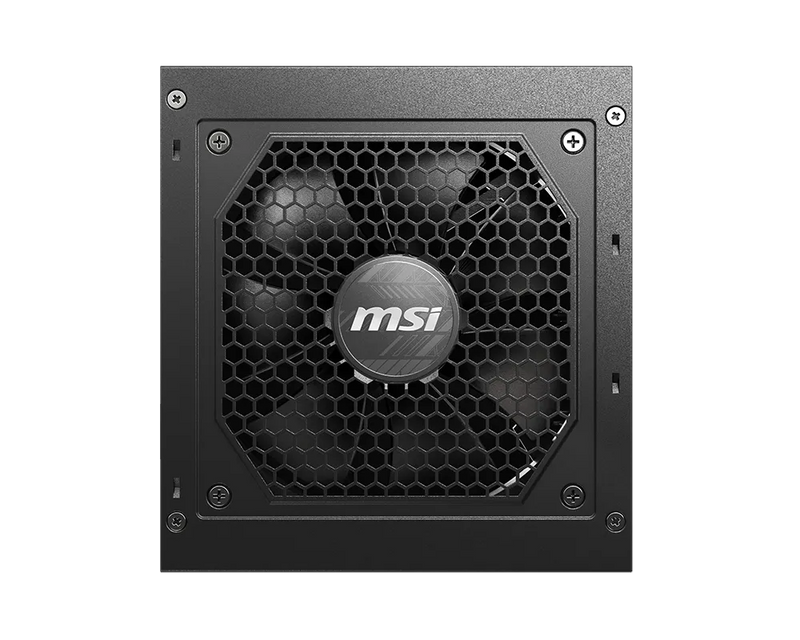

Fan Size: 120 mm
Fan Bearing: Fluid Dynamic Bearing
Dimensions (DxWxH): 140 x 150 x 86 mm
PFC Type: Active PFC
Input Voltage Range: 100~240 VAC
Power Watt: 750W
Power Excursion: 1500W (*up to 200% of the PSU's rated power for 100μs)
Input Frequency Range: 47-63Hz
Protection: OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin): 1
EPS (4+4 pin): 2
PCI-E 5.0 (16 pin): 1 (450W)
PCI-E (6+2 pin): 3
SATA (15 pin): 8
PERIPHERAL (4 pin): 4
FDD (4 pin): 1
