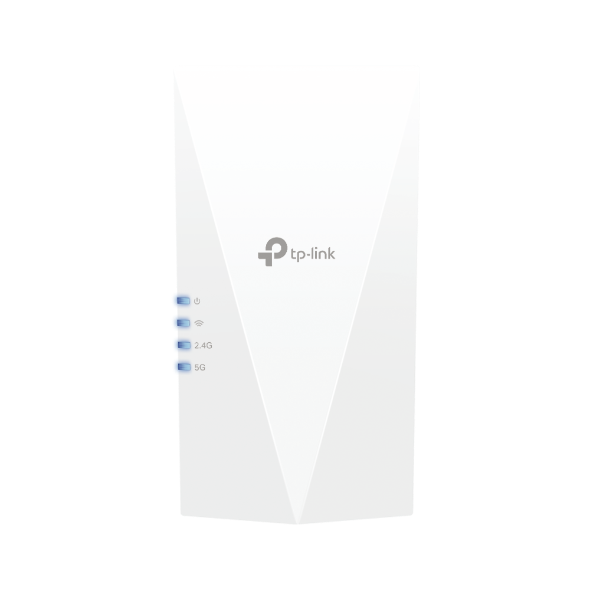

TP-LINK RE500X AX1500 WI-FI RANGE EXTENDER, WI-FI 6, GbE, 3YR WTY - RE500X
- The RE500X is equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, higher capacities and less network congestion.
- This extender forms a mesh network in conjunction with a TP-Link OneMesh™ router to give you seamless WiFi coverage throughout your home.
- The Gigabit network port enables faster wired connections to smart TVs, computers and game consoles. Access point mode is also possible via this connection, which allows you to expand your wired network with WLAN
- Smart Signal Light - Helps determine the best location for optimal Wi-Fi coverage by displaying signal strength at the current location
- TP-LINK Tether App - Easily access and manage your network with any iOS or Android mobile device
- Ultimate Compatibility - Extends the range of any Wi-Fi router or wireless access point
4 high performance amplifiers, we have you covered
Enjoy 4K streaming and gaming in any room thanks to the RE500X's 4 high-performance amplifiers. Whether you're sharing a pad with friends or living in your forever home, RE500X sends powerful signals to those hard-to-cover areas.
OneMesh™
roaming redefined
Stop looking for full bars. OneMesh™ is an easy way to form a mesh network with a single Wi-Fi name for seamless coverage throughout the home. Simply connect RE500X to a OneMesh™ router. 3
DIY WiFi
Every home is different. For this reason, our AX WLAN repeater offers you a flexible selection of options to individually create your own high-speed WLAN.
ntegrated
access point mode
RE500X is more than a wireless WiFi repeater. Simply plug an Ethernet cable into the Ethernet port and easily turn your wired internet connection into a 2×2 MU-MIMO dual-band wireless access point.
1. The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.
2. The use of MU-MIMO requires clients to also support MU-MIMO.
3. Smart Roaming is designed for devices that support the 802.11k/v standard.
| HARDWARE FEATURES |
| ports | 1 Gigabit Ethernet port |
| button | WPS button, reset button |
| Input power | 100-240V~50/60Hz |
| power consumption | 10W |
| Dimensions (W*D*H) | 3.1×1.4×5.9 in. (78×36×149 mm) |
| antenna | 2 internal antennas |
| WIFI FEATURES |
| WiFi standards | IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz |
| frequency | 2.4GHz and 5GHz |
| Signal rate | 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz |
| Working modes | Range extender/access point |
| Receiver sensitivity |
5GHz:
11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm, 11ac HT40
MCS9: -66dBm
11ac HT80 MCS0: -87d Bm,
11ac HT80 MCS9: -62dBm
2.4GHz:
11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm
|
| WiFi features |
Enable/Disable Wireless Radio
DFS (the latest firmware and hardware version is required)
Access Control
LED Control
Power Schedule
Wi-Fi Coverage
|
| WiFi security | 64/128-bit WEP, WPA/WPA2-PSK encryptions |
| transmission power | CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm |
