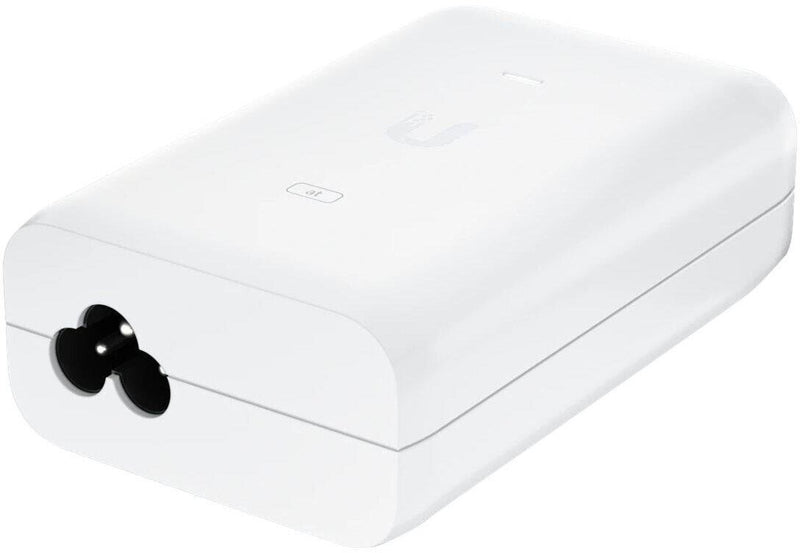

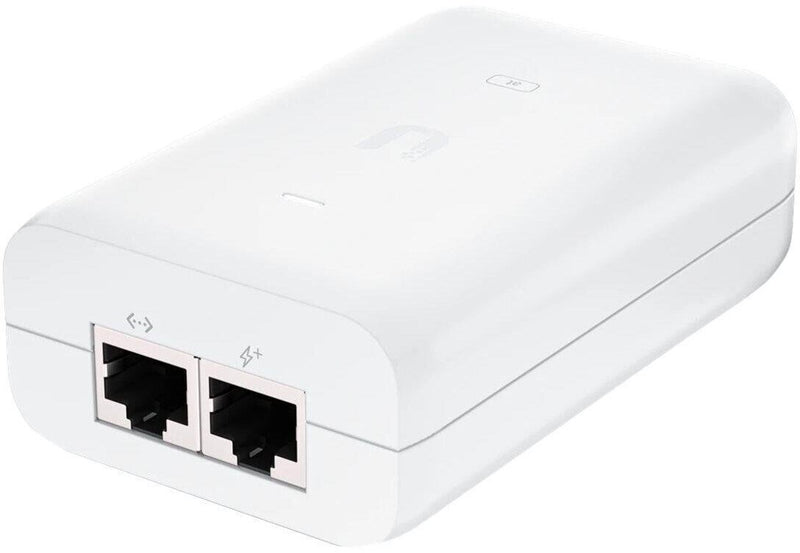

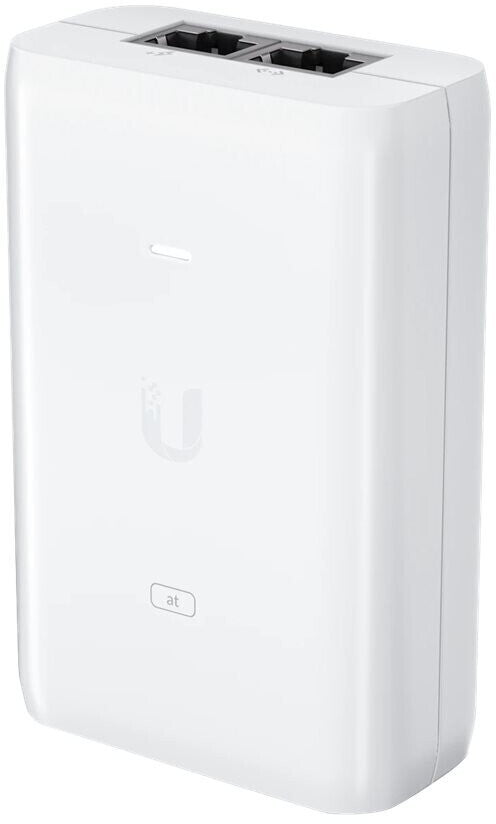

Ubiquiti PoE+ Adapter, 30W of PoE+, RJ45 Data Input, AC Cable
U-POE-at
Ubiquiti PoE+ Adapter, 30W of PoE+, RJ45 Data Input, AC Cable - U-POE-at
Ubiquiti POE Adaptor, 802.3AT, 30W Suitable For U6 AP
Ubiquiti POE Adaptor, 802.3AT, 30W Suitable For U6 AP - white
Ubiquiti PoE+ Adapter, 30W of PoE+, RJ45 Data Input, AC Cable
U-POE-at
Ubiquiti PoE+ Adapter, 30W of PoE+, RJ45 Data Input, AC Cable - U-POE-at
Ubiquiti POE Adaptor, 802.3AT, 30W Suitable For U6 AP
Ubiquiti POE Adaptor, 802.3AT, 30W Suitable For U6 AP - white

Ubiquiti PoE+ Adapter, 30W of PoE+, RJ45 Data Input, AC Cable

$35.00 - $35.00
$35.00
$35.00 - $35.00
$35.00
Availability:
Only 1 left!
SKU U-POE-at
by LENOVO

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

Warranty information

2 Years Manufacturer's Warranty

Ubiquiti PoE+ Adapter, 30W of PoE+, RJ45 Data Input, AC Cable



  • Delivers up to 30W of PoE+
  • Compatible with the U6 LR, U6 Pro, and other PoE+ devices
  • Surge, peak pulse, and overcurrent protection
  • AC cable with earth ground LED indicator for status monitoring



Technical Specification


Model U-POE-at
Dimensions 93 x 62 x 35 mm (3.66 x 2.44 x 1.38")
Weight 156 g (5.5 oz)
Output voltage 48V DC @ 0.65A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability No
Reset button No
Rated voltage 100—240V AC @ 50/60Hz
Input current 0.75A Max.
Inrush current <100A peak at 26_
Efficiency 87%
Output ripple 1% max.
Switching frequency 70 kHz max.
Line regulation ≤ 3%
Load regulation ≤ 5%
2-pair powering Pins 4, 5 (+) and 7, 8 (-)
4-pair powering No
AC connector IEC-320 C6
Data In / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pF data
Response time <1 ns
Ambient operating temperature 0 to 40° C (32 to 104° F)
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC, UL
