TP-LINK WIRELESS OUTDOOR CPE, 5GHZ, 150MPS, 23DBI, 3YR WTY - CPE605
- Up to 150Mbps on 5GHz wireless data rates
- 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation

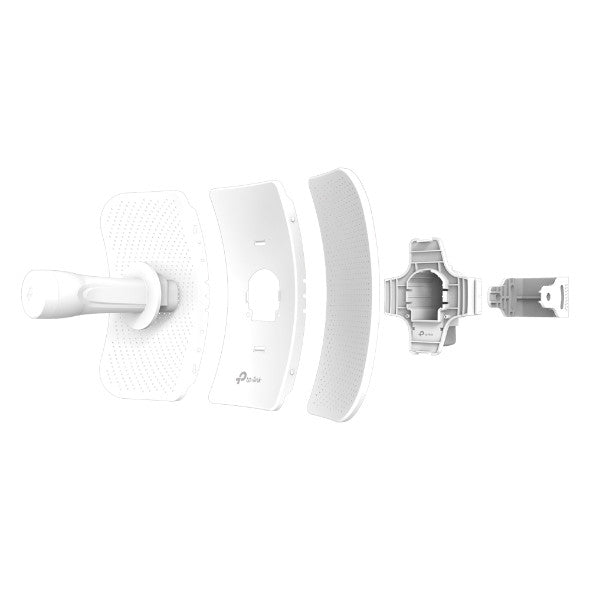

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation

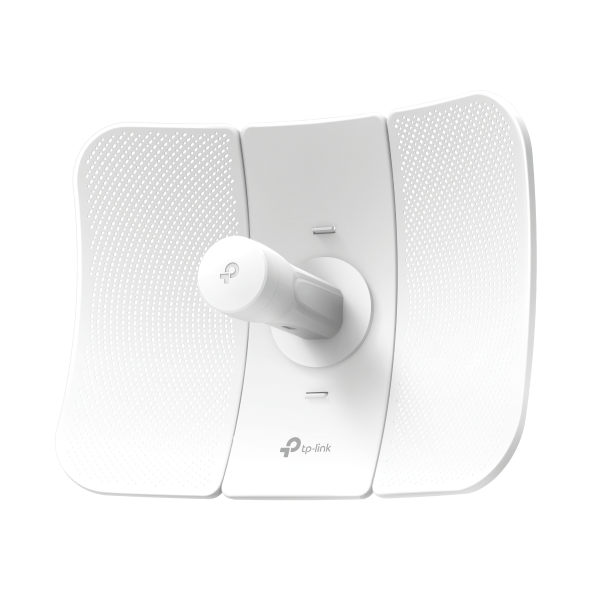

Professional-standard 23dBi Directional
Antenna for Long-range Wireless Transmission
With 23dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE605 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 150Mbps 23dBi Outdoor CPE605 an ideal choice and cost-effective solution for outdoor wireless networking applications.
Compact and
Lightweight Packaging
Small and lightweight boxes
benefit shipping, logistics and retail.
Pharos Control – Centralized Management System
CPE605 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface-PharOS-provides an alternative management method, and allows professionals to access more detailed configurations.
| HARDWARE FEATURES |
| Processor | Qualcomm 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM,8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button |
| Power Supply | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC |
| Dimensions ( W x D x H ) | 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.) |
| Antenna Gain | 23dBi |
| Antenna Beamwidth | 7°(Azimuth), 10°(Elevation) |
| Protection | 15KV ESD Protection
6KV Lightning Protection |
| Enclosure | Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design |
| WIRELESS FEATURES |
| Wireless Standards | IEEE 802.11a/n |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 150Mbps (40MHz,Dynamic)
Up to 72.2Mbps (20MHz,Dynamic)
Up to 36.1Mbps (10MHz,Dynamic)
Up to 18.05Mbps (5MHz,Dynamic) |
| Frequency | 5.15~5.85GHz |
| Transmit Power | Max. 23dBm (Adjustable power by 1dBm) |
