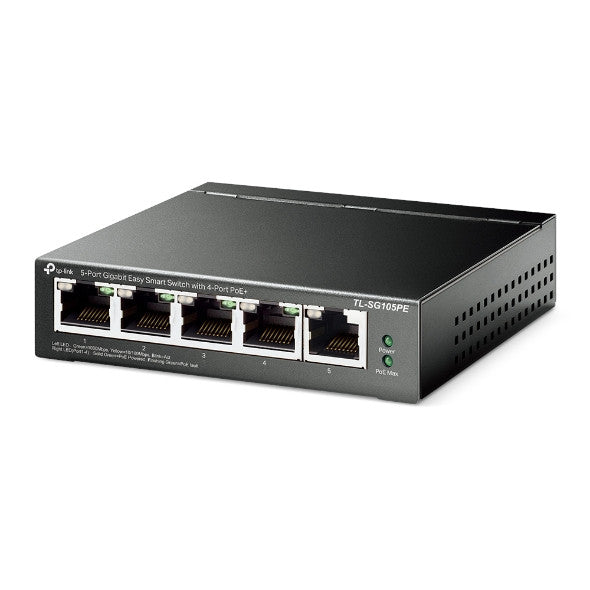

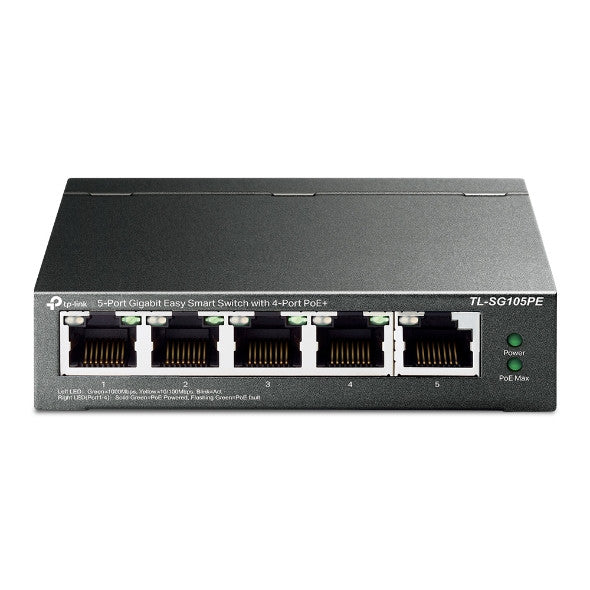

TP LINK TL-SG105PE, 5-PORT GIGABIT EASY SMART SWITCH WITH 4-PORT POE+, 5 YEARS WARRANTY
TP LINK TL-SG105PE, 5-PORT GIGABIT EASY SMART SWITCH WITH 4-PORT POE+, 5 YEARS WARRANTY
TP LINK TL-SG105PE, 5-PORT GIGABIT EASY SMART SWITCH WITH 4-PORT POE+, 5 YEARS WARRANTY

TP LINK TL-SG105PE, 5-PORT GIGABIT EASY SMART SWITCH WITH 4-PORT POE+, 5 YEARS WARRANTY

$75.60 - $75.60
$75.60
$75.60 - $75.60
$75.60
Availability:
in stock, ready to be shipped
SKU TL-SG105PE
by TP-Link

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

Warranty information

5 Years Manufacturer's Warranty

TP LINK TL-SG105PE, 5-PORT GIGABIT EASY SMART SWITCH WITH 4-PORT POE+, 5 YEARS WARRANTY

The TL-SG105PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.



  • Five 10/100/1000Mbps RJ45 ports
  • Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
  • Supports PoE power up to 65 W for all PoE ports*
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise



HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless

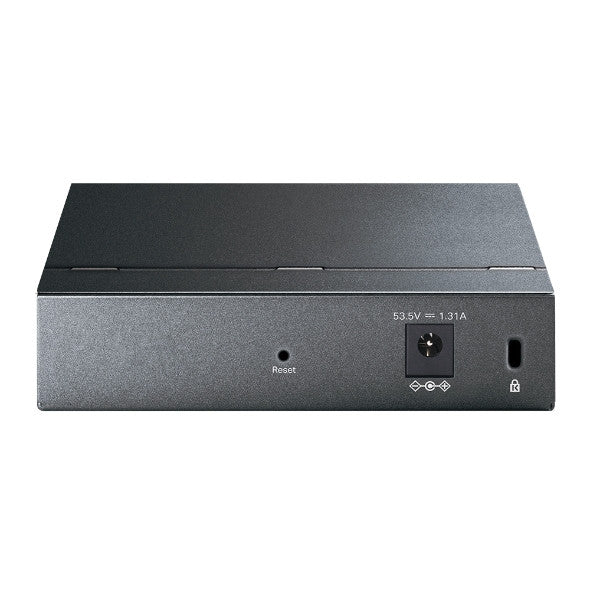

Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A)
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max Power Consumption 4.52 W (220V/50Hz with no PD connected)
75.16 W (220V/50Hz with 65 W PD connected)
Max Heat Dissipation 15.41 BTU/h (with no PD connected)
256.30 BTU/h (with 65 W PD connected)
