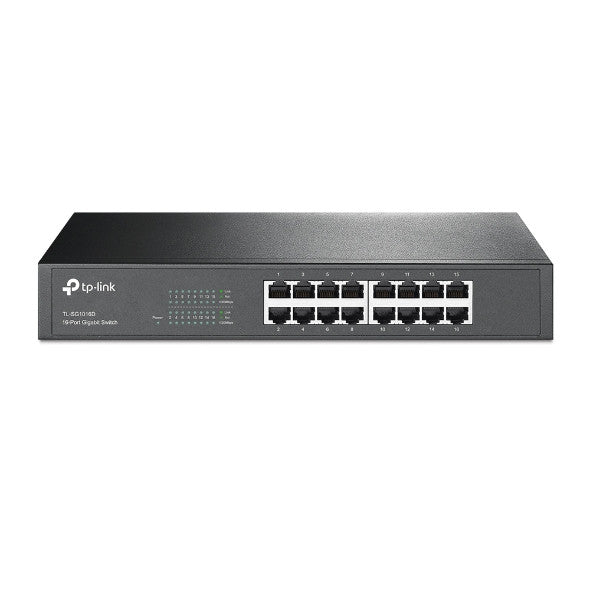

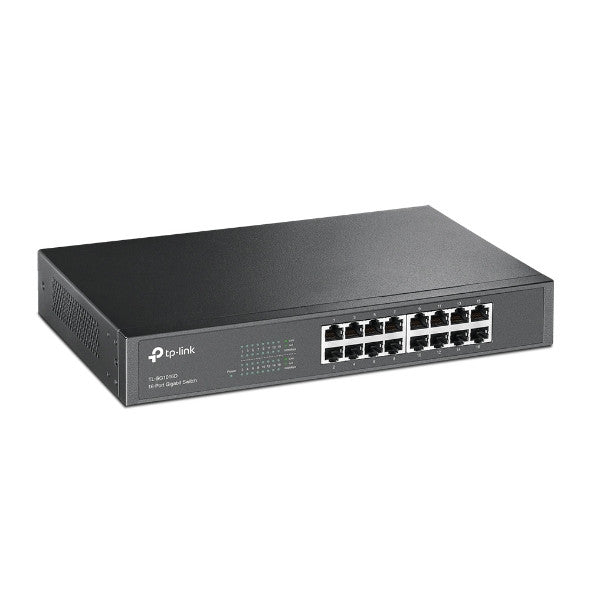

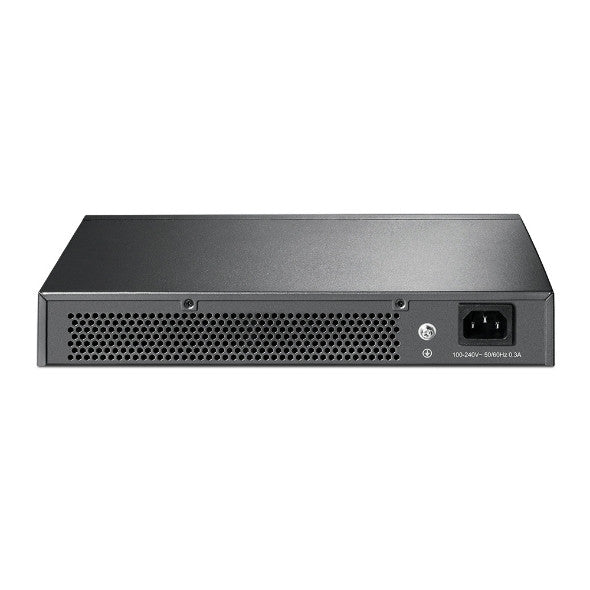

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra������ffic congestion and make The TL-SG1016D work reliably. It���������s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

������

• 16 10/100/1000Mbps ports
• Innovative energy-efficient technology saves power consumption
• Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
<"text-align: center;">

������"width: 100%; border-style: solid; margin-left: auto; margin-right: auto;" border="1"> HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100-240VAC, 50/60Hz Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) Max Power Consumption 9.95W(220V/50Hz) Max Heat Dissipation 33.93BTU/h

PERFORMANCE
Switching Capacity	32Gbps
Packet Forwarding Rate	23.8Mpps
MAC Address Table	8K
Jumbo Frame	10KB
Green Technology	Yes
Transfer Method	Store-and-Forward

OTHERS
Certification	FCC, CE, RoHs
Package Contents	16-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet
Environment	Operating Temperature: 0���������������������������~40��������������������������� (32�������������������������ï¿
