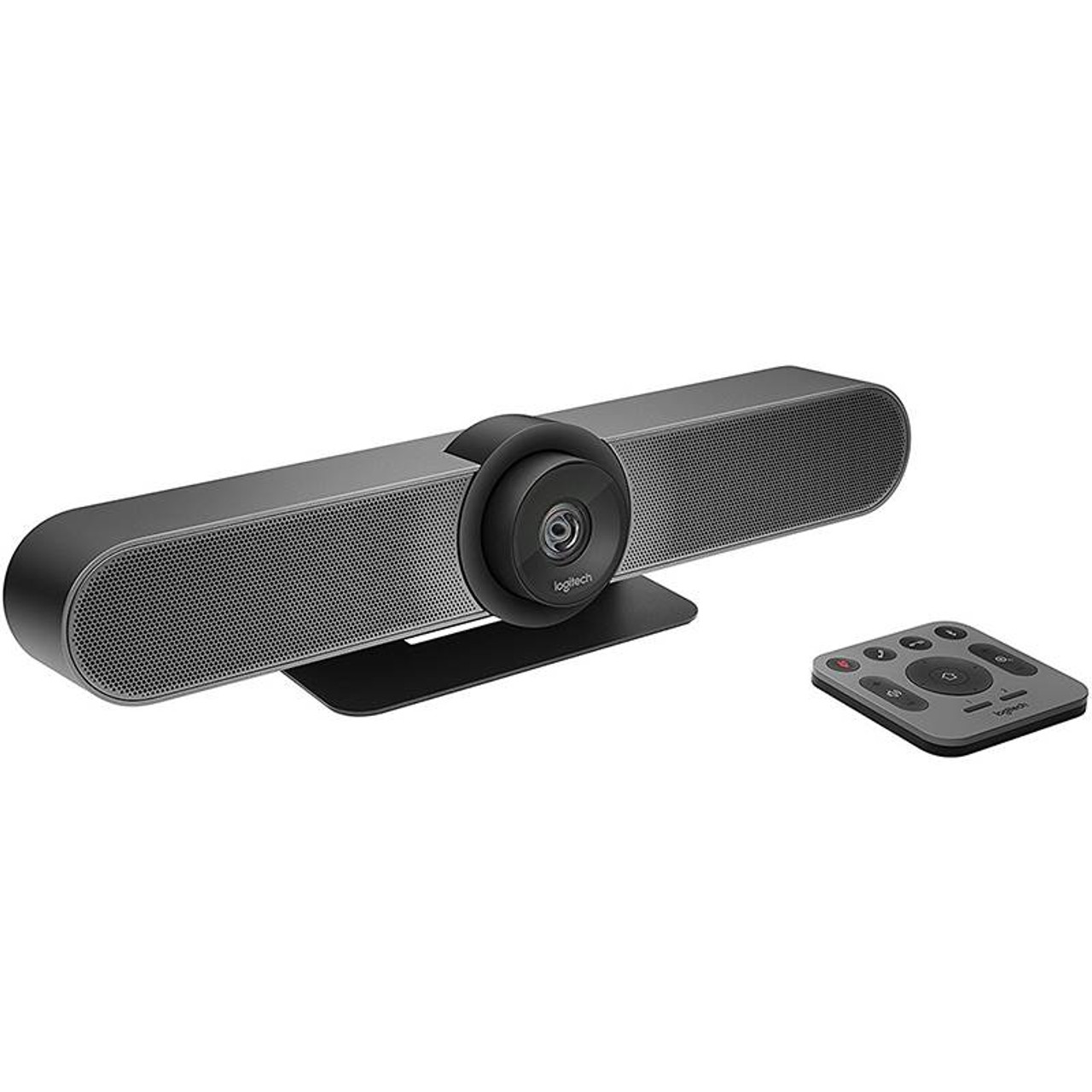

LOGITECH MEETUP CONFERENCE CAMERA 4K ULTRA HD BLUETOOTH WIRELESS TECHNOLOGY- 960-001101

SIMPLE TO MANAGE
with Logitech Sync Device Management
Monitor and manage your meeting room devices from one single platform with Logitech Sync. Plus, get business insights into how your rooms are being used.

ROOM SOLUTIONS WITH MEETUP
Get everything you need to build out small rooms for video meetings, including Logitech MeetUp, a compute platform (such as a mini PC, Meet compute system, or Logitech RoomMate), room-optimized software, and the Logitech Tap touch controller.

TECHNICAL SPECIFICATIONS

CAMERA

Custom Logitech lens with 5x HD zoom and motorized pan (+/- 25°) and tilt (+/- 15°)

Field of view: Diagonal:120°, Horizontal: 113°, Vertical: 80.7°

Total Room Coverage (field of view + pan and tilt): 163° wide x 110° tall

3 camera position presets

RightSight auto-framing (requires Windows 10 64-bit; macOS coming soon)

VIDEO PERFORMANCE:

• 4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable)

• 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps)

• 720p HD video calling (up to 1280 x 720 pixels @ 30 fps)

MICROPHONE

Integrated microphone with 3 beamforming elements

Pickup Range:

• MeetUp: 4 meters

• With optional Expansion Mic: 5 meters

Sensitivity: -27dB

Microphone frequency response: 90Hz - 16kHz for full voice reproduction and high intelligibility without noise

Beamforming performance: Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction

AEC (Acoustic echo cancellation)

VAD (Voice activity detector)

Microphone background noise suppression

Microphone date rate: 32 kHz sampling rate

Recommended # of participants: 6

Recommended # of participants with expansion mic: 8

SPEAKER

Volume adjustable to 95 dB SPL at 1/2 meter peak

Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter

Distortion: 200 Hz?300Hz < 3%, 3000 Hz?10KHz < 1%

Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces

GENERAL

Bluetooth® wireless technology

RF remote control

Integrated table/wall mount; optional TV mount available

Kensington security slot

RIGHTSENSE TECHNOLOGIES

RIGHTLIGHT

Low-light compensation

Video noise reduction

Low-light saturation optimization

RIGHTSIGHT

Human figure detection

Auto-frame participants at meeting start

Auto-frame participants on-demand

Auto-reframe when participants enter, leave, or change positions

RIGHTSOUND

Machine learning AI trained to distinguish human speech from other sounds

AEC (Acoustic Echo Cancellation)

VAD (Voice Activity Detector)

Background noise suppression

Auto-level loud and soft voices

Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

Anti-vibration enclosure
