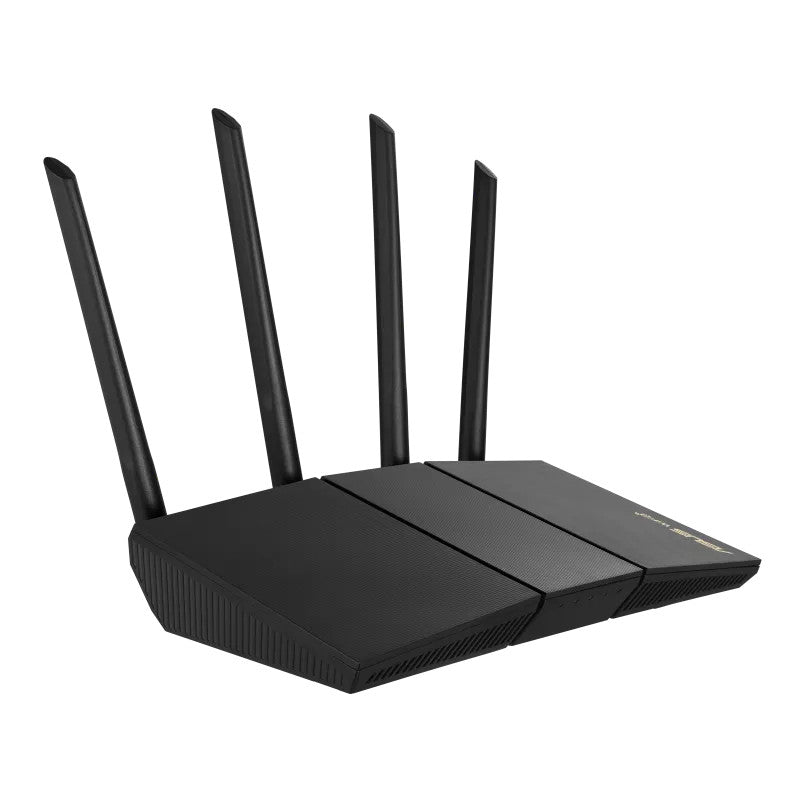

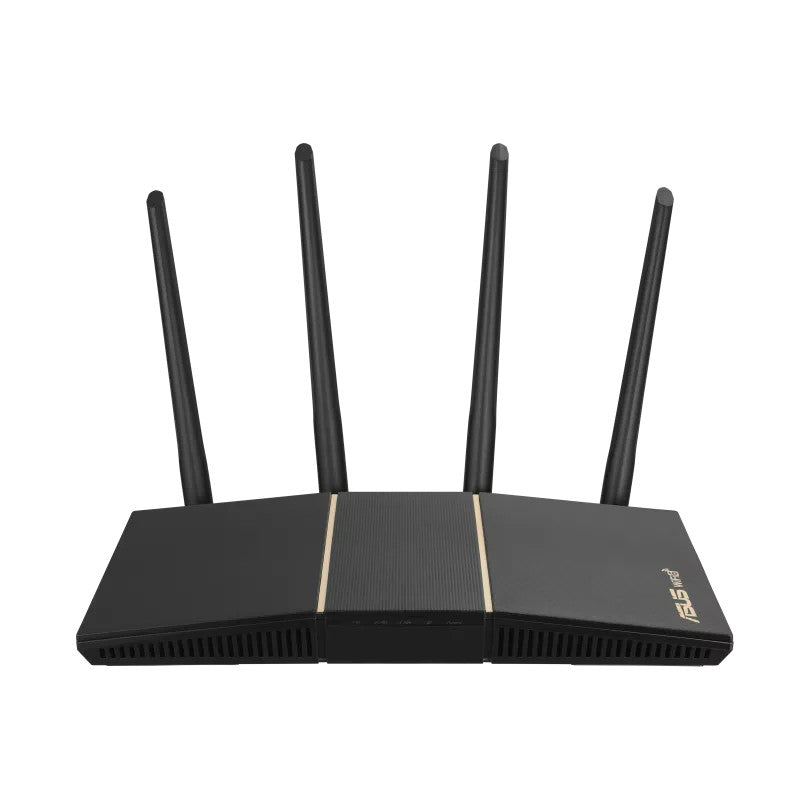

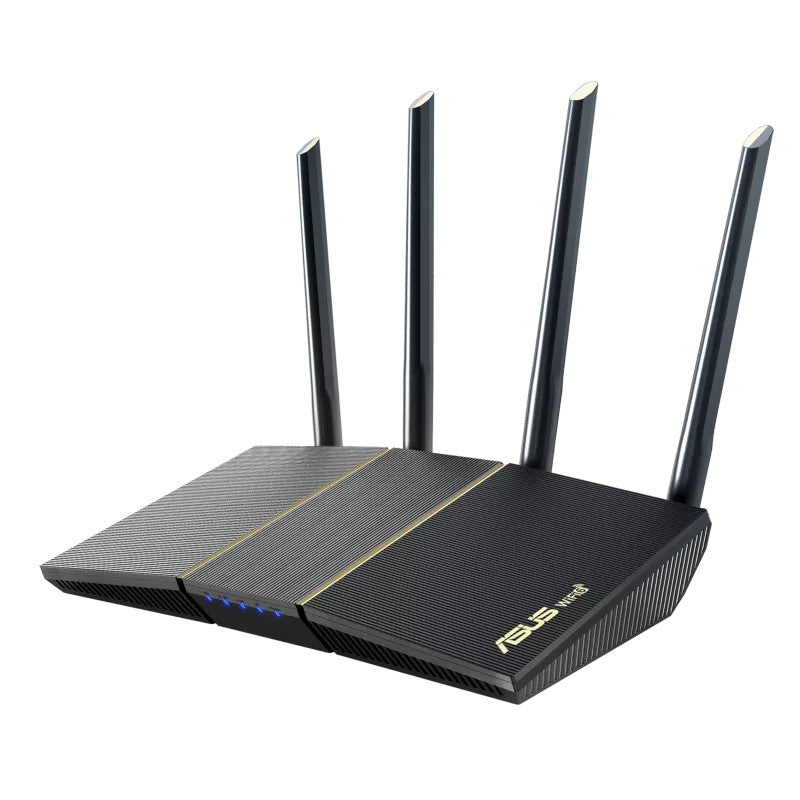

ASUS AX3000 WIRELESS ROUTER, DUAL BAND, GbE(4), ANT(4), 3YR WTY
-
New-Gen WiFi Standard – Supporting 802.11ax WiFi standard for better efficiency and throughput.
-
Ultra-fast WiFi Speed – RT-AX57 supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band.
-
Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicating with multiple devices simultaneously.
-
Commercial-grade Security Anywhere – Protect your home network with AiProtection Classic, powered by Trend Micro™. And when away from home, ASUS Instant Guard gives you a one-click secure VPN.
-
Easy Extendable Network – Enjoy seamless roaming with rich, advanced features by adding any AiMesh-compatible router.
BSS Coloring Boosts Connection Efficiency
WiFi 6 includes a new feature called BSS Coloring that improves WiFi connection efficiency even in crowded environments. When two neighboring routers send traffic on the same channel, your router has to wait until the channel is free. With BSS Coloring, your WiFi 6 router identifies its data with a unique channel tag ('color') that's different from neighboring networks. Your WiFi 6 router can then ignore other-colored signals on the channel and send data immediately.* This greatly reduces router waiting times and boosts network efficiency.
The Latest WPA3 Network Security
The next generation of WiFi security, bringing new capabilities to enhance WiFi protections in personal networks. Building on the widespread adoption of WPA2 over more than a decade, WPA3 adds new features to simplify WiFi security, enable more robust authentication, and deliver increased cryptographic strength for highly sensitive data markets.
Make the Internet a Safer Place for Everyone
AiProtection Classic with auto update is free for life. It can block malicious websites and detect infected devices to give you total peace of mind all the time.
More Privacy, Anywhere
Free public WiFi is rarely secure. Thanks to Instant Guard VPN technology, you can surf on public WiFi network safely through RT-AX57 with one-click setup. In addition, it’s free!
Flexible and Scalable Wireless Networking
If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 1734 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
1.7GHz quad-core processor
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Access Point, AiMesh Node, Media Bridge, Repeater, Router

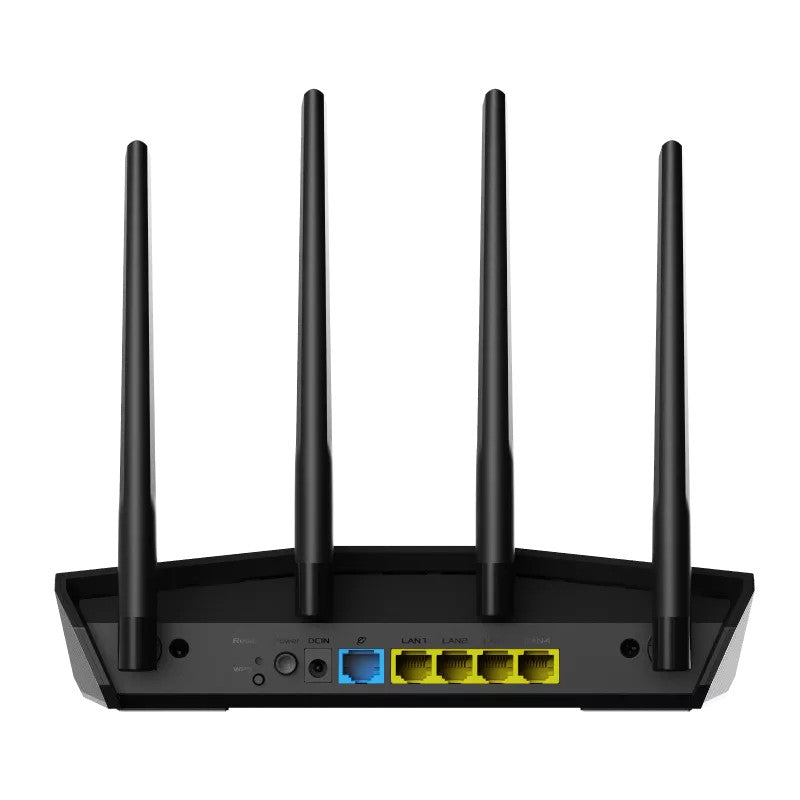

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
WPS Button, Reset Button, Power Switch
Power x 1
2.4G x 1
5G x 1
LAN x 1
WAN x 1
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current
230 x 134 x 56 mm (WxDxH)
AiMesh
• Primary AiMesh Router
• AiMesh Node
"Allow you to block access to unwanted websites and apps."
Customized Internet Schedule
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
SSH
Firewall
• Malicious Site Blocking
• Infected Device Prevention and Blocking
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
Port triggering
DMZ
DDNS
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)
UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
ASUS AX3000 WIRELESS ROUTER, DUAL BAND, GbE(4), ANT(4), 3YR WTY - 90IG06Z0-MFAC00
