- Intel Core Ultra 7 255H Processor
- NVIDIA RTX 1000 8GB Professional Graphics
- 32GB DDR5 RAM
- 1TB PCIe NVMe SSD
- 16 Inch WUXGA Display
- Full HD IR Camera
- Windows 11 Pro

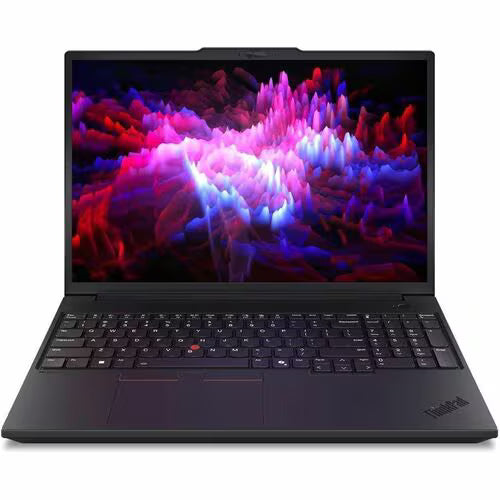

The Lenovo ThinkPad P16v Gen 3 Workstation combines Intel Core Ultra 7 performance with NVIDIA RTX graphics, delivering reliable power for professional workflows. With 32GB RAM and 1TB SSD, it is designed for users who need performance, efficiency, and portability.
SPECIFICATIONS
Processor Intel® Core Ultra 7 255H, 16C (6P + 8E + 2LPE) / 16T, Max Turbo up to 5.1GHz, 24MB
AI PC Category AI-Ready Workstations
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics NVIDIA® RTX PRO 1000 Blackwell Generation 8GB GDDR7 Laptop GPU
Chipset Intel® SoC Platform
Memory 2x 16GB SODIMM DDR5-5600 Non-ECC
Memory Slots Two DDR5 SODIMM / CSODIMM slots, dual-channel capable
Max Memory Up to 96GB (2x 48GB DDR5 CSODIMM)
Storage 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot Two M.2 2280 PCIe® 4.0 x4 slots
Max Storage Support Up to two M.2 2280 Gen 5 Performance SSD; up to 4TB total, 2TB each
RAID Preset None
Card Reader SD Express 7.0 Card Reader
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio™
Microphone 2x, Array
Camera 5.0MP + IR with Privacy Shutter and Human Presence Detection
Battery 90Wh
Power Adapter 140W USB-C® GaN (3-pin)
DESIGN
Display 16" WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC, 60Hz, TÜV Low Blue Light
Touchscreen None
Screen-to-Body Ratio 87.70%
Color Calibration AICCP Color Calibration
Pen Pen Not Supported
Keyboard Backlit, English
Dimensions (WxDxH) 361.5 x 248.6 x 12.8 / 19.55 (front / rear), 26.3 (maximum) mm 14.23 x 9.79 x 0.50 / 0.77 (front / rear), 1.04 (maximum) inches
Weight Around 2.1 kg (4.6 lbs)
Case Color Black
Case Material Aluminium (Top), PC-ABS (Bottom)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 7 BE201, 802.11be 2x2 + BT5.4
WWAN WWAN Upgradable to 5G
SIM Card None
Ethernet 100/1000M (RJ-45)
NFC None
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x Thunderbolt™ 4, with USB PD 3.1, 140W input / 15W output
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (GbE RJ-45)
1x SD Express 7.0 card reader
1x Security keyhole
Optional Ports (configured) 1x Nano-SIM Card Slot
Docking Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad P16v Gen 3 (Intel)
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0 Enabled
Physical Locks Kensington® Nano Security Slot, 2.5 x 6 mm
Smart Card Reader None
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Other Security Bottom cover tamper detection
Camera privacy shutter
Ultrasonic Human Presence Detection for IR camera
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Courier or Carry-in with 1-year Battery
Included Upgrade 3Y Premier Support Upgrade from 3Y Courier/Carry-in
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
ISV Certifications Please visit ISV certifications for Lenovo® Workstations
Green Certifications ENERGY STAR® 9.0
EPEAT™ Gold Registered
RoHS compliant
TCO Certified, generation 10
Mil-Spec Test MIL-STD-810H military test passed
