- 8-Port Fast Ethernet Switch
- 4x PoE Ports
- 41W Total PoE Budget
- IEEE 802.3af PoE Support
- 10/100Mbps Ethernet Ports
- Plug-and-Play Installation
- Desktop Switch Design
- Reliable Power and Data Delivery
- Fanless Operation
- Ideal for IP Cameras and Access Points

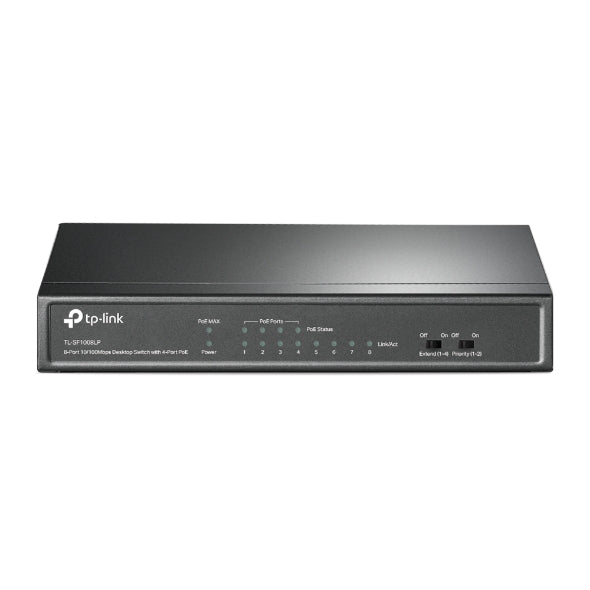

Professional Fast Ethernet Switch with 4 PoE Ports

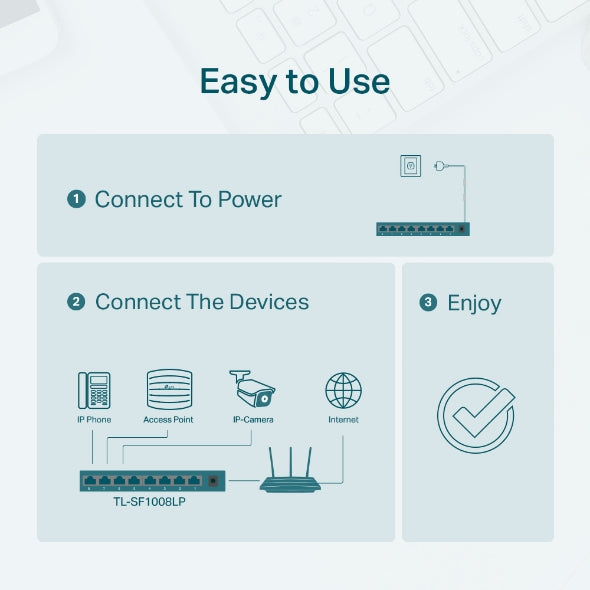

Plug and Play, with PoE Transmission for Surveillance up to 250 m

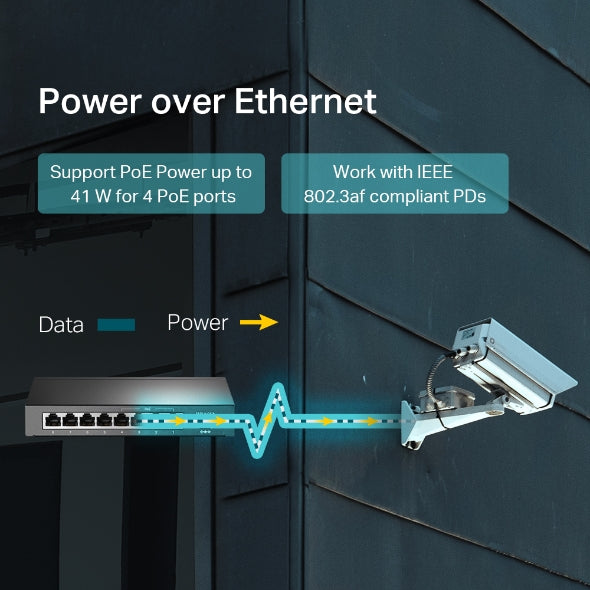

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

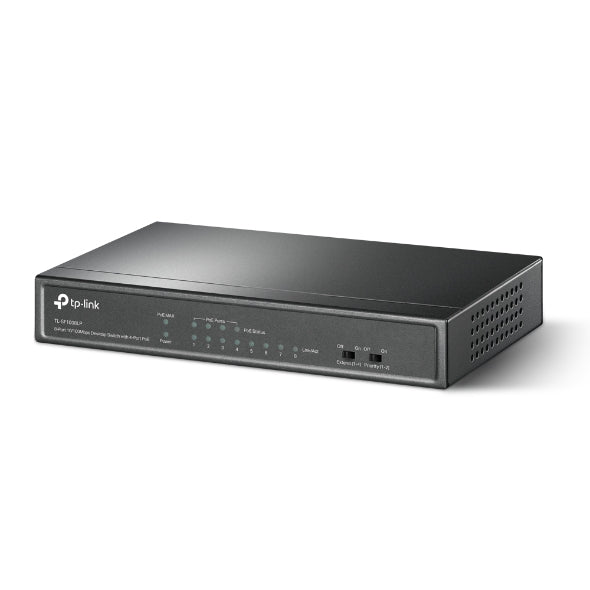

Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
|
|
| Interface |
• 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
• AUTO Negotiation
• AUTO MDI/MDIX |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity |
Fanless |
| Physical Security Lock |
Yes |
| External Power Supply |
External Power Adapter (Output: 53.5 V DC / 0.81 A) |
| Packet Forwarding Rate |
1.1904 Mpps |
| PoE Ports (RJ45) |
• Standard: 802.3 af compliant
• PoE Ports: Ports 1–4
• Power Supply: 41 W |
| Backbound Bandwidth |
1.6 Gbps |
| Mac Address Table |
2K |
| Jumbo Frame |
2 KB |
| Switching Capacity |
1.6 Gbps |
| Dimensions ( W x D x H ) |
6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Max. Power Consumption |
• 2.2 W (220 V/ 50 Hz. no PD connected)
• 47.1 W (220 V/ 50 Hz. with 41 W PD connected) |
| Max. Heat Dissipation |
• 7.5 BTU/h(no PD connected)
• 160.61 BTU/h(with 41 W PD connected) |
|
SOFTWARE FEATURES
|
| Advanced Features |
• Compatible With IEEE 802.3af Compliant PDs
• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
|
| Transmission Method |
Store-And-Forward |
|
OTHERS
|
| Certification |
FCC, CE, RoHS |
| Package Content |
• TL-SF1008LP
• Power Adapter
• Installation Guide |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
