TP-LINK 16-PORT MANAGED GIGABIT RACK SWITCH,10/100 RJ45 POE+(16),GbE(2),SFP(1),5YR WTY - TL-SL1218P

Brand :

(No reviews yet) Write a Review
$235.70
SKU:
TL-SL1218P
UPC:
6935364052829
Availability:
Ships within 24 hours

TP-LINK 16-PORT MANAGED GIGABIT RACK SWITCH,10/100 RJ45 POE+(16),GbE(2),SFP(1),5YR WTY - TL-SL1218P

  • 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.
  • High PoE power budget with up to 30W for each PoE port and 150W for all PoE ports. *
  • Up to 250 m data and power transmission in extended mode specifically for surveillance systems.**
  • Priority mode provides prioritized transmission for ports 1-2 to ensure the quality of important applications
  • Isolation Mode enables one-click isolation of client traffic for greater security and performance.
  • Easy to use, no configuration and installation required.

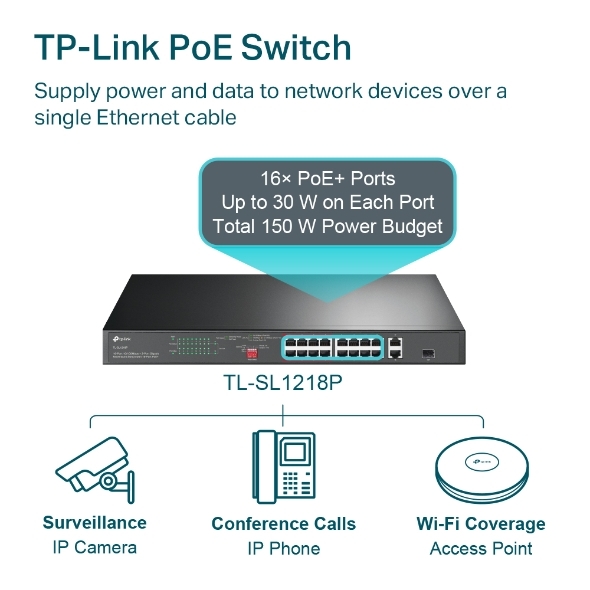

Dedicated 16-port PoE+ switch (150W budget) for numerous applications
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total PoE power budget of 150W* for the 16× PoE+ ports offers a wide range of applications such as: B. Surveillance, offices, dormitories and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Superior video quality guaranteed
The quality of sensitive applications such as video surveillance in critical business areas is guaranteed by offering higher priority options for ports 1 to 8 when one-touch priority mode is enabled.

Isolation mode button
One-click traffic separation for ports 1-16
With one click, isolation mode easily splits traffic for ports 1-16 to avoid snooping and tampering. In this way, the switch can isolate broadcast storm, improving LAN security and data transmission.

Intelligent power management to avoid power overload
When your total power consumption exceeds 150W, Intelligent Power Management automatically cuts off power to lower priority ports to ensure power to high priority ports. This protects the device from power overload. It also automatically detects the required PoE power for your device and protects your non-PoE devices from damage.

Wide operating temperature with good heat dissipation
The sturdy metal housing and professional heat dissipation design ensure a reliable operating temperature (0-50°C).

connections
  • 16x 10/100Mbit/s RJ45 ports (with auto-tuning and auto-MDI/MDIX)

  • 2x 10/100/1000Mbit/s RJ45 ports (with auto-tuning and auto-MDI/MDIX)

  • 1x Combo Gigabit SFP port

Performance

Switching capacity 7.2 Gbit/s

MAC address table 8k

Cable

10BASE-T: Category 3, 4, 5 UTP cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: Category 5 or higher UTP cable (maximum 100m)

1000Base-T: Category 6 or higher UTP cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-FX: MMF, SMF

1000BASE-X: MMF, SMF

Standards and protocols

802.3af, 802.3at, 802.3x

management

unmanaged

Dimensions (L x W x H)

440x180x44mm

scope of delivery

TL-SL1218P

Power supply cable

installation Guide

Rack mounting kit

Rubber feet



TP-LINK 16-PORT MANAGED GIGABIT RACK SWITCH,10/100 RJ45 POE+(16),GbE(2),SFP(1),5YR WTY - TL-SL1218P

5 Years Manufacturer's Warranty
