TP-LINK 18-PORT UNMANAGED GIGABIT RACK SWITCH, GbE(2), POE+(16), SFP(2), 5YR WTY - TL-SG1218MP
Brand : TP-Link
- SKU:
- TL-SG1218MP
- UPC:
- 6935364072155
- Availability:
- Ships within 24 hours
TP-LINK 18-PORT UNMANAGED GIGABIT RACK SWITCH, GbE(2), POE+(16), SFP(2), 5YR WTY - TL-SG1218MP
- 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots

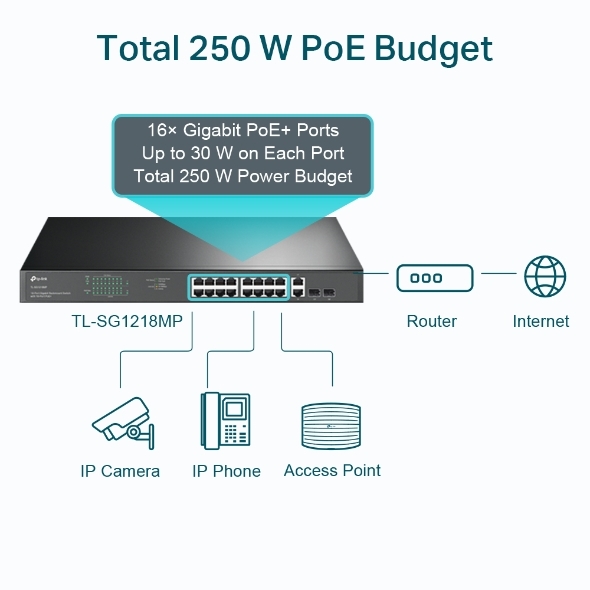

- High PoE power budget with up to 30W on each PoE port and 250W total *
- Works with IEEE 802.3af/at compatible PoE devices
- Plug & play without configuration
- 802.1p/DSCP QoS ensures the smooth transmission of latency-sensitive data transfers
- The sturdy metal housing and professional heat dissipation design ensure high operating temperature (0-50℃) with high reliability.
QoS for a delay-free network
Ensures smooth data transfer for latency-sensitive applications, such as B. Voice and video transmissions by determining the priority of data traffic based on Quality of Service (QoS).
Intelligent PoE supply prevents overvoltage
If the required PoE power exceeds 250W, the intelligent PoE supply intervenes and interrupts the supply to the port with the lowest priority. This means more PoE power is available to the remaining ports. This ensures the PoE supply to the ports with a higher priority and protects the switch from overvoltage.
Versatile uses
The TL-SG1218MP is fully compatible with PoE devices such as IP cameras, access points and IP phones. Non-PoE devices such as computers, printers and IPTVs are also supplied with gigabit connections.
| HARDWARE FEATURES | |
|---|---|
| Standards and protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| interface | • 16× PoE+ gigabit RJ45 ports • 2× gigabit non-PoE RJ45 ports • 2× combo gigabit SFP slots |
| Cable | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |
| Number of fans | 2 |
| Physical theft protection | Yes |
| Power supply | 100-240VAC, 50/60Hz |
| PoE+ ports | • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W |
| Dimensions (W*D*H) | 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) |
| Assembly | Rack mountable |
| Maximum power consumption | • 21.4 W (220/50 Hz. no PD connected) • 286.64 W (220/50 Hz. with 250 W PD connected) |
| Maximum heat output | • 72.97 BTU/h (no PD connected) • 977.44 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching capacity | 36Gbps |
| Packet forwarding rate | 26.78Mbps |
| MAC address table | 8K |
| Packet buffer memory | 4.1 Mbit |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • 802.1p/DHCP QoS • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| Jumbo frames | 10KB |
