TP-LINK WIRELESS ACCESS POINT,AX3000, GbE(4), POE, WALL MOUNT, 5YR WTY - EAP655-WALL
Brand : TP-Link
- SKU:
- EAP655-WALL
- UPC:
- 4897098683576
- Availability:
- Ships within 24 hours
TP-LINK WIRELESS ACCESS POINT,AX3000, GbE(4), POE, WALL MOUNT, 5YR WTY - EAP655-WALL
- Fast AX3000 Wi-Fi 6 speeds: Simultaneously 574 Mbit/s in 2.4 GHz and 2402 Mbit/s in 5 GHz results in 2976 Mbit/s WLAN speed.
- Greater network efficiency : Data is transmitted to more devices simultaneously with less delay.
- Complete Wi-Fi coverage in every room : Guarantee strong signals and corner-to-corner Wi-Fi coverage.
- Gigabit LAN : Wired devices can also be connected to 3 downlink Gigabit ports, one with PoE passthrough.
- Zentrales Cloud-Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network : Implement various authentication options equipped with easy-to-use Wi-Fi security technologies such as SMS login, Facebook Wi-Fi or with voucher code access.
- Easy Installation : Easy to install design, compatible with 86mm & EU standard junction boxes and 802.3af/at PoE support.

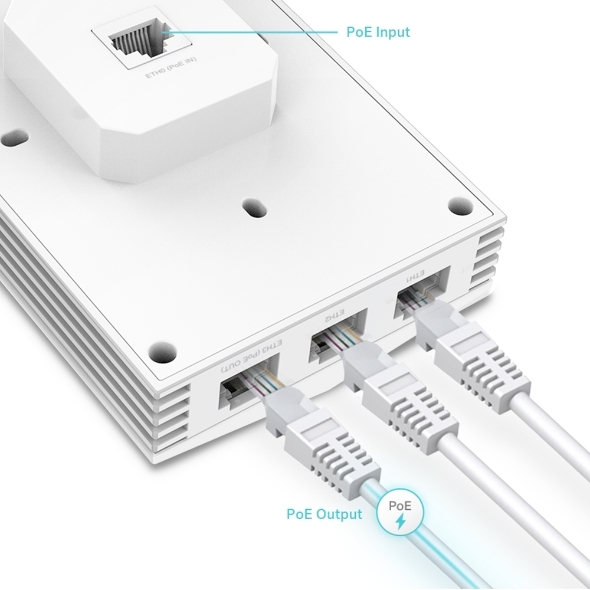

Integrated switch with 4 gigabit ports
Wired devices such as VoIP phones can be powered without additional power cables. The four data ports (1 uplink + 3 downlinks) transmit multi-gigabit data, allowing you to connect multiple devices to your gigabit network. One of the downlink ports provides PoE pass-through, eliminating the need for an additional power connection.
Fast, simplified installation
With an easy-to-install design, there is no need to involve anyone to install our EAP.
Easy management with the Omada app
Follow the configuration instructions in the Omada app to get set up in minutes. Omada allows you to configure settings, monitor network status, and manage endpoints from the comfort of your mobile device.
Grow your business with Facebook WiFi and SMS login
Captive portals (including SMS, Facebook WiFi, vouchers) and 802.1x authentication ensure authorized guests can access the network. Grow your business with a customized marketing site.
| HARDWARE FEATURES | |
|---|---|
| interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.) |
| Physical theft protection | No |
| Taste | Reset, LED |
| Power supply | 802.3af/at PoE |
| power consumption | US: 11.5 W |
| Dimensions | 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in) |
| Antenna | • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 5 dBi |
| Montage | Wall Plate Mounting (Kits included) |
| WIFI FEATURES | |
|---|---|
| Coverage | 50㎡(600 ft²)*** |
| Maximum Number of Wireless Clients | 100+ △ |
| Concurrent Clients | 100+ |
| WLAN-Standards | IEEE 802.11ax/ac/n/g/b/a |
| frequency | 2.4 GHz and 5 GHz |
| Signal rate | • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 574 Mbps |
| transmission power | • CE: <20 dBm (2.4GHz, EIRP) <23 dBm (5GHz band1 & 2, EIRP) <27 dBm (5GHz band3, EIRP) • FCC: < 22 dBm (2.4 GHz) < 22 dBm (5 GHz) |
| WiFi features | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming§ • Beamforming • MU-MIMO • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| WiFi security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| transmission power | • CE: <20 dBm (2.4GHz, EIRP) <23 dBm (5GHz band1 & 2, EIRP) <26 dBm (5GHz band3, EIRP) • FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz) |
