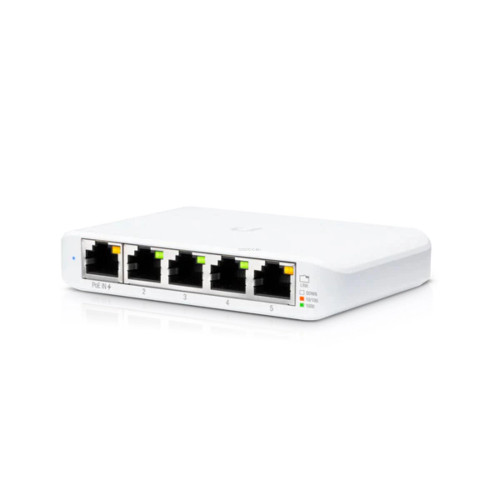

Ubiquiti UniFi USW Flex - Managed, Layer 2 Gigabit Switch
Brand : Ubiquiti
- SKU:
- USW-Flex
- Availability:
- Ships within 24 hours
Ubiquiti UniFi USW Flex - Managed, Layer 2 Gigabit Switch
| · Auto-Sensing IEEE 802.3af PoE Ports |
| · Lightweight, Weatherproof Housing |
| · Indoor/Outdoor Design with Versaltile Mounts |
Build and expand your network with the UniFi® Switch, model USW-Flex. The USW-Flex is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers five RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.
The USW-Flex features five Gigabit RJ45 ports to deliver robust performance and intelligent switching for your network. Port 1 provides PoE Input while ports 2-4 offer 802.3af PoE and provide up to 15W of power for your PoE devices. Products requiring 802.3af, such as G3 Flex cameras, are also supported.
System Requirements
• Linux, Mac OS X, or Microsoft Windows 7/8/10
• Java Runtime Environment 1.8 or above recommended
• Web Browser: Google Chrome (Other browsers may have
limited functionality)
• UniFi Controller software v5.11.36 (or newer), available at:
ui.com/download/unifi
All UniFi devices support off-site management controllers.
For setup details, refer to the U
| Mechanical | |
|---|---|
| Dimensions | 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1") |
| Weight | 230 g (8.1 oz) |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (5) GbE RJ45 ports |
| PoE interface | (4) PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 5 Gbps |
| Switching capacity | 10 Gbps |
| Power method | PoE++ |
| Power supply | PoE/PoE+ (Pins 1, 2+; 3, 6-) PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) 50V/60W PoE adapter (Not included) |
| Supported voltage range | PoE: 44—57V DC PoE+/PoE++: 50—57V DC |
| Max. power consumption | 5W (Excluding PoE output) |
| Total available PoE | 46W* *When powered with a PoE++ switch or a 60W PoE adapter (Sold separately). |
| Max. PoE wattage per port by PSE | 25W |
| ESD/EMP protection | Air/contact: ± 16kV |
| Button | Factory reset |
| Ambient operating temperature | 46W PoE output: -40 to 55° C (-40 to 131° F) 25W PoE output: -40 to 65° C (-40 to 149° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | Port isolation Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| PoE | Link/activity |
| Application Requirements | |
| UniFi Network | Version 5.10.3 and later |
Ubiquiti UniFi USW Flex - Managed, Layer 2 Gigabit Switch with Auto-sensing 802.3af PoE Support. 1x PoE In, 4x PoE Out, 2Yr Warr
