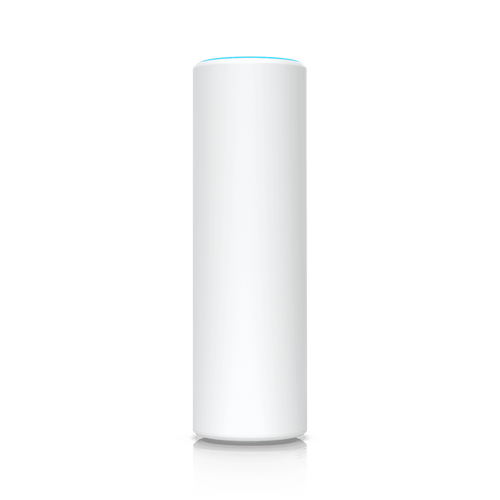

Ubiquiti UniFi Wi-Fi 6 Pro AP 4x4 Mu-/Mimo Wi-Fi 6, 2.4GHz
Brand : Ubiquiti
- SKU:
- U6-PRO
- Availability:
- Ships within 24 hours
Ubiquiti UniFi Wi-Fi 6 Pro AP 4x4 Mu-/Mimo Wi-Fi 6, 2.4GHz
- Dual-band WiFi 6 (802.11ax)
- 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
- 2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 Mbps throughput rate
- Operates at full 4x4 MIMO with 160 MHz bandwidth
- 300+ concurrent client capacity
- Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion
- Included universal mounting plate, backing plate, and screw kit
Best-in-class Wi-Fi coverage and performance
The Access Point WiFi 6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MIMO) and 2.4 GHz (2x2 MIMO) bands.
Simultaneously connect to more devices
Create and support over 300 distinct client connections. The WiFi 6 Pro simplifies the process of bringing WiFi 6 to enterprise networks that support a large number of clients. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Easily set up and grow your network
UAPs can be locally or remotely managed with your UniFi Network application running on a UniFi OS Console. UAPs can also be set up as independent devices, but doing so will limit your configuration and remote access options. Access your UAPs on UniFi Network by going to unifi.ui.com or downloading the mobile app (Android / iOS).
| Mechanical | |
|---|---|
| Dimensions | Ø197 x 35 mm (Ø7.8 x 1.4") |
| Weight | Without mount: 580 g (1.3 lb) With mount: 720 g (1.6 lb) |
| Enclosure material | Polycarbonate |
| Mount material | Stainless steel (SUS304) |
| Weatherproofing | IP54 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE |
| Power supply | UniFi PoE switch PoE adapter (Not included) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 13W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
22 dBm 26 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) – |
| Max. data rate 2.4 GHz 5 GHz 6 GHz |
573.5 Mbps (BW40) 4.8 Gbps (BW160) – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
4 dBi 6 dBi – |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 350+ |
| Zero wait DFS | Yes* *Supported with upcoming firmware versions |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 6.1.56 and later |
Ubiquiti UniFi Wi-Fi 6 Pro AP 4x4 Mu-/Mimo Wi-Fi 6 access point, 2.4GHz @ 573.5 Mbps & 5GHz @ 4.8Gbps **No POE Injector Included, 2Yr Warr
