Ubiquiti Cloud Gateway Ultra, Multi-WAN, UCG-Ultra
Change-of-mind returns
Request approval within 14 days. Unopened, unused items in sealed packaging only. A 15% restocking fee and return freight apply. See Refund Policy.
Warranty information
Change-of-mind returns
Request approval within 14 days. Unopened, unused items in sealed packaging only. A 15% restocking fee and return freight apply. See Refund Policy.

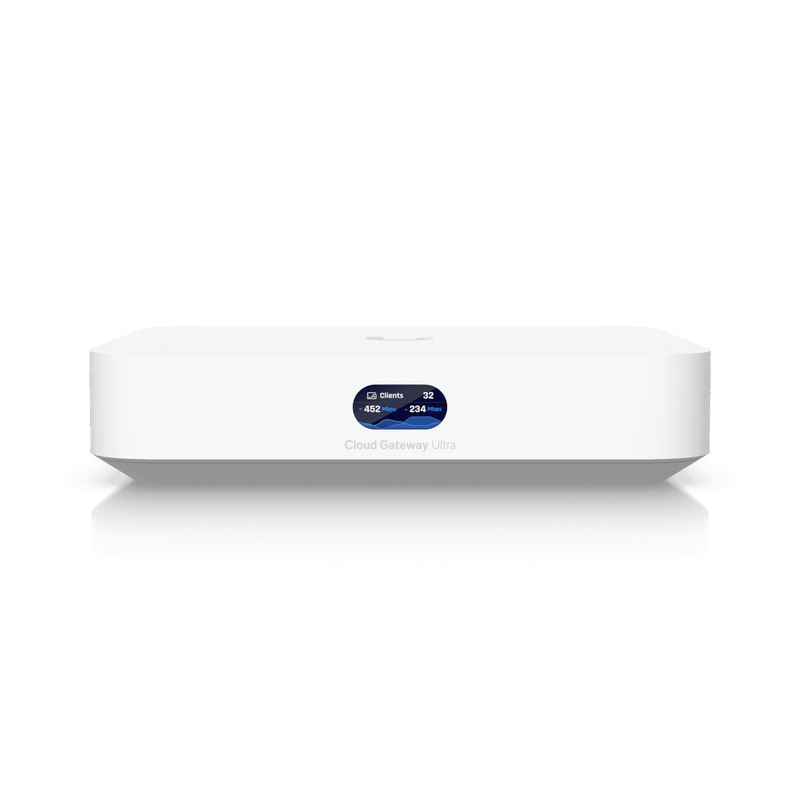

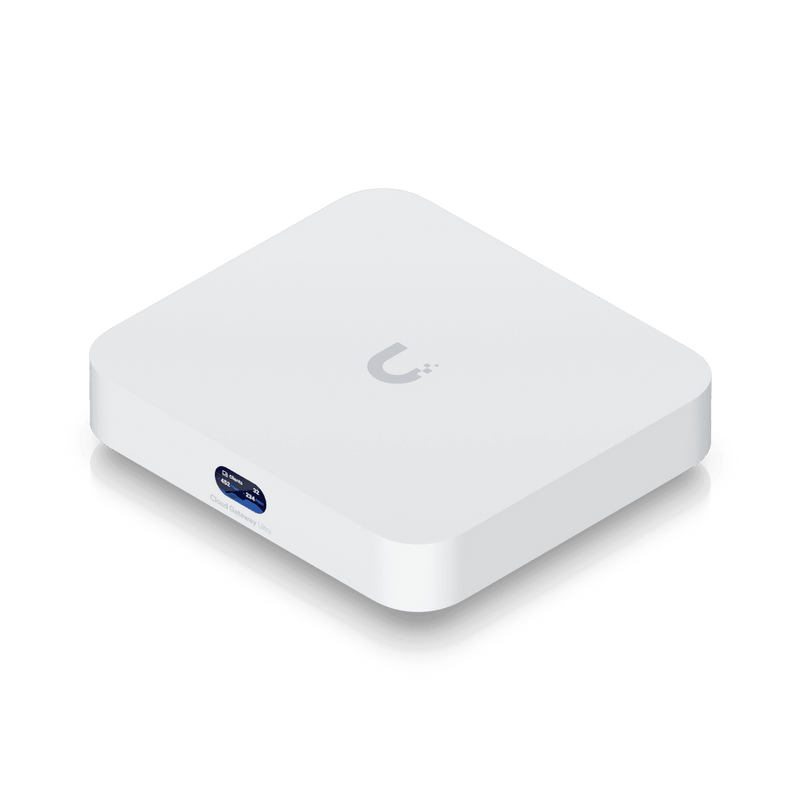

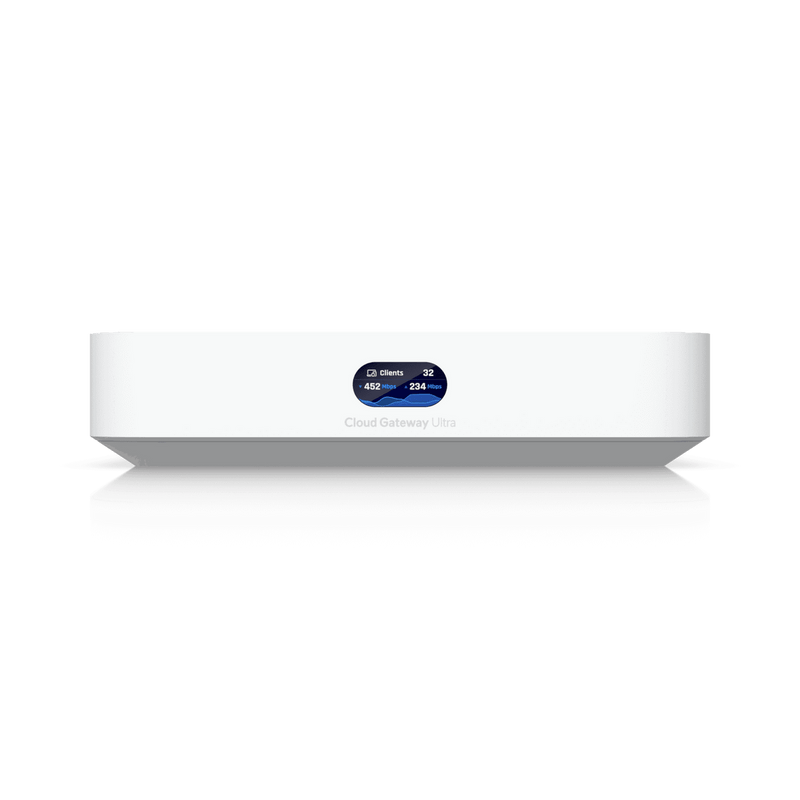

The Ubiquiti Cloud Gateway Ultra (UCG-Ultra) combines UniFi Network management with a wired multi-WAN gateway, one 2.5 GbE port and four Gigabit ports.
Manage a UniFi network from the integrated Network application. This model runs UniFi Network; it is not a replacement for a dedicated Protect recording console.

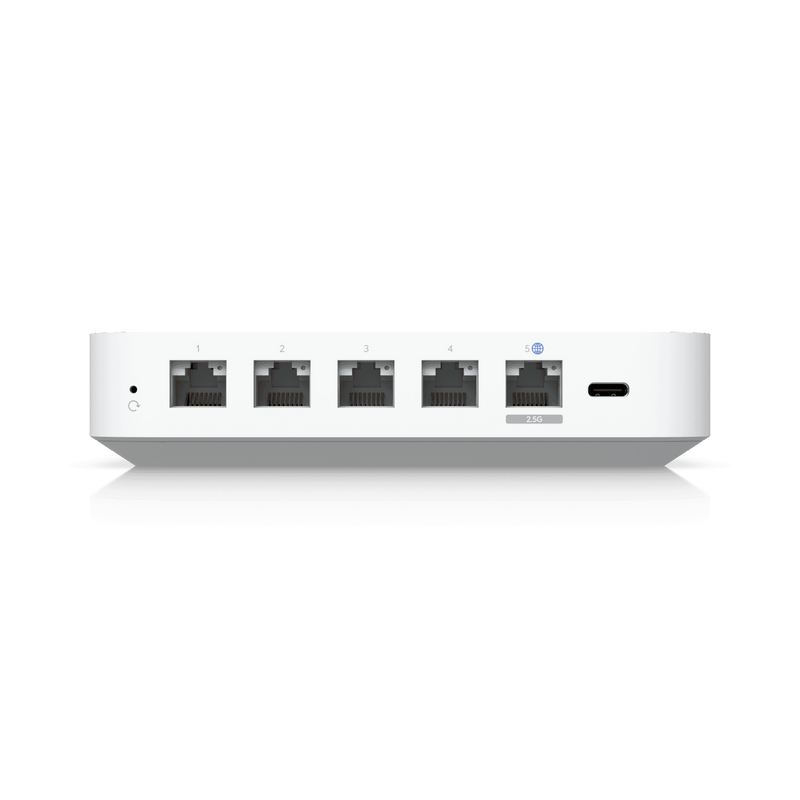

The default WAN port supports 2.5 GbE, while the four other RJ45 ports are Gigabit. A faster WAN link does not make each LAN port a 2.5 GbE connection. Actual throughput varies with traffic, configuration and service.
| Specification | Details |
|---|---|
| Model / part number | UCG-Ultra |
| RJ45 ports | 1 × 2.5 GbE; 4 × Gigabit |
| IDS/IPS throughput | Up to 1 Gbps; actual performance varies |
| Processor | Quad-core ARM Cortex-A53, 1.5 GHz |
| Memory / onboard storage | 3 GB / 16 GB |
| Power | USB-C, 5V DC / 3A |
| Maximum power consumption | 6.2W |
| Dimensions | 141.8 × 127.6 × 30mm |
| Weight | 520g |
