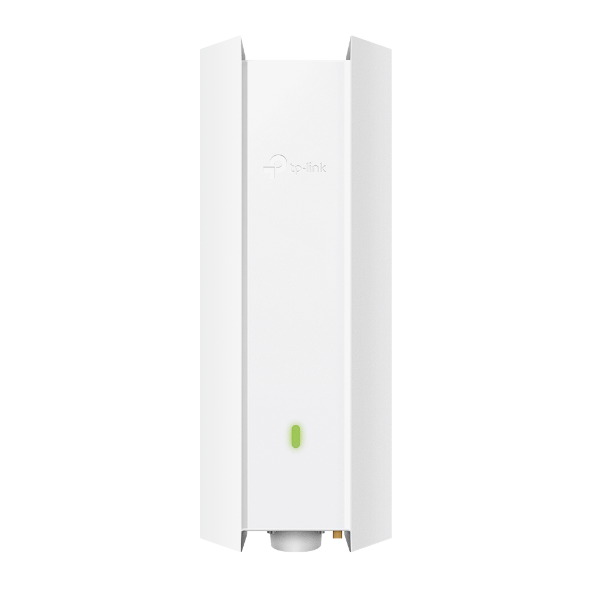

TP-LINK WIRELESS AX3000 INDOOR/OUTDOOR ACCESS POINT, PASSIVE GbE POE, IP67, 3YR WTY - EAP650-OUTDOOR
-
Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.1
-
Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
-
160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.2
-
Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
-
Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment.3
-
Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.3
-
PoE Powered: : Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
-
Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.3
Long-Range Coverage
Professional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.
Experience the Peak of
WiFi 6 with Smart Antennas
TP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications.
Powered with PoE+ Switch
Powered and connected by an 802.3at PoE+ switch using one single cable for convenient deployment.
Using a PoE+ Switch
Less Wiring with Mesh
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.*3
Using Omada Mesh Technology
Powered with Passive PoE
Powered and connected by the provided passive PoE adapter using one single cable, ideal for home WiFi deployment.
| HARDWARE FEATURES |
| interface | 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) |
| Taste | Reset |
| Power supply | • 802.3at PoE
• 48V Passive PoE (PoE Adapter Included) |
| power consumption | • EU: 12.5W (802.3at PoE or Passive PoE)
• US: 14.7W (802.3at PoE or Passive PoE) |
| Dimensions (W*D*H) | • 280.4×106.5×56.8 mm (without antenna & mounting kit) |
| Antenna | • 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi |
| Weatherproof Enclosure | IP67 |
| Montage | Pole/Wall Mounting (Kits included) |
| WIFI FEATURES |
| Wireless Client Capacity | 250+6
|
| Concurrent Clients |
250+6
|
| WLAN-Standards | IEEE 802.11ax/ac/n/g/b/a |
| frequency | 2.4 GHz, 5 GHz |
| Signal rate | • 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
• 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to
2 VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| transmission power | • CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz) |
| WiFi features | • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• Omada Mesh3
• Seamless Roaming3
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client |
| WiFi security | • Captive Portal Authentication3
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
