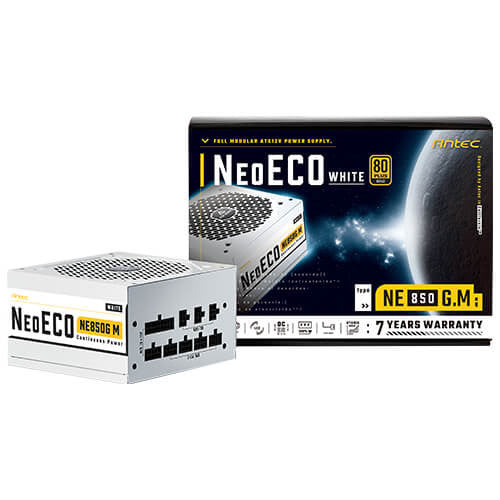

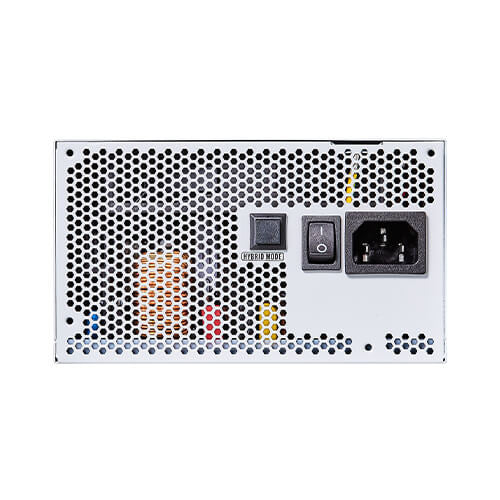

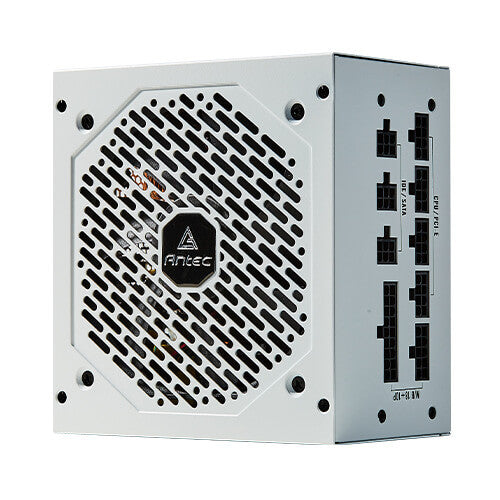

Antec NE 850w 80+ Gold, Fully-Modular Power Supply, 120mm Silent Fan
Ā
The brand-new NeoECO Gold Modular series was born ready for the best DIY-PC experience seekers, and it also serves exceptional performance and outstanding stability. Featured 100% full modular design and 80 PLUS Gold certification, the NeoECO Gold Modular series keeps your PC hardware installation convenient and clean. It still provides highly efficient power to your system and reduces your electricity bills. The advanced thermal control with the Zero RPM mode enables to turn the fan off at low loads to provide absolute silence. With the 120mm silent fan, the NeoECO Gold Modular can optimize the balance between cooling and noise. High-quality Japanese heavy-duty caps allow your system has more stable performance. The CircuitShieldā¢ design serves your industry-grade protection to make your system safe in any environment. With the 7-year warranty, the NeoECO Gold Modular series will be the ideal choice for professional modders and PC gamers.
Ā

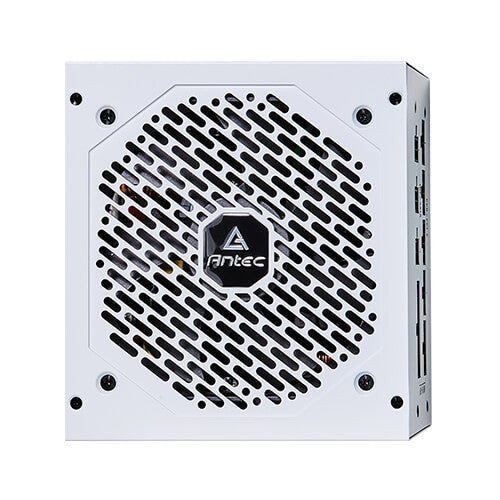

120mm Silent Fan
Features improvement for airflow and excellent durability.
Zero RPM Mode
The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.
Japanese Heavy-Duty Caps
Japanese capacitors ensure the tightest DC stability and regulation, for eliability that you and your system can count on.
PhaseWaveTM LLC + DC to DC Design
A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.
PCIE5.0 Ready
12VHPWR cable included, delivering high performance & stability under high load or usage to pair with your powerful graphics cards like RTX 40 Sereies.
7-Year Warranty
The new NeoECO Gold Modular series from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 7-year warranty.
100% Full Modular
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
Ā
SPECIFICATIONS
| Product Name |
NE850G M White |
| Model Name |
X7000A083-20 |
| Type |
ATX 12V 2.4 |
| Modular |
Fully |
| DimensionĀ |
150(L) x 140(W) x 86(H) |
| Warranty |
7 years |
| Input Voltage |
100-240 VAC |
| Input Current |
10A MAX |
| Input Frequency Range |
50Hz-60Hz |
| PFC |
Active PFC |
| Power Good Signal |
100-500ms |
| Efficiency |
Up To 92%Ā |
| Protection |
OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity |
850W |
| Operation Temperature |
0~40Ā°C |
| Regulatory |
cTUVus / TUV / CB / RCM / CE / FCC / BIS
/ BSMI / KC / UKCA / ICES |
| Fan |
120mm Silence Fan |
| Certifications |
80 Plus Gold |

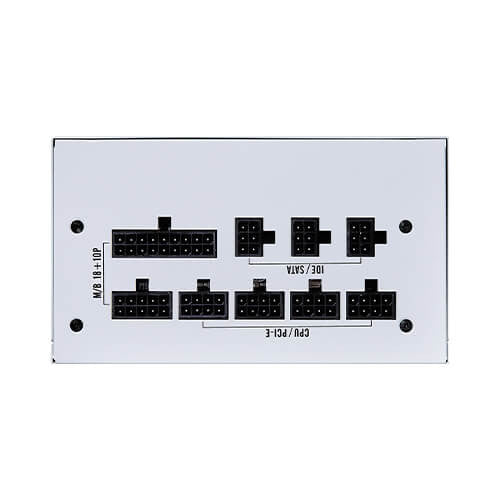

| Connector |
1 x MB 24(20+4) Pin |
| 2 x 8(4+4) Pin EPS 12V |
| 6 x 8(6+2) Pin PCI-E |
| 1 x 16(12+4) Pin 12VHPWR |
| 10 x SATAĀ |
| 5 x Molex |
| 1 x FDD |
| Net Weight |
1.38 kgs |
| Gross Weight |
2.71 kgs |
| UPC# |
0-761345-11230-7 NE850G M White
0-761345-11231-4 NE850G M White AU
0-761345-11232-1 NE850G M White EC
0-761345-11233-8 NE850G M White GB
0-761345-11234-5 NE850G M White JP |
Ā
Antec NE 850w 80+ Gold, Fully-Modular, LLC DC, White 1x EPS 8PIN, 120mm Silent Fan, Japanese Caps, ATX Power Supply, PSU, PCIE 5.0 Rdy. 7yrs Wty
