- 850W Power Output
- 80 Plus Gold Certified
- Fully Modular Design
- ATX Form Factor
- Black Edition
- 8 Year Warranty
- ASUS Prime Series
- Black Colour
- Internal Power Supply
- Desktop PC Compatible

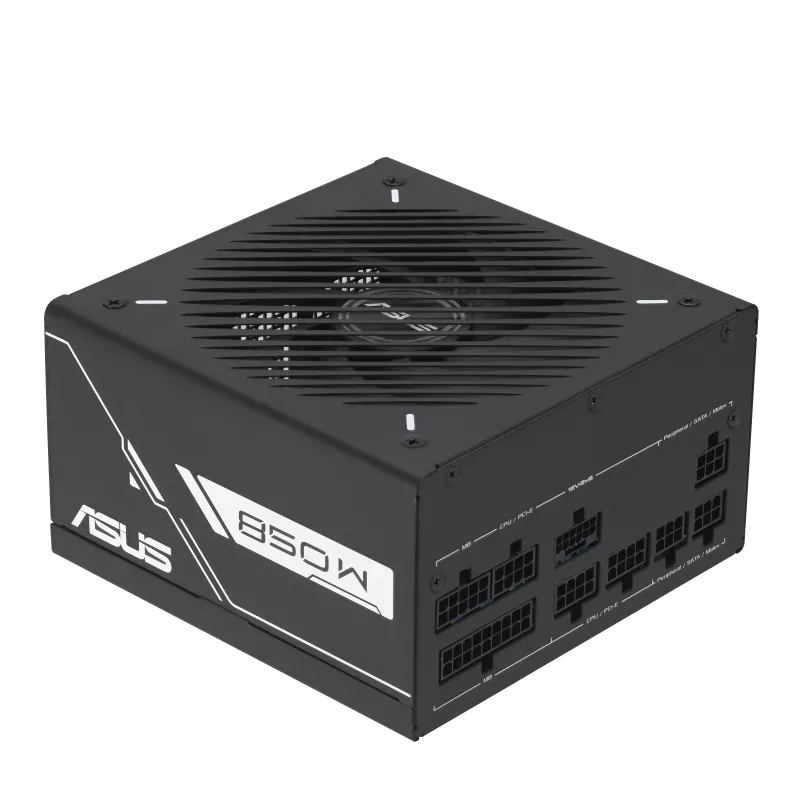

With 80 PLUS and Cybenetics Gold certification, Dual-ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
ATX 3.1 & PCIe 5.1 Compatible
The Prime Gold series meets the stringent requirements of the ATX 3.1 standard and supports PCIe 5.1 graphics cards. It supports total power excursions up to twice the rated power and graphics card power excursions up to three times the rated power, helping to ensure rock-solid stability for your PC.
A 16-pin PCIe cable that is compatible with PCIe Gen 5.1 graphics cards is bundled with the PSU, bringing large-scale capabilities.
80 PLUS & Cybenetics Gold Certification
The ASUS Prime 850W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
PREMIUM ETCHED CABLES
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management.
Dual-ball Fan Bearings
Exemplary cooling is provided by a 135mm fan spinning on a Dual-ball bearing setup that will last up to twice as long as a sleeve bearing design.
Superior Copper Pins
Upgraded PCIe® connectors feature advanced thermal conductivity to help ensure cool operation and efficient power delivery. This translates to a significant 29% reduction in connector temperatures (up to 12.28°C), promoting optimal performance and stability for even the most demanding graphics cards.
PROTECTION
To make sure the entire system can operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.
Technical Specs
+3.3V +5V +12V -12V +5Vsb
110W 110W 846W 3.6W 12.5W

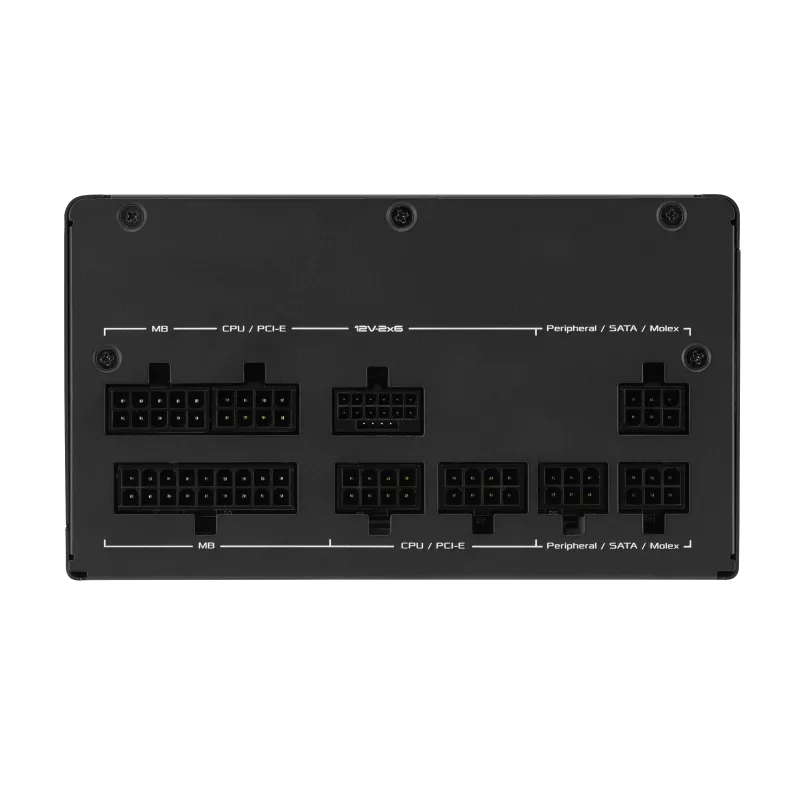

MB 20+4pin x 1
CPU 4+4pin x 2
PCI-E 16pin x1 (12V-2x6)
PCI-E 6+2pin x 3
SATA x 5
PERIPHERAL x 4
MB 20+4pin x 1
CPU 4+4pin x 2
PCI-E 16pin x1 (12V-2x6)
PCI-E 6+2pin x 3
SATA x 5
PERIPHERAL x 4
Power Cord x 1
Motherboard Power cable x 1 (600mm)
CPU 1-to-2 Cable x 1 (650mm+150mm)
PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (600mm)
PCI-E 1-to-1 Cable (8-pin-to-6+2pin) x 1 (600mm)
PCI-E 1-to-2 Cable (8-pin-to-6+2pin*2) x 1 (600+150mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x1 (400+150+150+150mm)
User Manual x 1
Power Cord x 1
Motherboard Power cable x 1 (600mm)
CPU 1-to-2 Cable x 1 (650mm+150mm)
PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (600mm)
PCI-E 1-to-1 Cable (8-pin-to-6+2pin) x 1 (600mm)
PCI-E 1-to-2 Cable (8-pin-to-6+2pin*2) x 1 (600+150mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x1 (400+150+150+150mm)
User Manual x 1
Cybenetics Noise Level Certification
