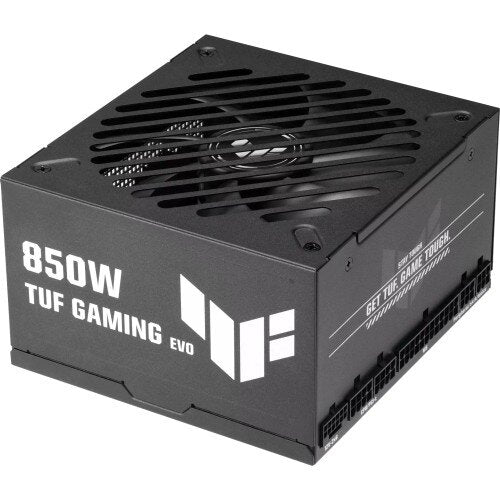

ASUS TUF Gaming 850G EVO 850W 80 Plus Gold ATX 3.1 Fully Modular PSU
ASUS TUF Gaming 850G EVO 850W 80 Plus Gold ATX 3.1 Fully Modular PSU
ASUS TUF Gaming 850G EVO 850W 80 Plus Gold ATX 3.1 Fully Modular PSU
ASUS TUF Gaming 850G EVO 850W 80 Plus Gold ATX 3.1 Fully Modular PSU
ASUS TUF Gaming 850G EVO 850W 80 Plus Gold ATX 3.1 Fully Modular PSU

ASUS TUF Gaming 850G EVO 850W 80 Plus Gold ATX 3.1 Fully Modular PSU

$199.60 - $199.60
$199.60
$199.60 - $199.60
$199.60
Availability:
in stock, ready to be shipped
SKU TUF-GAMING-850G-EVO
by ASUS

Change-of-mind returns

Request approval within 14 days. Unopened, unused items in sealed packaging only. A 15% restocking fee and return freight apply. See Refund Policy.

Warranty information

8 Years Manufacturer's Warranty

  • 850W Power Output
  • 80 Plus Gold Certified
  • ATX 3.1 Compliant
  • PCIe 5.1 Ready
  • Fully Modular Design
  • TUF Gaming Series
  • High Efficiency PSU
  • ATX Form Factor
  • Black Finish
  • ASUS 850G EVO Model



The ASUS TUF Gaming 850W Gold EVO power supply unit delivers a robust and dependable foundation for high-performance systems, engineered for resilience and longevity. This 850W PSU boasts 80 PLUS Gold and Cybenetics Gold certifications, ensuring exceptional power efficiency and reduced operational costs for organisations. Its construction incorporates military-grade capacitors, including TUF 5K black metallic variants, which provide superior durability, a wider temperature tolerance, and an extended lifespan compared to standard components, making it a reliable choice for demanding environments.

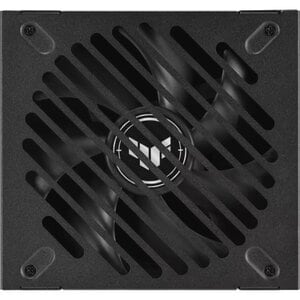

Designed to meet the rigorous demands of modern computing, the TUF Gaming 850W Gold EVO is fully compliant with the ATX 3.1 standard and supports PCIe 5.1 graphics cards, including a dedicated 16-pin cable for next-generation GPUs. Cooling is optimised by a 135mm fan featuring dual-ball bearings, which offers up to twice the lifespan of traditional sleeve bearing designs, complemented by a protective PCB coating that safeguards against moisture, dust, and extreme temperatures. Fully modular etched cables facilitate neat cable management and improved airflow within the chassis.



Technical Specs

Reliability
MTBF 120000 Hour
Miscellaneous
Package Contents
  • 850W TUF-GAMING-850G-EVO Power Supply
  • 1 x Power Cord
  • 1 x Motherboard Power Cable (610mm)
  • 1 x CPU 1-to-2 Cable (650mm+100mm)
  • 1 x PCI-E Gen 5.1 Cable (16-pin-to-16-pin) (500mm)
  • 1 x PCI-E 1-to-1 Cable (8-pin-to-6+2pin) (500mm)
  • 1 x PCI-E 1-to-2 Cable (16-pin-to-6+2pin*2) (500+100mm)
  • 2 x SATA & Peripheral 1-to-2+1 Cable (400+120+120mm)
  • 3 x TUF Gaming Cable Tie
  • 1 x User Manual
Certifications & Standards
    • UL1581
    • UL758
Energy Efficiency Certification 80 Plus Gold
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Interfaces/Ports
Number of SATA Power Connectors 4
PCI Express Connector Yes
Number of (4+4 pin) CPU Power Connectors 2
Number of (6+2 pin) PCI Express Power Connectors 3
PCI Express Version 5.1
Power Description
Input Voltage 120 V AC
230 V AC
Output Power 850 W
Output Voltage 5 V DC
3 V DC
12 V DC
-12 V DC
5 V SB
Output Current 20 A
3 A
300 mA
70.83 A
Input Voltage Range 100 V AC - 240 V AC
Input Frequency 50-60 Hz
Number of +12V Rails 1
Output Voltage Detail 12 V DC @ 70.83 A
3 V DC @ 20 A
5 V DC @ 20 A
5 V SB @ 3 A
-12 V DC @ 0.3 A
Physical Characteristics
Weight (Approximate) 1.35 kg
Form Factor ATX
Height 86 mm
Width 140 mm
Depth 150 mm
General Information
Product Type Power Supply
Manufacturer Part Number TUF-GAMING-850G-EVO
Manufacturer Website Address
Manufacturer ASUS Computer International
Product Model TUF-GAMING-850G-EVO
Product Name 850W TUF-GAMING-850G-EVO Power Supply
Product Line TUF Gaming
Brand Name Asus
Technical Information
Fan Diameter 135 mm
Protection Type Overpower
Short Circuit
Over Circuit
Over Voltage
Over Temperature
Under Voltage
Fan Bearing Type Dual Ball Fan Bearing
Number of Fans 1
Power Factor Correction (PFC) Active
Modular Yes
Specification Compliance ATX12V v3.1
Modular Type Fully Modular
