- Complies with ATX12V V3.1 & EPS 12V V2.92
- Supports the latest PCIe 12V-2x6 connector (850W / 750W)
- Efficiency ≧ 90% @ typical load
- Active PFC, Power Factor ≧ 0.9
- Quiet and long-lasting 120mm fan
- Durable 420V main capacitor
- Powerful +12V Single Rail Design
- +5V &3.3V DC to DC module design
- Premium, all-black cables for easier cable routing
- Complete Protections: OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO
- Meet ErP/EuP 2013 Standard
The Future is Now | ATX 3.1 & PCIe Gen 5.1 Ready
Following the latest ATX 3.1 & PCIe Gen 5.1 regulation, support up to 200% power excursion and with the new interface of PCIe 12V-2x6 connector to ensure peak performance with future hardware upgrades.
High efficiency in Gold-certified
Certified by world-class organizations 80 PLUS® gold certification for lower power loss, less heat, and quieter operation.
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.
+12V Single Rail Design
Designed for power - intensive VGA cards Provides strong power to any overloading condition.

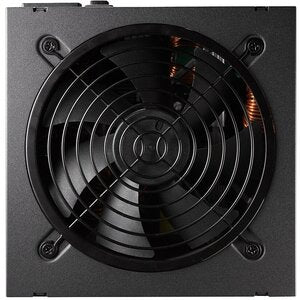

Quiet and long-lasting fan
Built with optimized thermal solution and an advanced 120mm fan for cooler components and quieter operation.
Active PFC ≧ 0.9
A minimum power factor of 0.9 guarantees both system stability and efficiency.
Thermal Resilience | Power You Can Depend On.
The VIC GD power supply is engineered for reliable power delivery, even in temperatures up to 40°C. Count on stable performance for your everyday computing, ensuring system longevity without heat concerns.
Strong Power Supply for CPU Needs
This power supply is equipped with dual 8-pin PCIe power connectors, delivering ample 12V power to meet the demands of high-performance CPUs.
Technical Specs
Environmental Conditions
| Maximum Operating Temperature |
40°C |
Reliability
Miscellaneous
| Country of Origin |
China |
| Energy Efficiency Certification |
80 Plus Gold |
| Energy Efficiency Compliance |
Energy-related Products Directive (ErP) |
| Energy-using Products Directive (EuP) |
Interfaces/Ports
| Number of SATA Power Connectors |
8 |
| PCI Express Connector |
Yes |
| Number of (4+4 pin) CPU Power Connectors |
2 |
| Number of (6+2 pin) PCI Express Power Connectors |
3 |
| Number of 4-pin Molex Power Connectors |
4 |
Physical Characteristics
| Form Factor |
Internal |
| Height |
86 mm |
| Width |
150 mm |
| Depth |
150 mm |
| Product Color |
Black |
| Color Family |
Black |
Technical Information
| Efficiency |
90% |
| Fan Diameter |
120 mm |
| Features |
Low Noise |
| On/Off Switch |
| Protection Type |
Over Voltage |
| Short Circuit |
| Under Voltage |
| Surge & Inrush Protection |
| Over Temperature |
| Over Power |
| No Load |
| Over Current |
| Fan Bearing Type |
Hybrid Bearing |
| Number of Fans |
1 |
| Power Factor Correction (PFC) |
Active |
| Modular |
Yes |
| Specification Compliance |
ATX12V v3.1 |
| EPS12V v2.92 |
General Information
| Product Type |
Power Supply |
| Manufacturer Part Number |
VIC-750GM |
| Manufacturer Website Address |
http://www.fspgroupusa.com |
| Manufacturer |
FSP Group USA Corp |
| Product Model |
VIC-750GM |
| Product Name |
VIC-750GM 750W Power Supply |
| Product Series |
VIC GM |
| Brand Name |
FSP Group |
Power Description
| Input Voltage |
230 V AC |
| 120 V AC |
| Output Power |
750 W |
| Output Voltage |
5 V DC |
| 12 V DC |
| -12 V DC |
| 3.3 V DC |
| 5 V SB |
| Output Current |
300 mA |
| 3 A |
| 62.50 A |
| 20 A |
| Input Frequency |
50-60Hz |
| Number of +12V Rails |
1 |
| Output Voltage Detail |
5 V DC @ 20 A |
| 3.3 V DC @ 20 A |
| 12 V DC @ 62.5 A |
| -12 V DC @ 0.3 A |
| 5 V SB @ 3 A |
