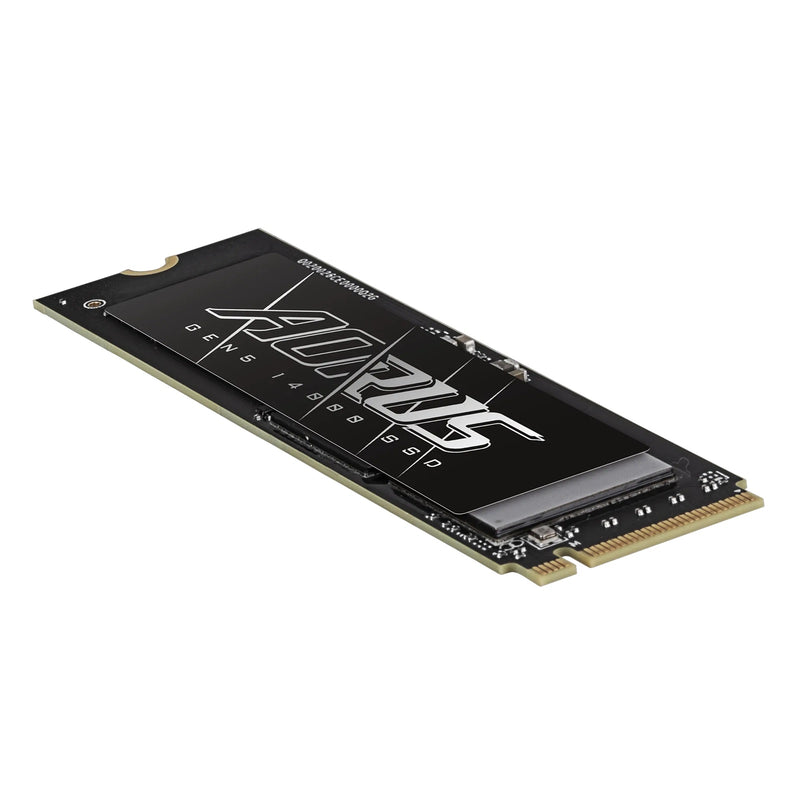

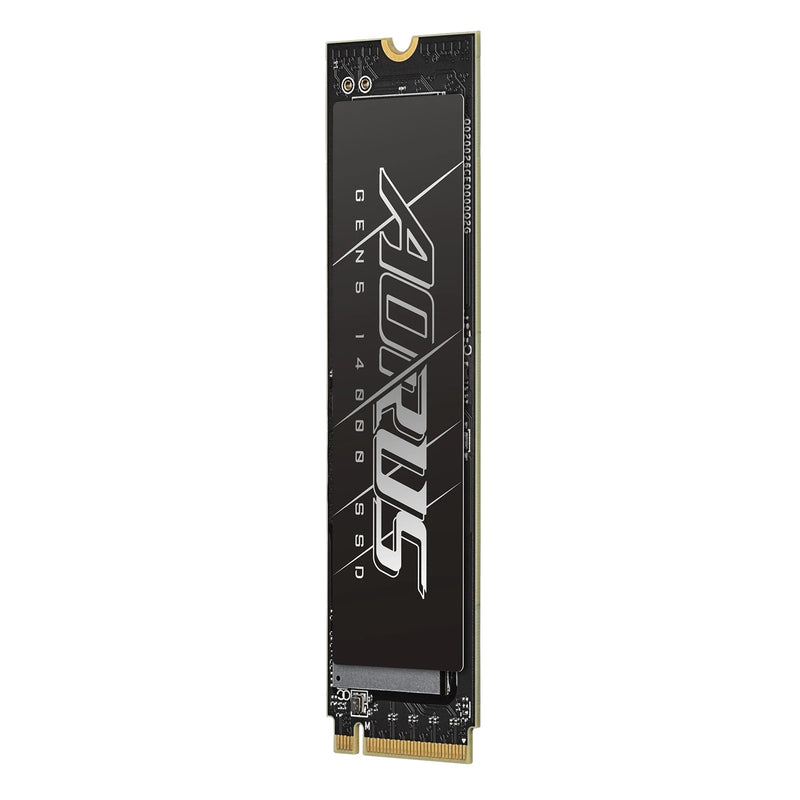

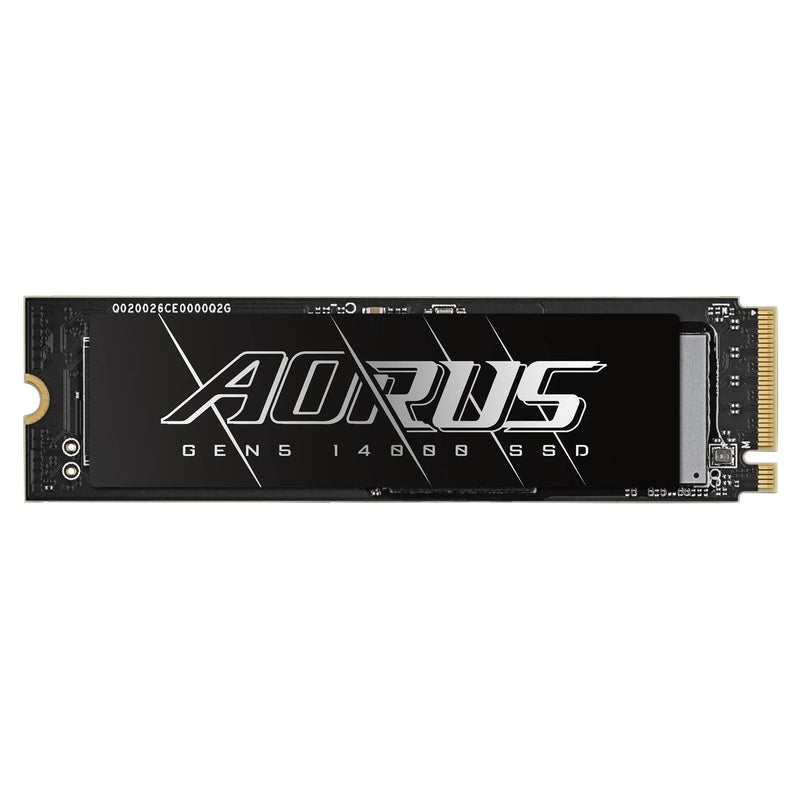

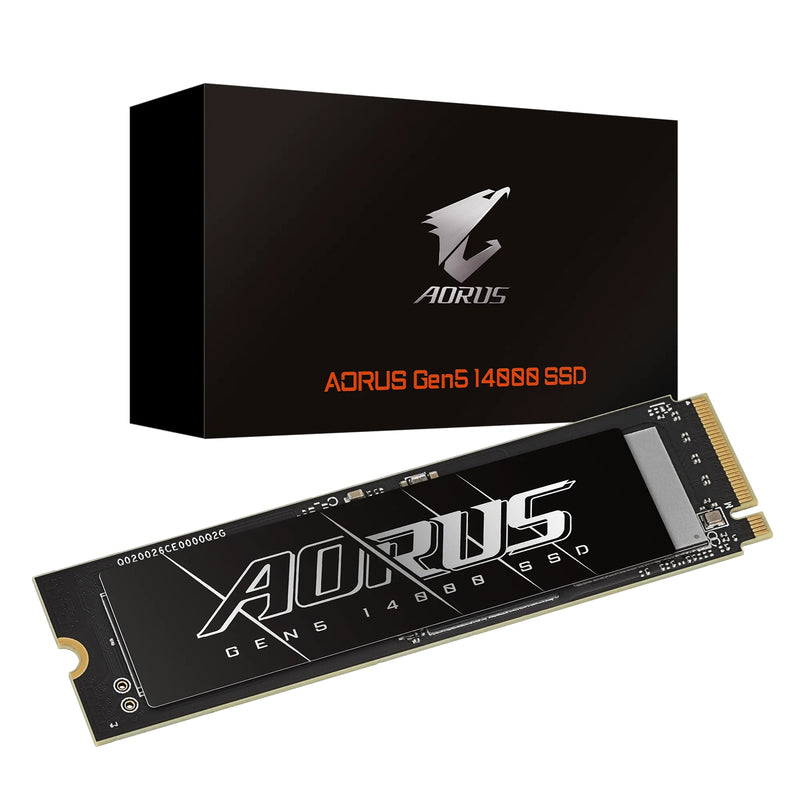

Powered by the PCIe Gen5.0 x4 controller Phison PS5026-E26 and boasting brand-new 232-layer 3D TLC NAND Flash, the AORUS Gen5 14000 SSD redefines the pinnacle of speed and efficiency. With blazing sequential read/write speeds of up to 14,500 / 12,700 MB/s, this SSD is engineered to meet the demands of PC enthusiasts, gamers, and rendering professionals. Experience lightning-fast data transfers and enjoy a smoother, lower-latency gaming experience with the AORUS Gen5 14000 SSD. Unlock the true potential of your system and elevate your gaming prowess to unprecedented levels.

Unleash the Power of PCIe 5.0 x4, NVMe 2.0
With PCIe 5.0 x4, The PS5026-E26 controller is manufactured with the advanced 12nm process, which ensures sufficient computing power. It also supports up to 8 NAND flash channels with 64CEs, DDR4 caching and complies with the NVMe 2.0 standard. The speed of the AORUS Gen5 14000 SSD is doubled compared to PCIe 4.0 x4, so that data can be transported at a significantly higher speed.

Pairing with Motherboard-Integrated Heatsinks
When utilizing AORUS Gen5 14000 SSD, it is crucial to pair it with a motherboard equipped with a built-in heatsink. The high-speed data transfer capabilities of PCIe5.0 x4 SSD demand efficient heat dissipation to maintain optimal performance and prevent thermal throttling.

Interface PCI-Express 5.0x4, NVMe 2.0
Form Factor M.2 2280
Total Capacity 2000GB
NAND 3D TLC NAND Flash
External DDR Cache LPDDR4 4GB
Sequential Read speed Up to 14,500 MB/s
Sequential Write speed Up to 12,700MB/s
Dimension 80 x 22 x 3.5 mm
Mean time between failure (MTBF) 1.6 million hours
Max. Operating Power Read : 11.5W; Write : 11.5W
Power Consumption (Idle, PS3) < 144mW
Power Consumption(PS4, L1.2) < 85mW
Temperature (Operating) 0°C to 70°C
Temperature (Storage) -40°C to 85°C

Warranty
1. Limited 5-years or 1400TBW.
2. Limited warranty based on 5 years or 1400TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.


* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
