• 1000W Power Supply

• 80 Plus Gold Efficiency

• ATX 3.1 Ready

• PCIe 5.0 16-Pin Power Connector

• Fully Modular Cable Design

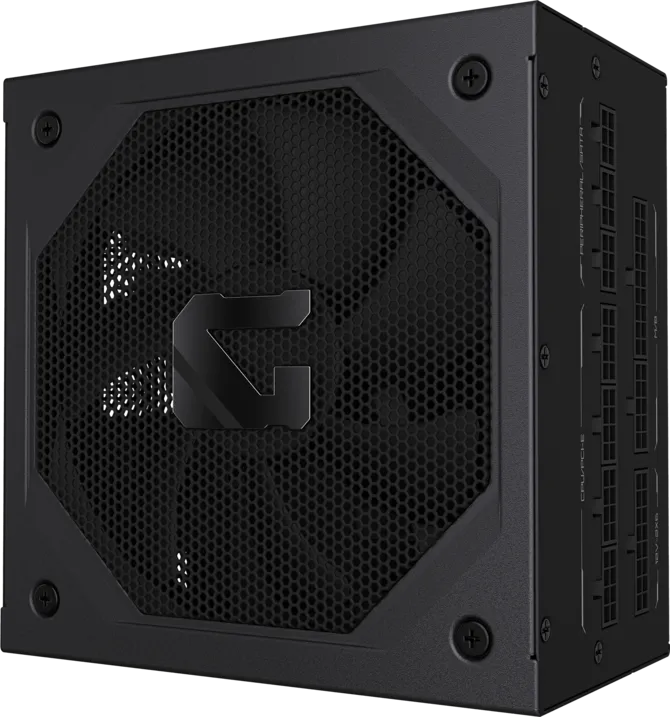

• 135mm Cooling Fan

Built to Power. Born to Win.

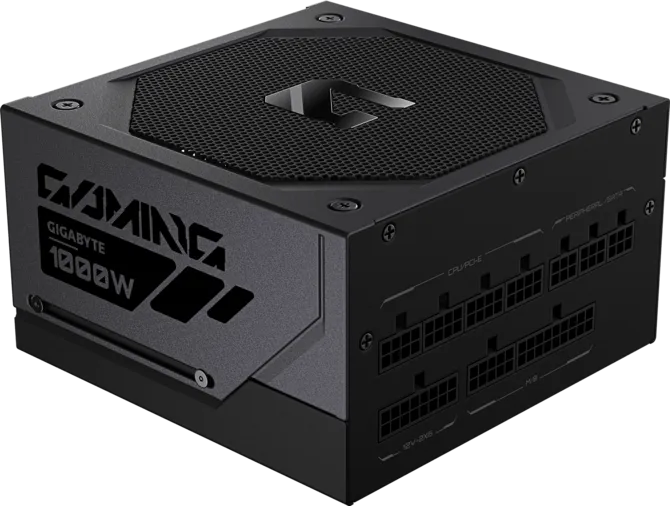

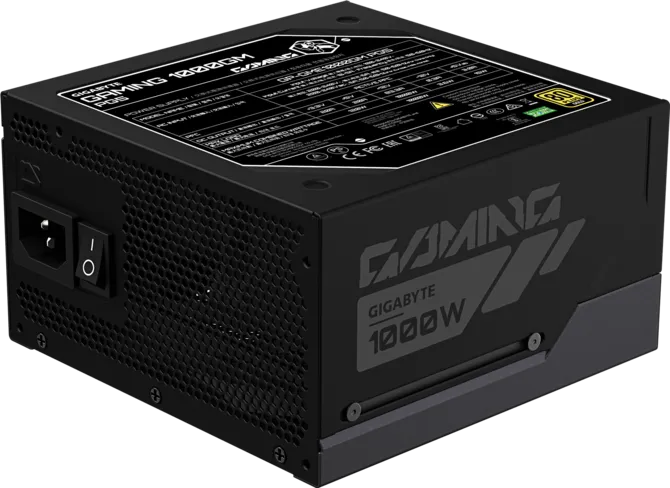

The GIGABYTE GAMING 1000GM PG5 is a 1000W, 80 PLUS Gold, fully modular ATX 3.1 power supply built for modern gaming rigs. It provides stable, efficient, and ultra-quiet power with intelligent safeguards to ensure peak performance when the stakes are highest.

DOUBLE DOWN ON SAFETY
Dual-layer defense engineered for high-draw, high-performance graphics cards.

T-Guard: Active GPU Thermal Protection
Designed for high-performance GPUs, T-Guard monitors the 12V-2x6 cable for abnormal heat buildup. If a risk is detected, power to the GPU is cut to help prevent potential damage while the system stays active, allowing time to secure data and avoid gameplay interruptions

Dual-Color 12V-2x6 Connector
The dual-tone connector gives a clear visual cue to confirm a secure connection.

POWER EVERY PLAY
Clean, efficient power for demanding gaming systems.

Fully Modular Design with Embossed Cables
Connect only what’s required, and enjoy clean builds with flexible embossed cables designed for smooth routing and hassle-free cable management.

Power for Any GPU
Includes a native 12V-2x6 connector and four PCIe 8-pin connectors to support today’s wide range of graphics cards.

Standard ATX Size
Compact 150mm length fits easily into most PC cases, offering broad compatibility and more room to work with.

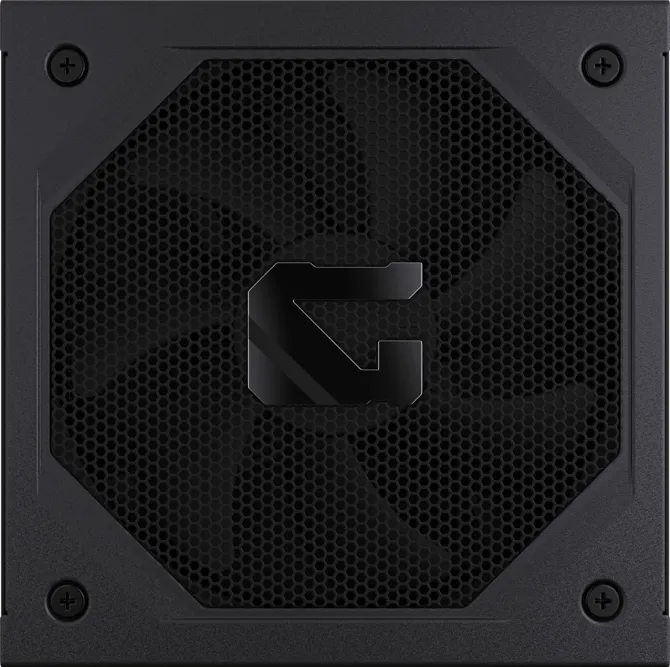

Fluid Dynamic Bearing
The fan’s Fluid Dynamic Bearing design ensures long lifespan, smooth operation, and consistently low noise over time.

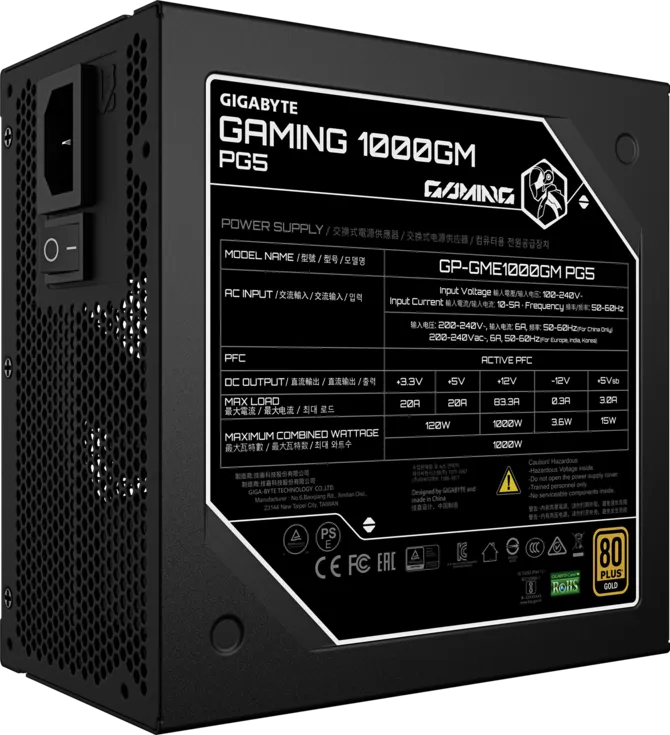

Model
GP-GME1000GM PG5

Type
Intel Form Factor ATX 12V v3.1

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)
Input Current
12-6A

Input Frequency
60-50 Hz

Output Capacity
1000W

Dimensions
150 x 150 x 86mm

Fan Type
135mm FDB Fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protections
OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP

Power Good Signal
100-150ms

Hold Up Time
>17ms (80% load)

Cable Type
Embossed, All black

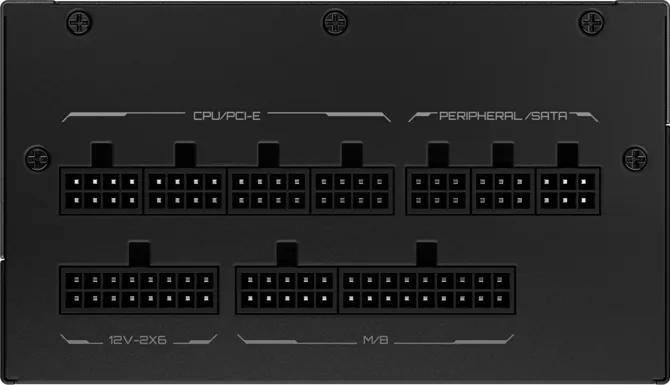

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
