• 750W Power Supply

• 80 Plus Gold Efficiency

• ATX 3.1 Ready

• PCIe 5.0 16-Pin Power Connector

• Fully Modular Cable Design

Built to Power. Born to Win.

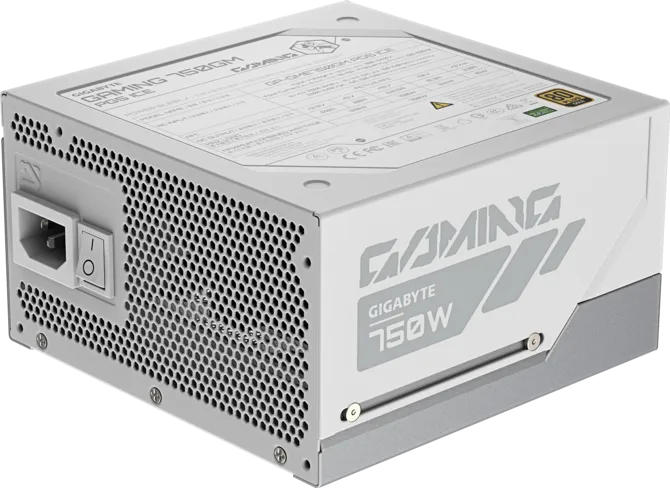

The GIGABYTE GAMING 750GM PG5 ICE is a 750W, 80 PLUS Gold, fully modular ATX 3.1 power supply built for modern gaming rigs. It provides stable, efficient, and ultra-quiet power with intelligent safeguards to ensure peak performance when the stakes are highest.

DOUBLE DOWN ON SAFETY
Dual-layer defense engineered for high-draw, high-performance graphics cards.

T-Guard: Active GPU Thermal Protection
Designed for high-performance GPUs, T-Guard monitors the 12V-2x6 cable for abnormal heat buildup. If a risk is detected, power to the GPU is cut to help prevent potential damage while the system stays active, allowing time to secure data and avoid gameplay interruptions*.

Dual-Color 12V-2x6 Connector
The dual-tone connector gives a clear visual cue to confirm a secure connection.

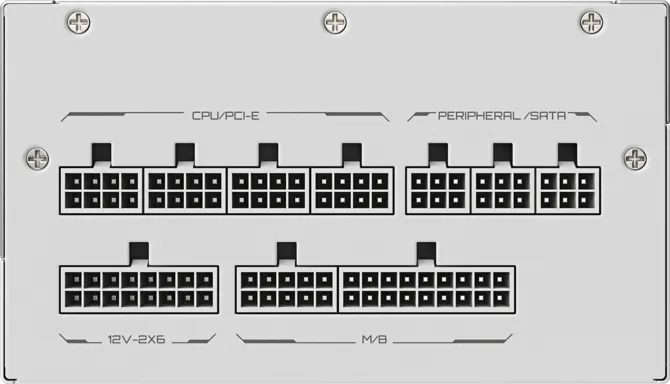

Fully Modular Design with Embossed Cables
Connect only what’s required, and enjoy clean builds with flexible embossed cables designed for smooth routing and hassle-free cable management.

Power for Any GPU
Includes a native 12V-2x6 connector and four PCIe 8-pin connectors to support today’s wide range of graphics cards.

Standard ATX Size
Compact 150mm length fits easily into most PC cases, offering broad compatibility and more room to work with.

• Model
• GP-GME750GM PG5 ICE

• Type
• Intel Form Factor ATX 12V v3.1

• PFC
• Active PFC (>0.9 typical)

• Input Voltage
• 100-240 Vac

• Input Current
• 10-5A

• Input Frequency
• 50-60 Hz

• Output Capacity
• 750W

• Dimensions
• 150 x 150 x 86mm

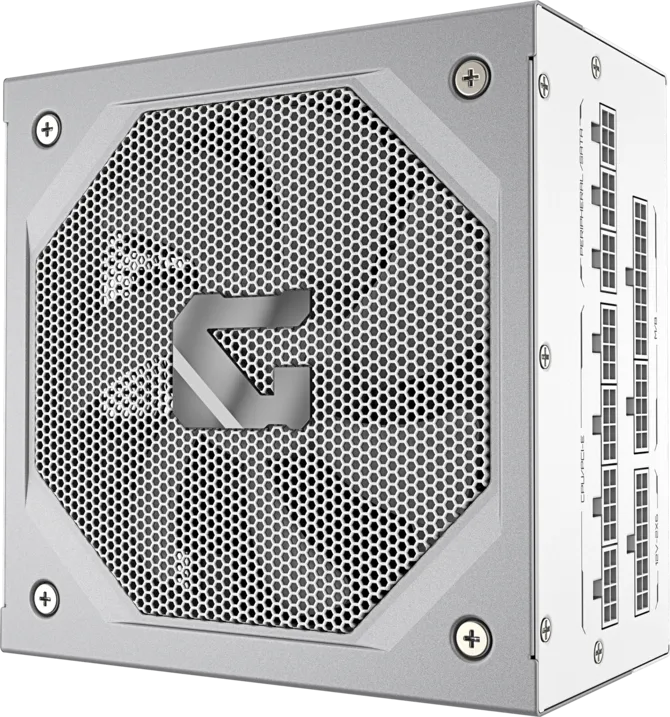

• Fan Type
• 135mm FDB Fan

• 80 PLUS
• Gold

• Efficiency
• 90% at typical load

• MTBF
• >100,000 hours

• Protections
• OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP

• Power Good Signal
• 100-150ms

• Hold Up Time
• >17ms(80% load)

• Cable Type
• Embossed, All black

• Connectors
• ATX/MB 20+4 Pin x 1 : 610mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm*2
  PCI-e 16 Pin x 1: 700mm*1
  PCI-e 6+2 Pin x 4 : 600mm+150mm*2
  SATA x 8 : 600mm+150mm+150mm+150mm*2
  4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
