• 750W Power Output

• 80 Plus Gold Efficiency

• ATX Form Factor

• PCIe 5.0 Ready

• Black Embossed Cables

• 100-240V AC Input Support

• Fully Modular Design

• Stable Power Delivery

• Over 100,000 Hours MTBF

• Gaming and Workstation Ready

ATX 3.1 and PCIe GEN 5.1 READY
Ready for next-gen power demands, this ATX 3.1 compliant PSU handles up to 3× GPU and 2× system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 450W for PCIe Gen 5.1 graphics cards, such as the GeForce RTX™ 50 Series and beyond.

ULTRA DURABLE
Carrying the Ultra Durable design DNA, this power supply packs high-quality components and smart design features for rock-solid stability and lasting performance.

100% JAPANESE CAPACITORS
High-quality Japanese capacitors are used throughout, ensuring efficient performance and long-lasting reliability.

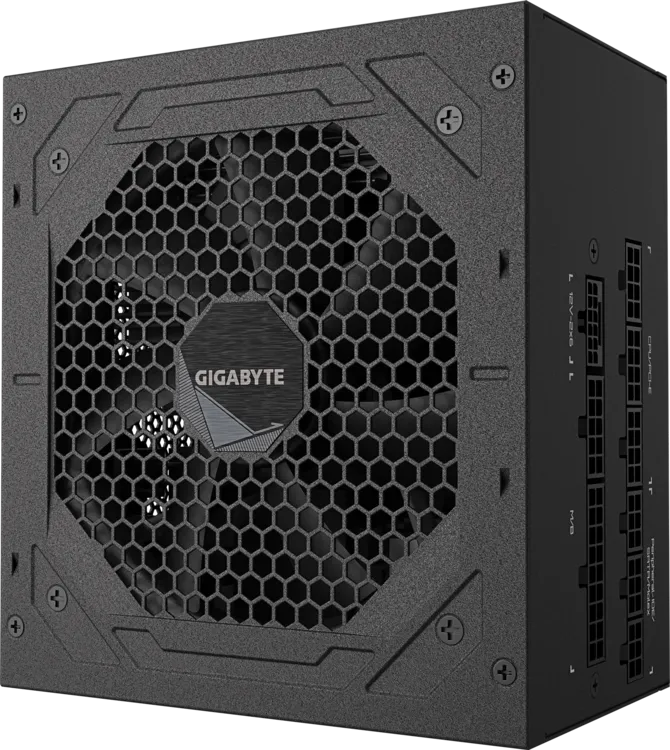

120mm smart Hydraulic Bearing(HYB) fan with smart fan switch
Fan speed adjusts automatically based on power load, staying silent when the system is idle or under 20 percent load. The hydraulic bearing fan ensures a longer, more stable lifespan for sustained performance.

PROTECTIONS
Multiple protection features are integrated to ensure stable operation under any condition. The power supply is also backed by safety certifications from various countries, providing added peace of mind.

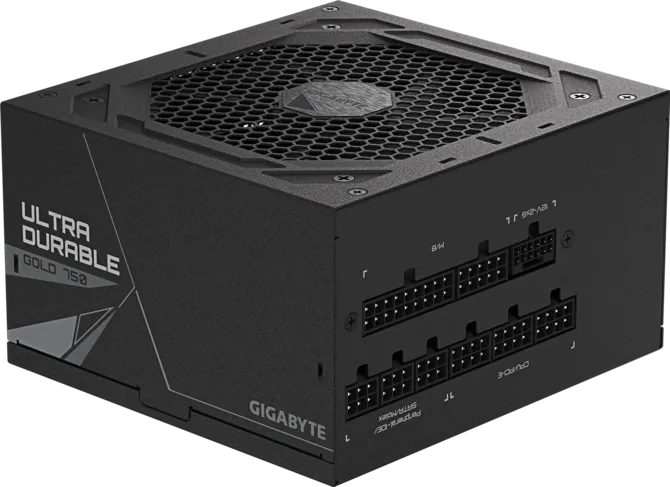

FULLY MODULAR DESIGN
Connect only the cables you need using the sleek black embossed cables with a fully modular design, reducing clutter, improving airflow, and enhancing chassis thermal performance.

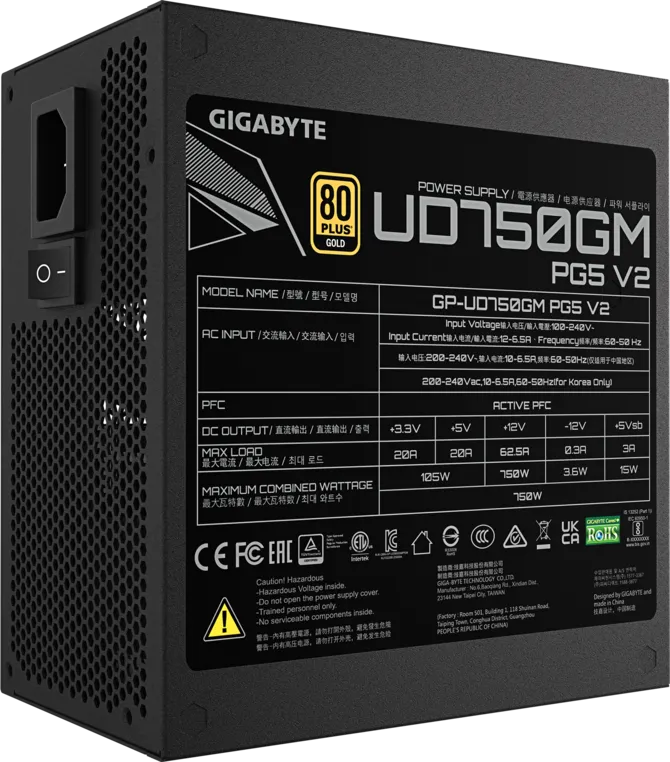

SPECIFICATIONS

Model
GP-UD750GM PG5 V2

Type
Intel Form Factor ATX 12V v3.1

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
15-6.5A

Input Frequency
60-50 Hz

Output Capacity
750W

Dimension
150 x 140 x 86mm

Fan Type
120mm Hydraulic Bearing(HYB)fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protection
OVP/OPP/SCP/UVP/OCP/OTP


Power Good Signal
100-150ms

Hold Up Time
>16ms

Cable Type
Embossed, All black

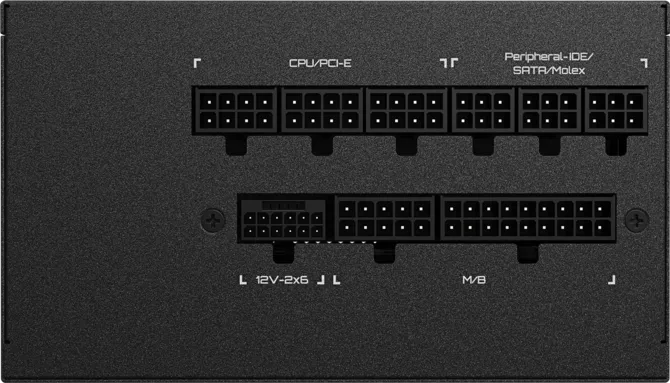

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
PCI-e 12+4 Pin x 1:700mm*1
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1
