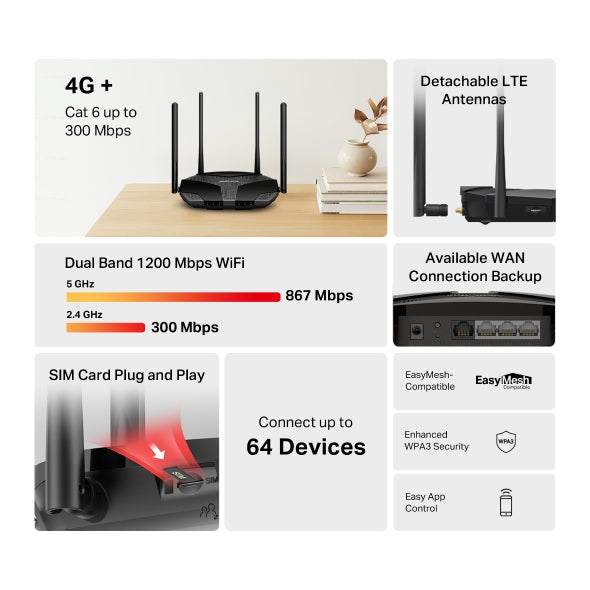

- 4G+ network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
- Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
- Simultaneous Connection – Enjoy and share internet access with up to 64 Wi-Fi devices.
- Maximum Network Coverage –  Enjoy stable and efficient connections to every device thanks to the four external antennas. LTE antennas can be replaced with high-power alternatives for enhanced 4G LTE signal strength and coverage.
-
Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.
-
EasyMesh Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
Â

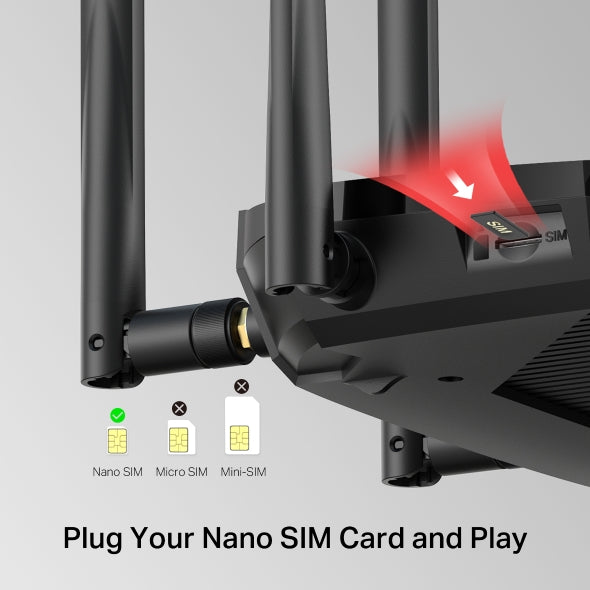

Plug and Play with Your Nano SIM Card
Compatible with FDD-LTE and TDD-LTE, working with most service providers worldwide. Simply insert a nano SIM card and power on the router to share your network with multiple WiFi devices.
WiFi Wherever You Need It
Enjoy unmatched convenience and versatility with fast, stable WiFi whether you’re at home or working remotely.
Extra Fast 4G+ Cat6 Speed for Reliable WiFi
Working as a 4G+ WiFi router, MB235-4G uses 4G+ Cat6 technology to achieve superfast speeds up to 300 Mbps download and 50 Mbps upload. It can also share dual band WiFi network speeds up to 1.2 Gbps. The 2.4 GHz band is perfect for music streaming and online shopping, while the 5 GHz band, with speeds of 867 Mbps, handles bandwidth-intensive HD streaming and gaming.
Designed for Maximum Network Coverage
Advanced external antennas deliver stable, efficient connections across all devices. LTE antennas can be replaced with high-power alternatives for enhanced 4G LTE signal strength and coverage.
Cover Your Whole Home with EasyMesh
MB235-4G is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other APs that support EasyMesh from multiple vendors. Enjoy scalable and seamless mesh WiFi throughout your home!
Share WiFi with Your Friends
A remarkable number of wireless devices are compatible with this 4G+ router without any issues. Up to 64 simultaneous connections for tablets, laptops, mobile phones, and other devices.

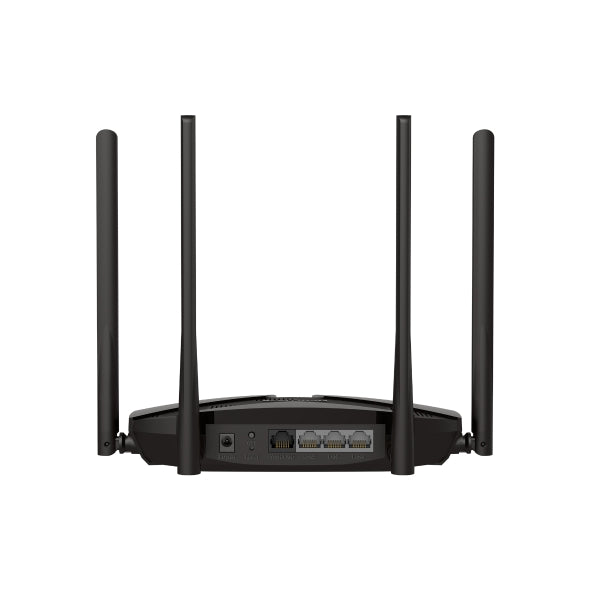

Available WAN Connection Backup
Equipped with a versatile LAN/WAN port, MB235-4G doubles as a router compatible with cable, fiber, and DSL modems, ensuring uninterrupted connectivity.
Â
| Cellular Standards |
Cat 6 300/50 Mbps DL/UL |
| Cellular Bands |
EU: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40 (2600/2300 MHz) HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| SIM |
1Ă— Nano SIM Card Slot |
| Wi-Fi Class |
AC1200 |
| Wi-Fi (2.4 GHz) |
300 Mbps |
| Wi-Fi (5 GHz) |
867 Mbps |
| Wireless Standards |
IEEE 802.11ac/a/b/g/n |
| Max Channel Width |
80 MHz |
| Reception Sensitivity |
11g 6 Mbps: -95 dBm 11g 54 Mbps: -77 dBm 11n HT20 MCS7: -74 dBm 11n HT40 MCS7: -71 dBm 11a 6 Mbps: -92 dBm 11a 54 Mbps: -75 dBm 11ac VHT20 MCS8: -70 dBm 11ac VHT40 MCS9: -65 dBm 11ac VHT80 MCS9: -61 dBm |
| MAX Capacity |
64 |
| Recommended Clients Limit |
32 |
| Wireless Security |
WPA-PSK / WPA2-PSK / WPA3-SAE |
| Wireless Functions |
Smart connect WPS Wireless Schedule |
| Dimensions |
209 Ă— 171.9 Ă— 41.7 mm (8.2 Ă— 6.8 Ă— 1.6 in) |
| Interfaces |
1Ă— GE LAN/WAN Port 3Ă— GE LAN Ports 1Ă— Nano SIM Card Slot |
| Antenna |
2 External Detachable 4G LTE Antennas 2 External Wi-Fi Antennas |
| Button |
1Ă—WPS Button 1Ă—Reset Button |
| External Power Supply |
12V/1A |
| Installation |
Desktop |
| LED |
1Ă— POWER 1Ă— Internet 1Ă— LAN 3Ă— Signal |
| Retail Package Dimension |
305 Ă— 274 Ă— 60 |
| Units per Carton |
8 |
| Carton Dimension |
555 Ă— 310 Ă— 245 |
| Operation Mode |
3G/4G Router Wireless Router |
| Cellular Mode |
4G Mode 3G Mode |
| Cellular APN |
Data Roaming Band Search Network Search Profile Create APN Settings ISP File Upgrade PIN Management |
| WAN Mode |
Dynamic IP Static IP PPPoE PPTP L2TP |
| NAT Forwarding |
ALG Virtual Server Port Triggering UPnP DMZ |
| Protocols |
IPv4 IPv6 |
| Data Settings |
Data Statistics Data Limit |
| Guest Network |
2.4 GHz Guest Network 5 GHz Guest Network |
| Parental Controls |
Time Control Website Filtering |
| DHCP |
Server DHCP Client List Address Reservation |
| DDNS |
DynDNS NO-IP |
| SMS |
Inbox New Message Outbox Drafts |
