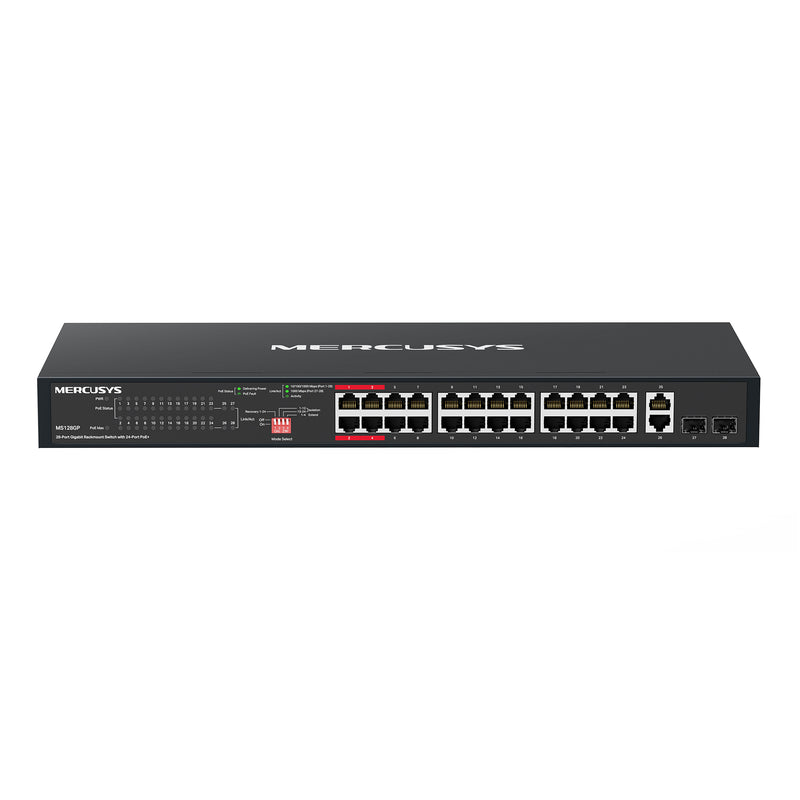

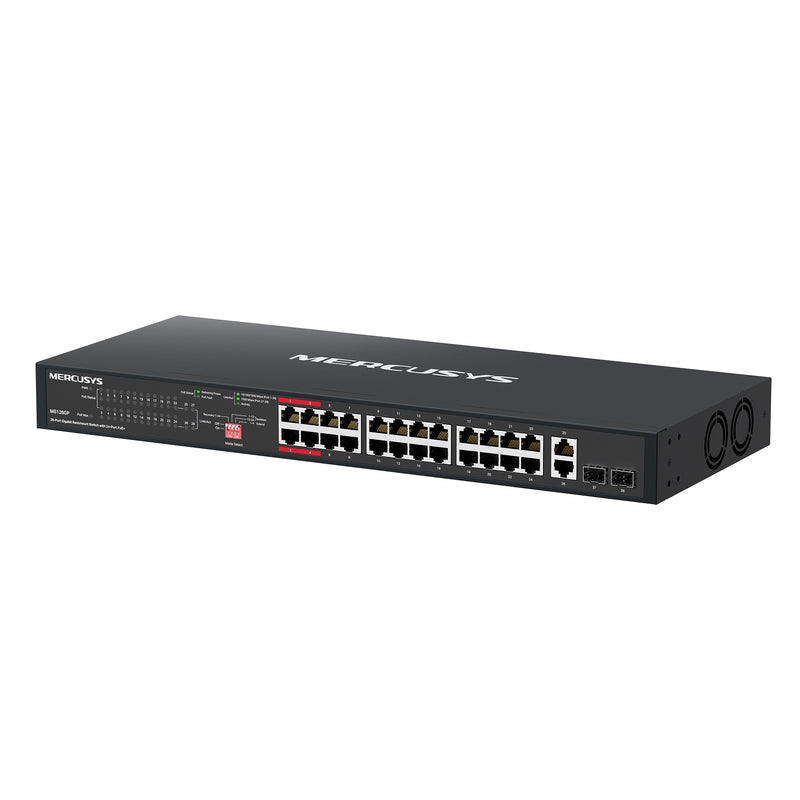

Mercusys MS128GP 28 Port Gigabit Rackmount Switch 24 Port PoE+ Managed
Mercusys MS128GP 28 Port Gigabit Rackmount Switch 24 Port PoE+ Managed
Mercusys MS128GP 28 Port Gigabit Rackmount Switch 24 Port PoE+ Managed
Mercusys MS128GP 28 Port Gigabit Rackmount Switch 24 Port PoE+ Managed
Mercusys MS128GP 28 Port Gigabit Rackmount Switch 24 Port PoE+ Managed

Mercusys MS128GP 28 Port Gigabit Rackmount Switch 24 Port PoE+ Managed

$297.30 - $297.30
$297.30
$297.30 - $297.30
$297.30
Availability:
in stock, ready to be shipped
SKU MS128GP
by Mercusys

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

Warranty information

5 Years Manufacturer's Warranty

  • 28 Gigabit Ethernet Ports
  • 24 Port PoE+ Support
  • Rackmount Design
  • Gigabit Network Speed
  • Power over Ethernet (PoE+)
  • High Power Budget
  • Stable Data Transmission
  • Business Network Solution
  • Durable Build Quality
  • Efficient Power Management

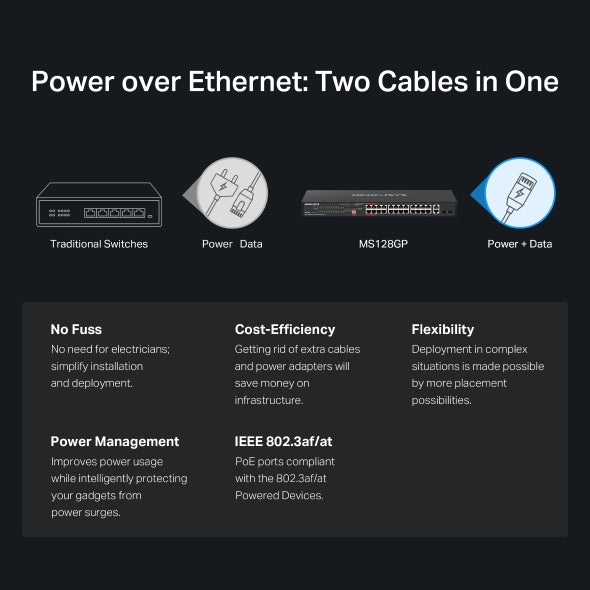

24 PoE+ Ports (295 W Budget) for Network Deployment
Compliant with the 802.3af/at Powered Devices, each of the 24 PoE+ ports supports a maximum power supply of 30 W. The total 295 W PoE power budget* can be applied in various scenarios, including surveillance, offices, and small businesses, since MS128GP is fully compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.

Long-Range up to 250 m with Extend Mode
Extend Mode** increases PoE transmission distance to 250 m. MS128GP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Durable and Flexible
MS128GP’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or rack mount to meet your demand.



Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Dimensions

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
PoE Ports

• Standard: compatible with 802.3af/at PDs• PoE Ports: Ports 1–24, up to 30 W per port• PoE Power Budget: 295 W
Interfaces

• 24× 10/100/1000 Mbps PoE+ RJ45 Ports• 2× 10/100/1000 Mbps RJ45 Ports• 2× Gigabit SFP Slots
Transmission Medium

• 10BASE-T: 2-pair UTP/STP of Cat. 3 or above (≤100 m)• 100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (≤100 m)• 1000BASE-T: 4-pair UTP/STP of Cat. 5e or above (≤100 m)• 1000BASE-X: MMF, SMF
Fan Quantity

2 Fans
Physical Security Lock

Yes
Switching Capacity

56 Gbps
LED

• Power• Link/Act• PoE Status• PoE Max
MAC Address Table

8 K
Max Power Consumption

• 350.14 W (110V/60 Hz @ 25 °C, with 295 W PD connected)• 336.58 W (220V/50 Hz @ 25 °C, with 295 W PD connected)
Max Heat Dissipation

• 1193.98 BTU/hr (110V/60 Hz @ 25 °C, with 295 W PD connected)• 1147.74 BTU/hr (220V/50 Hz @ 25 °C, with 295 W PD connected)
Transfer Method

Store and Forward
Advanced Features

• Compatible With IEEE 802.3at/af Compliant PDs• Extend Mode (Up to 250m PoE power supply and data transmission)• Priority Mode (Ports 1-4)• Isolation Mode (Ports 1-12, 13-24)• PoE Auto Recovery (Ports 1-24)• MAC Address Auto-Learning And Auto-Aging• IEEE802.3x Flow Control
