• 1TB Capacity

• M.2 NVMe SSD

• PCIe 4.0 Interface

• Up to 7400MB/s Read Speed

• Up to 6000MB/s Write Speed

• 1GB DDR4 Cache

• 700TBW Endurance

• 5 Year Warranty

• MSI SPATIUM M480 PRO Series

• Gaming Storage Solution

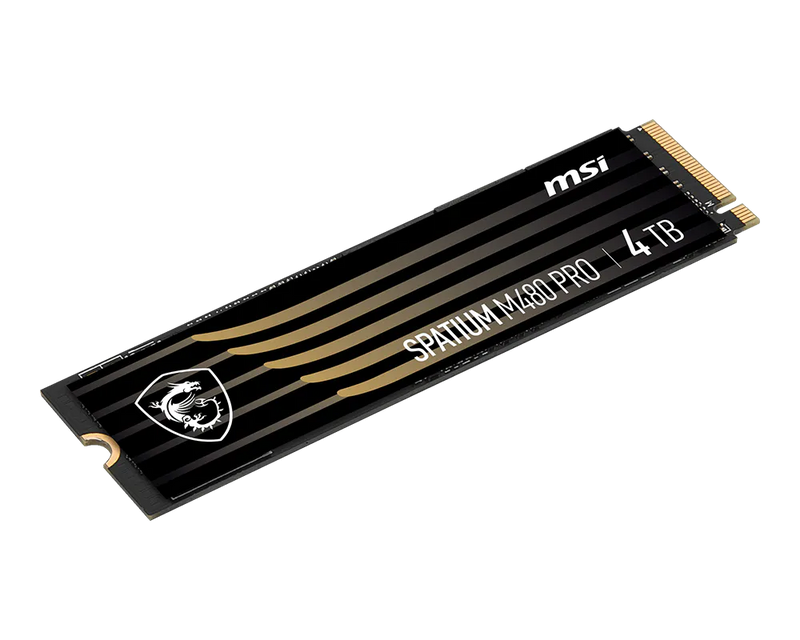

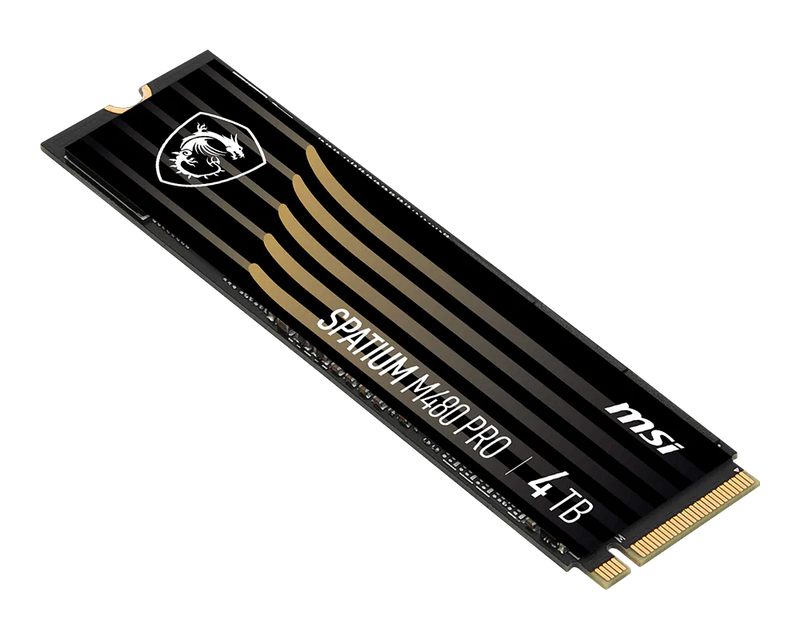

M480 PRO CHARGING AHEAD WITH SPEED
From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.

PRO Performance Realized
Delivering the ultimate PRO performance for PCIe 4.0, the M480 PRO boasts up to 60% faster random read/write speeds, enabling a supremely responsive experience in gameplay and productivity under heavy workloads.

A Need for Speed!
Optimized for the PCIe Gen4 interface, SPATIUM M480 PRO SSD reaches read/write speeds up to 7400/7000 MB/s, allowing for rapid data transfer and shortened game load times.

Small Size, More Storage
The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 4TB.

SPECIFICATION

Model Name
SPATIUM M480 PCIe 4.0 NVMe M.2

Capacity
1TB

Controller
PHISON E18

Flash Memory
3D NAND

Dram Cache
1GB DDR4

Form FActor
M.2 2280

Interface
PCIe Gen4x4, NVMe 1.4

Compatibility
PCIe Gen4 / Gen3 / Gen2 / Gen1

Dimensions
80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read up to (MB/s)
7400

Sequential Write up to (MB/s)
6000

Random Read 4KB up to (IOPS)
750,000

Random Write 4KB up to (IOPS)
1,000,000

Maximum Operating Power (W)
9.5

Idle Power PS3 (mW)
40

Low Power L1.2 (mW)
3

Operating Temperatures
0°C – 70°C

Storage Temperatures
-40°C – 85°C

Terabytes Written (TBW)
700

Mean Time Between Failure (MTBF)
Up to 1,600,000 Hours

Limited Warranty
5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features
TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/Pyrite (Encryption, Data Security)
