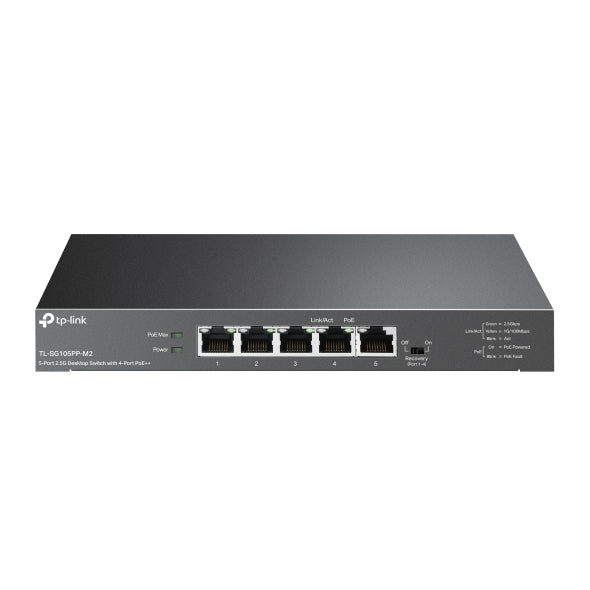

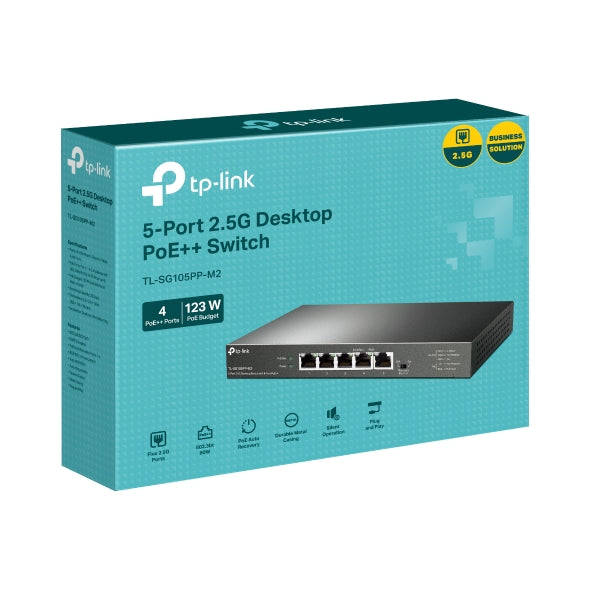

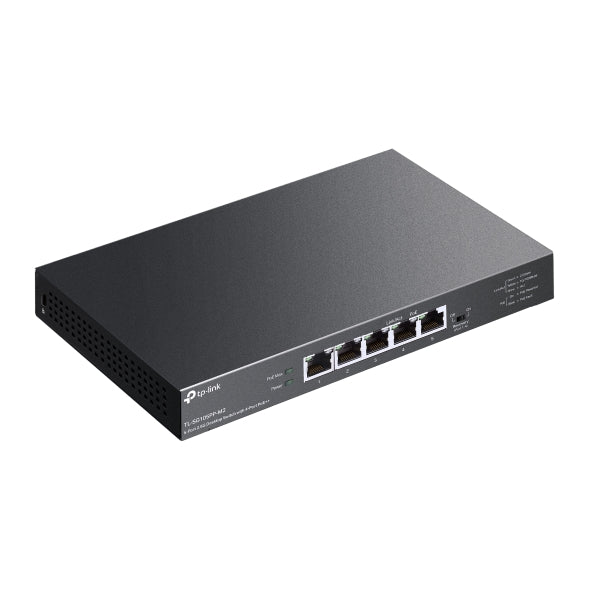

TP-Link 5 Port 2.5G PoE++ Switch 123W 4x PoE++ Metal Case Network Switch
TP-Link 5 Port 2.5G PoE++ Switch 123W 4x PoE++ Metal Case Network Switch
TP-Link 5 Port 2.5G PoE++ Switch 123W 4x PoE++ Metal Case Network Switch
TP-Link 5 Port 2.5G PoE++ Switch 123W 4x PoE++ Metal Case Network Switch

TP-Link 5 Port 2.5G PoE++ Switch 123W 4x PoE++ Metal Case Network Switch

$400.00 - $400.00
$400.00
$400.00 - $400.00
$400.00
Availability:
Only 1 left!
SKU TL-SG105PP-M2
by TP-Link

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

Warranty information

5 Years Manufacturer's Warranty

  • 5 x 2.5GbE RJ45 Ports
  • 4 x PoE++ (802.3bt Type 3) Ports
  • Up to 60W PoE Output Per Port
  • 123W Total PoE Power Budget
  • Supports IEEE 802.3af/at/bt Devices
  • 2.5 Gigabit Multi-Gig Networking
  • PoE Auto Recovery Function
  • 802.1p/DSCP QoS Support
  • Plug and Play Installation
  • Unmanaged Switch Design



2.5G Super-Fast Speeds without Changing Cables
This switch delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.

Unlock the Peak Performance of Devices with Multi-Gigabit PoE++ Ports
Featuring 5× 2.5 Gbps PoE++ ports, the switch supports a total PoE power budget of 123 W* with 60 W max per PoE++ port and is capable of future network expansion and deployment.

System Self-Healing with PoE Auto Recovery△
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.



SPECIFICATIONS

Interface • 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate 18.6 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at/bt type3 compliant
• PoE++ Ports: Ports 1–4
• Power Supply: 123 W
Mac Address Table 4K
Switching Capacity 25 Gbps
Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm)
Max. Power Consumption • 7.57 W (220/50 Hz. no PD connected)
• 143.37 W (220/50 Hz. with 123 W PD connected)
Max. Heat Dissipation • 25.81BTU/h (220 V/50 Hz with no PD connected)
• 488.89 BTU/h (220 V/50 Hz with 123W PD connected)
SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• PoE Auto Recovery (Ports 1-4)
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Content • TL-SG105PP-M2
• Power Adapter
• Installation Guide
• Rubber Feet
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
