- Wi-Fi 7 Technology
- BE3600 Dual Band Speed
- 3.6Gbps Wireless Performance
- Gigabit WAN & LAN Ports
- EasyMesh Compatibility
- 4 External Antennas
- Beamforming Technology
- TP-Link HomeShield Security
- App-Based Setup & Management
- Wide Device Compatibility

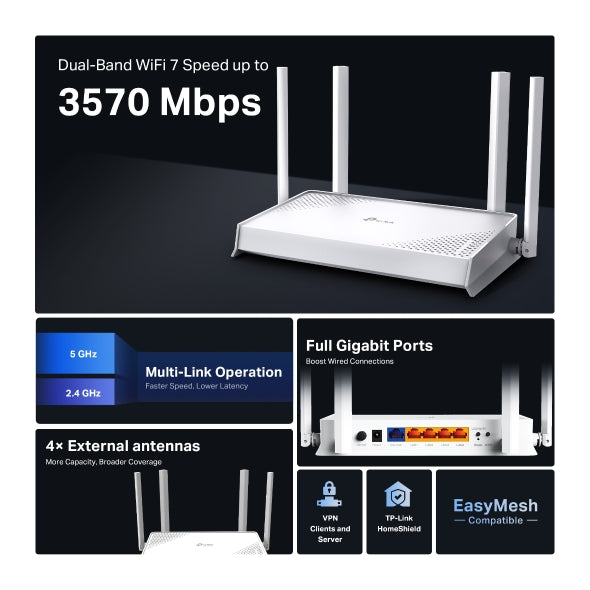

Next-Level Experience Realized with 3.2 Gbps WiFi 7
Powered by Wi-Fi 7 technology, Archer BE220W delivers an incredible wireless rate of up to 3.6 Gbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
Multi-Link Operation
Higher speed, lower latency, more reliable.
Multi-RUs
Makes full use of resource for higher throughput
4K-QAM
Packs 120% data for higher speeds.
Full Gigabit Ports for Premium Wired Performance
Gigabit Ethernet ports deliver maximum wired speeds. Plug in PCs, smart TVs, and game consoles for fast and reliable connections.
Boosted WiFi Coverage Throughout Your Home
4× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
Flexibly Create Whole Home Mesh WiFi
Archer BE220W is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
|
WIRELESS
|
| WiFi Speeds |
BE3600
• 5 GHz: 2882 Mbps (802.11be)
• 2.4 GHz: 688 Mbps (802.11be)
|
| WiFi Range |
3 Bedroom Houses
4× External Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
High
Dual-Band
Allocate devices to different bands for optimal performance
2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
4 Streams
Connect your devices to more bandwidth |
| Advanced Features |
• Multi-Link Operation (MLO)
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network
|
| Wireless Mode |
• Router Mode
• Access Point Mode |
|
SECURITY
|
| Network Security |
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
| Guest Network |
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network |
| VPN Server |
• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• WireGuard VPN Server |
| VPN Client |
• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• WireGuard VPN Client |
| WiFi Encryption |
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x) |
|
HARDWARE
|

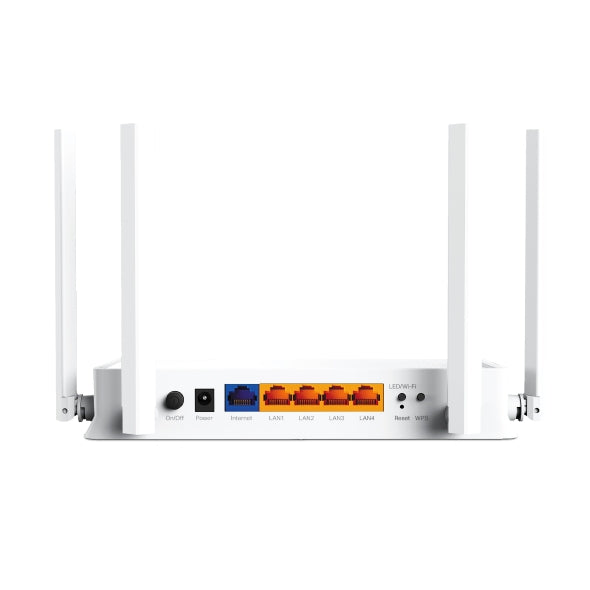

| Ethernet Ports |
• 1× 1 Gbps WAN
• 4× 1 Gbps LAN |
| Buttons |
• Power On/Off Button
• LED/Wi-Fi Button
• WPS Button
• Reset Button |
| Power |
12 V ⎓ 2 A (US)
12 V ⎓ 1.5 A (EU) |
|
SOFTWARE
|
| Protocol |
• IPv4
• IPv6 |
