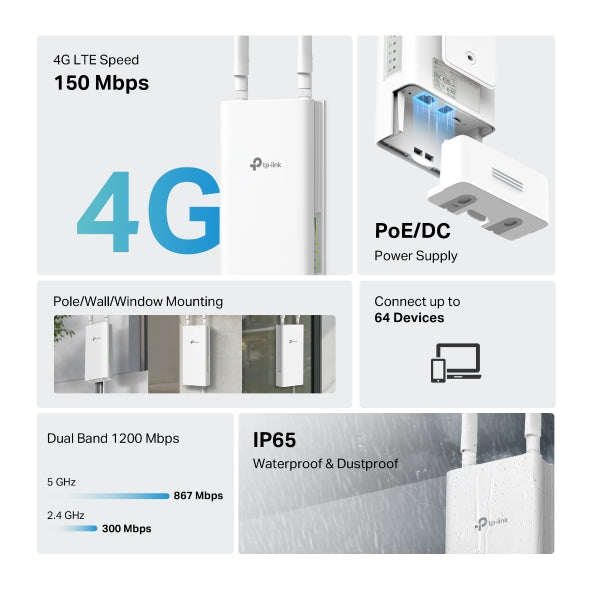

- AC1200 Dual-Band WiFi Technology
- Up to 867Mbps on 5GHz Band
- Up to 300Mbps on 2.4GHz Band
- 4G LTE Connectivity Support
- LTE Speeds up to 150Mbps Download
- IP65 Weatherproof Outdoor Design
- PoE Power Support
- Lightning and ESD Protection
- SIM Plug-and-Play Setup
Dependable 4G Wi-Fi Internet Connectivity
The Archer MR402-Outdoor supports 4G LTE for internet download speeds up to 150 Mbps, paired with dual-band Wi-Fi speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, enabling seamless networking experience. Simply insert your SIM card to enjoy reliable internet indoors and outdoors.
Durable Outdoor Design for Stable Performance
The Archer MR402-Outdoor offers versatile installation options—mount on a pole or a wall, or adhesive to a window. This flexibility allows for installation in a wide range of environments, from urban areas to rural settings. Easily find the best location for optimal signal, ensuring reliable connectivity.
Versatile Installation for Diverse Environments
The Archer MR402-Outdoor offers versatile installation options—mount on a pole or a wall, or adhesive to a window. This flexibility allows for installation in a wide range of environments, from urban areas to rural settings. Easily find the best location for optimal signal, ensuring reliable connectivity.
PoE/DC Power Support: Simplified Outdoor Setup
The Archer MR402-Outdoor features PoE and DC power supply, simplifying outdoor setup with flexible power options and ensuring reliable connectivity in diverse outdoor environments.
Easy Setup and Management
Set up Archer MR402-Outdoor in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
|
4G
|
| Network Type |
4G:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G:
HSPA+/HSPA/UMTS:B1/B5/B8 (2100/850/900 MHz) |
| Speed |
Download Speed 150 Mbps
Upload Speed 50 Mbps |
| SIM Type |
1× Nano SIM Card |
|
HARDWARE
|
| Interface |
1× 10/100 Mbps WAN/LAN Port (PoE In)
1× Nano SIM Card Slot
1 × DC Port |
| Buttons |
Reset Button |
| Power |
12V/1A
24V/0.5A Passive PoE
44-57V/0.35A 802.3af/at |
| Dimensions (W x D x H) |
8.9 x 3.9 x 2.2 in (226.6 x 100x 54.7mm) |
| Antennas |
2 × Detachable LTE Antennas |
|
WIRELESS FEATURES
|
| Wireless Standards |
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
| Reception Sensitivity |
5 GHz:
11a 54M: -77 dBm
11ac VHT20 MCS0: -95.5 dBm
11ac VHT20 MCS8: -73 dBm
11ac VHT40 MCS0: -93 dBm
11ac VHT20 MCS9: -68 dBm
11ac VHT80 MCS0: -90 dBm
11ac VHT20 MCS9: -65 dBm
2.4 GHz:
11g 54M: -74.5 dBm
11n HT20 MCS0: -92 dBm
11n HT20 MCS7: -73 dBm
11n HT40 MCS0: -89 dBm
11n HT40 MCS7: -70 dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
|
SOFTWARE FEATURES
|
| Quality of Service |
WMM, QoS |
| Security |
DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding |
| Operating Modes |
3G/4G Router, Wireless Router |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management Features |
Access Control, Local Management, Remote Management, Reboot Schedule |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
TP-Link DDNS, DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Controls, Local Management Control, Host List, Access Control |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz guest network x 1, 5 GHz guest network x 1 |
| VPN Server |
PPTP VPN, IPSec VPN, OpenVPN |
|
OTHERS
|
| Package Content |
• AC1200 Wireless Dual Band 4G LTE Outdoor Router Archer MR402-Outdoor
• 10-meter RJ45 Ethernet Cable
• PoE Adapter
• AC Power Cord
• Quick Installation Guide
• Window/Pole/Wall Mounting Kits
◇ DC power adapter sold separately |
| Requirements |
• Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser
*You are recommended to use the latest version
• Nano SIM Card |
| Certifications |
CE, RoHS |
| Environment |
Operating Temperature: -30°C~60°C (-22°F~140°F)
Storage Temperature: -40°C~70°C (-40 °F~158 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH |
