- 5G NR Connectivity Support
- AX3000 Dual-Band WiFi 6 Technology
- Up to 2402Mbps on 5GHz Band
- Up to 574Mbps on 2.4GHz Band
- Up to 4.67Gbps 5G Download Speed
- 2.5GbE PoE Port
- IP66 Weatherproof Design
- EasyMesh Compatible
- Flexible Outdoor Mounting Options
Robust WiFi for Various Outdoor Spaces
Durable and versatile, the Archer NX500‑Outdoor delivers reliable connectivity across diverse outdoor settings, seamlessly powering all your outdoor devices and activities.
Unrivaled 5G Speed
Insert a SIM card to enjoy 5G download speeds of up to 4.67 Gbps and 4G speeds up to 1.6 Gbps. Experience rock-solid connectivity that delivers smooth HD streaming, responsive online gaming, and rapid large file transfers.
Powerful Dual-Band Wi-Fi 6
Experience high-speed Wi-Fi 6 outdoors. Enjoy smooth streaming and stable connections outside with speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
Outdoor Placement, Superior Signal
Installing outdoors captures stronger 5G signals by reducing loss from walls and obstructions—ensuring a reliable connection even in areas with weaker coverage.
Durable Outdoor Design for Stable Performance
Built to endure, the IP66-rated Archer NX500‑Outdoor operates from ‑30°C to +60°C and resists lightning (6kV) and ESD (15kV), ensuring reliable connectivity in harsh outdoor environments.

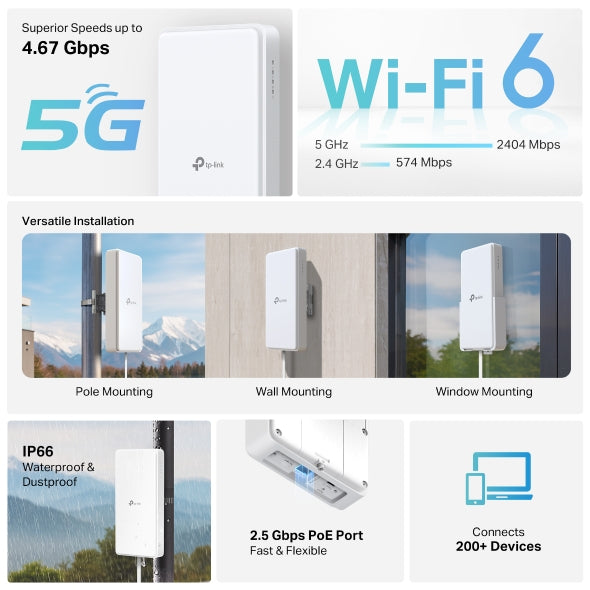

Versatile Installation for Diverse Environments

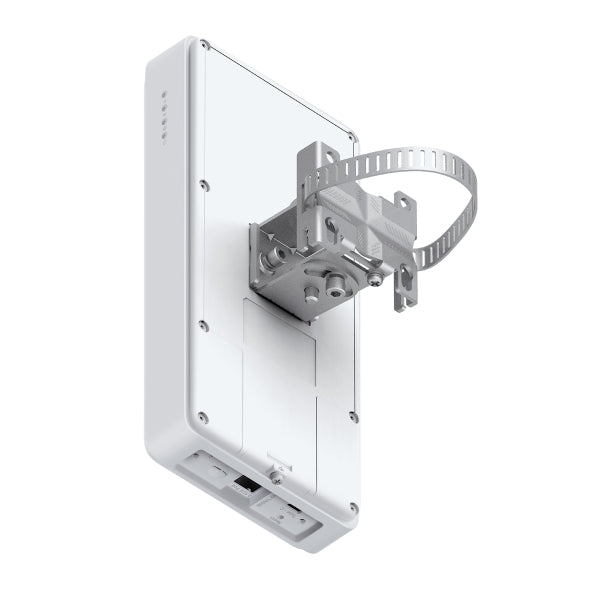

The Archer NX500-Outdoor supports versatile mounting on a pole, wall, or window, adapting easily from urban to rural settings. This flexibility helps you find the optimal location for strong signal reception, ensuring fast and reliable 5G connectivity.
High‑Speed, Flexible PoE
Equipped with a 2.5 Gbps port supporting both passive and standard 802.3at PoE, the Archer NX500‑Outdoor delivers power and ultra‑fast data through one cable—simplifying outdoor installation while ensuring high‑speed, reliable connectivity indoors.
Easy Setup and Management
Set up the Archer NX500-Outdoor in minutes via its web interface or Tether app. Then manage settings like parental controls and access control from any iOS/Android device. Tether also delivers automatic firmware updates for optimal performance and security.
|
|
| Network Type |
5G:
]N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/1500/1500/3700/3500 MHz)
4G:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32(2100/1800/850/2600/900/800/700/1500 MHz)
TDD-LTE: B38/B40/B41/B42/B43(2600/2300/2500/3500/3700 MHz)
3G:
DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz) |
| Speed |
5G:
Download Speed 4.67 Gbps
Upload Speed 1.25 Gbps
4G LTE Cat19:
Download Speed 1.6 Gbps
Upload Speed 211 Mbps |
|
HARDWARE FEATURES
|
| Interface |
1 × 2.5Gbps WAN/LAN Port (PoE In)
1 × Nano SIM Card Slot
1 × Type-C Port (only for debug) |
| Button |
RESET Button |
| External Power Supply |
Power: 48V/0.5A
802.3at PoE: 42-57V/0.6A |
| Dimensions ( W x D x H ) |
9.2 x 4.3 x 1.4 in (233x 110x 37 mm) |
| Antenna |
Internal NR/LTE Antennas + Internal Wi-Fi Antennas |
|
SOFTWARE FEATURES
|
| Quality of Service |
Bandwidth Control |
| Operating Modes |
3G/4G/5G Router, Wireless Router |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management Features |
Access Control, Local Management, Remote Management, reboot schedule |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
TP-Link, DynDns, NO-IP |
| Firewall Security |
DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz guest network x 1, 5 GHz guest network x 1 |
| VPN Server |
PPTP VPN, IPSec VPN, OpenVPN |
|
WIRELESS FEATURES
|
| Wireless Standards |
IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
574 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz |
| Reception Sensitivity |
• 5 GHz:
11ax HE20: -64 dBm, 11ax HE20 MCS11 -64 dBm, 11ax HE20 MCS0 -94 dBm
11ax HE40: -61 dBm, 11ax HE40 MCS11: -61 dBm, 11ax HE40 MCS0 -91 dBm
11ax HE80: -59 dBm, 11ax HE80 MCS11: -59 dBm, 11ax HE80 MCS0 -89 dBm
11ac VHT20: -70 dBm, 11ac VHT20 MCS8: -70 dBm
11ac VHT40: -67 dBm, 11ac VHT40 MCS9: -67 dBm
11ac VHT80: -64 dBm, 11ac VHT80 MCS9: -64 dBm
• 2.4 GHz:
11ax HE20: -66 dBm, 11ax HE20 MCS11: -66 dBm, 11ax HE20 MCS0 -94 dBm
11ax HE40: -62 dBm, 11ax HE40 MCS11: -62 dBm, 11ax HE40 MCS0 -91 dBm
11ac VHT20: -71 dBm, 11ac VHT20 MCS8: -71 dBm
11ac VHT40: -67 dBm, 11ac VHT40 MCS9: -67 dBm |
| Wireless Security |
WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3 encryptions |
| Wireless Function |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| EIRP (CE) |
≤20dbm(2.4GHz)
≤23dbm(5G band1/band2)
≤30dbm(5G band3) |
|
OTHERS
|
| Certification |
CE, RoHS |
| Package Content |
• 5G AX3000 Wi-Fi 6 Outdoor Router Archer NX500-Outdoor
• 10-meter Flat RJ45 Ethernet Cable
• PoE Adapter
• AC Power Cord
• Grounding Terminal
• Quick Installation Guide
• Window/Pole/Wall Mounting Kits |
| Requirements |
• Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser
*You are recommended to use the latest version
• Nano SIM Card |
| Environment |
• Operating Temperature: -30℃~60℃ (-22°F~140°F)
• Storage Temperature: -40°C~70°C (-40 °F~158 °F)
• Operating Humidity: 5%~90% RH
• Storage Humidity: 5%~90% RH |
