- 6-Port Fast Ethernet Switch
- 4x PoE+ Ports
- 10/100Mbps Ports
- 67W PoE Budget
- Up to 30W Per PoE Port
- Unmanaged Switch

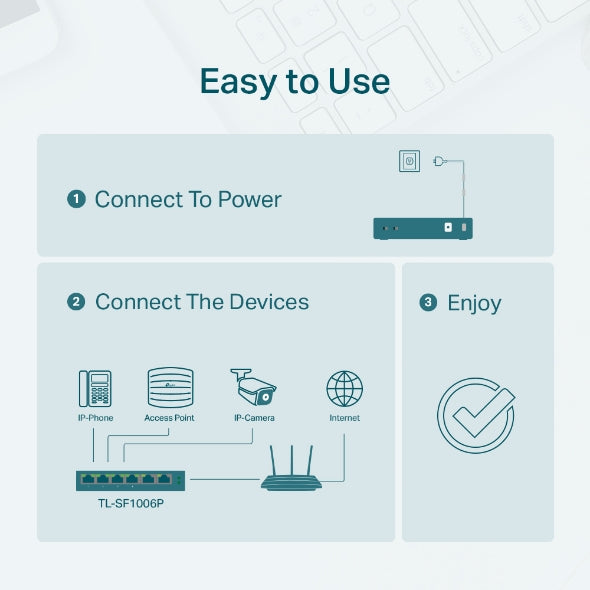

- Plug-and-Play
- Desktop Design
- IEEE 802.3af PoE
- IEEE 802.3at PoE+
- TL-SF1006P Model
- Fanless Design
- Wall Mountable
- TP-Link PoE Switch

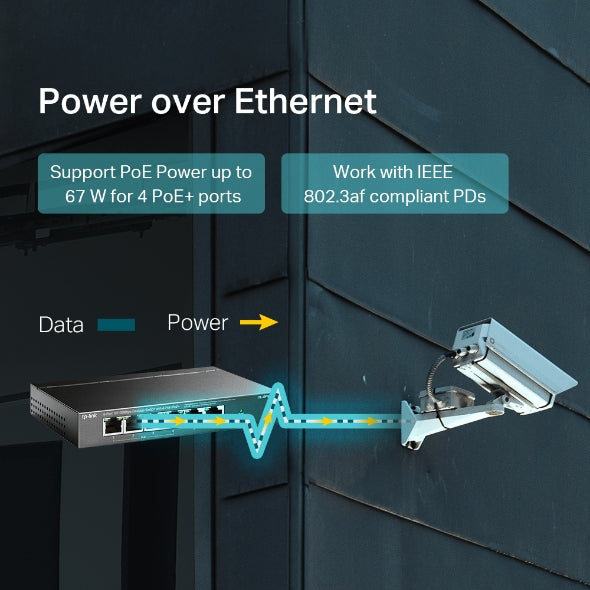

Dedicated 4-Port PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 30 W on each PoE port. The total 67 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.
|
|
| Interface |
• 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX
|
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
|
| Fan Quantity |
Fanless |
| Physical Security Lock |
Yes |
| External Power Supply |
External Power Adapter (Output: 54 V DC / 1.3 A) |
| Packet Forwarding Rate |
892.8 Kpps |
| PoE Ports (RJ45) |
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 67 W
|
| Mac Address Table |
2K |
| Jumbo Frame |
2 KB |
| Switching Capacity |
1.2 Gbps |
| Dimensions ( W x D x H ) |
6.2 x 4.0 x 1.0 in
(158 x 101 x 25 mm) |
| Max. Power Consumption |
• 1.9 W (with no PD connected)
• 74 W (with 67 W PD connected) |
| Max. Heat Dissipation |
• 6.5 BTU/h(with no PD connected)
• 252.3 BTU/h(with 67 W PD connected)
|
|
SOFTWARE FEATURES
|
| Advanced Features |
• Compatible with IEEE 802.3af/at compliant power devices (PDs)
• Extend mode switch (Ports 1–4)
• Priority mode switch (Ports 1–2)
• MAC address auto-learning and auto-aging
• IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode
|
| Transmission Method |
Store-and-forward |
|
OTHERS
|
| Certification |
FCC, CE, RoHS |
| Package Content |
• TL-SF1006P
• Power Adapter
• Installation Guide |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
