- 16-Port Gigabit Easy Smart Switch
- 8x PoE+ Ports
- Desktop and Rackmount Design
- 32Gbps Switching Capacity
- 8K MAC Address Table
- Easy Smart Management Features
- Gigabit Ethernet Connectivity
- QoS and VLAN Support
- Energy Efficient Operation
- Business Network Deployment
What This Product Does

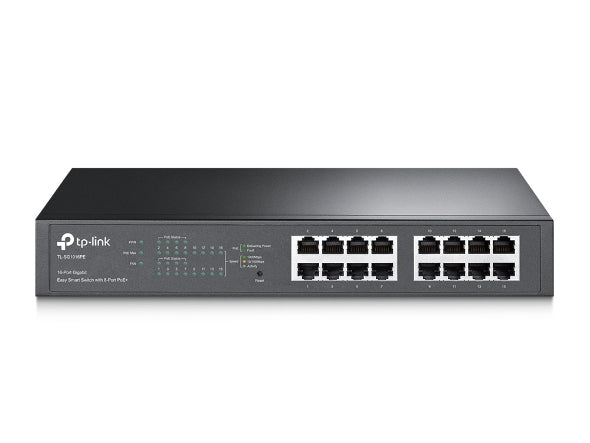

The TL-SG1016PE is a 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.
Overload Arrangement
TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 110W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.
Port Priority Function
*Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 5 are using 30w (maximum power per port is 30W), the system power is 110w in total (PoE max LED will be green if all PoE PDs power consumption is >= 110W). If there is an additional PD inserted to Port 4 with 20w then the system will cut off Port 5 to protect the system, this means Port 1, 2 ,3, will use 90w, and Port 4 will use 20w, and no power will be supplied to Port 5.
Easy To Use

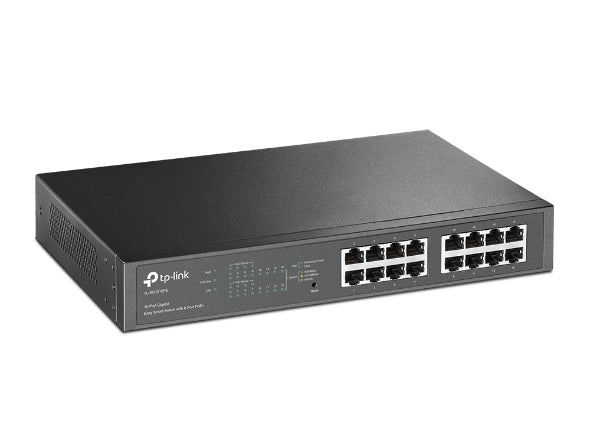

TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
HARDWARE FEATURES
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1

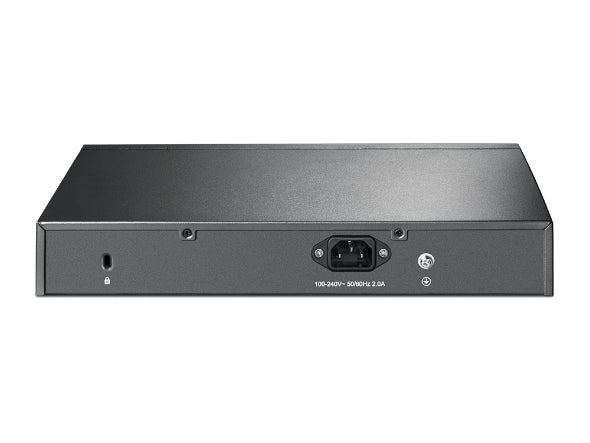

Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum (PoE on): 124.4W (220V/50Hz)
Maximum (PoE off): 14.4W (220V/50Hz)
PoE+ Ports(RJ45) 8 Ports
Backbound Bandwidth 32 Gbps
Mac Address Table 8K
Buffer Size 1.5 Mbits
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
SOFTWARE FEATURES
Transfer Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1016PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption 9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
