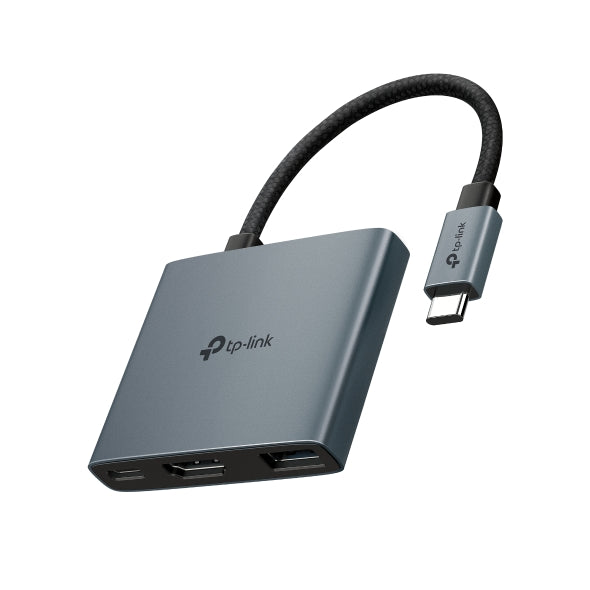

The TP-Link UH3020C USB-C 3-in-1 Hub adds HDMI, USB-A data and USB-C Power Delivery connectivity to a compatible USB-C device. Its compact aluminium-alloy case and attached braided cable suit portable workspaces.

Key Benefits

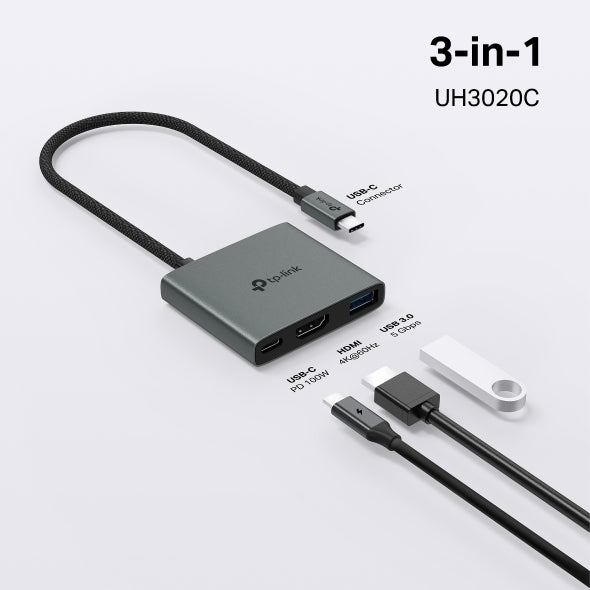

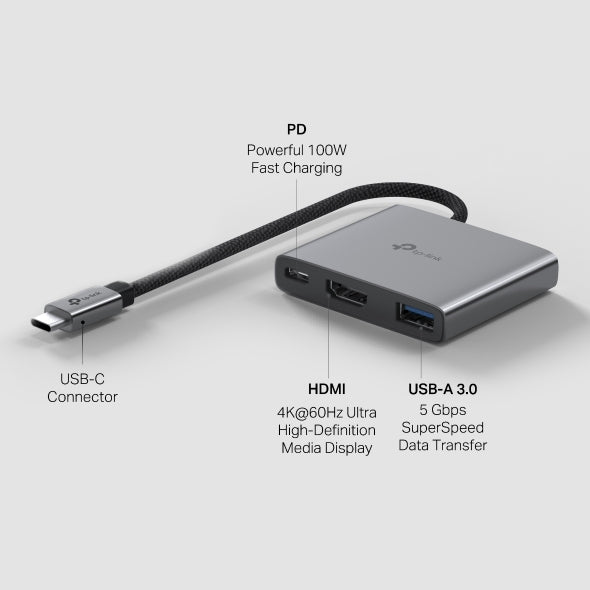

• Three connections from one USB-C host port.
• HDMI output supporting up to 4K at 60Hz.
• USB-C Power Delivery interface supporting up to 100W.
• USB-A data port supporting up to 5 Gbps.
• Driver-free plug-and-play installation on supported systems.

Connect a display and USB accessory

Use the HDMI connection for an external display and the USB-A port for data or peripherals. Check your host device’s compatibility with the display connection and required resolution. Actual transfer rates vary with connected devices and operating conditions.

Power Delivery alongside data

The USB-C Power Delivery interface supports up to 100W while the hub is in use. Match the power supply, charging cable and host device to the charging requirement; the interface rating is not a guarantee that every connected device will charge at 100W.

Compact construction

The aluminium-alloy enclosure measures 52.7 × 60.5 × 12.2mm and has an attached 180mm braided cable. Plug-and-play operation supports the listed operating systems, while available functions still depend on the connected hardware.

Technical Specifications

Included Items

• TP-Link UH3020C hub
• Quick Installation Guide
