• Cloud Gateway

• WiFi 7

• 10G SFP+ Port

• 2.5GbE Port

• 30+ Connected Devices

• 300+ Users Supported

• UniFi Network Management

• Dream Router 7

• UDR7 Model

• 1 Year Warranty

All-in-One WiFi 7 Cloud Gateway
The UDR7 is a compact desktop cloud gateway featuring integrated WiFi 7, a 2.5 GbE PoE switch, 10G SFP+ WAN port, and microSD storage. It supports the full UniFi application suite, advanced security features, and multi-WAN routing—making it ideal for small offices, retail spaces, and high-performance home networks.

Product Specifications

UniFi Application Suite
Network
✓
Protect
✓
Access
✓
Talk
✓
Connect
✓
Managed UniFi Devices
30+
Managed Cameras
(5) HD
(2) 2K
(1) 4K
Simultaneous Users Connected
300+
Max. WAN Port Count
4
Default WAN Ports
(1) 10G SFP+
(1) 2.5 GbE RJ45

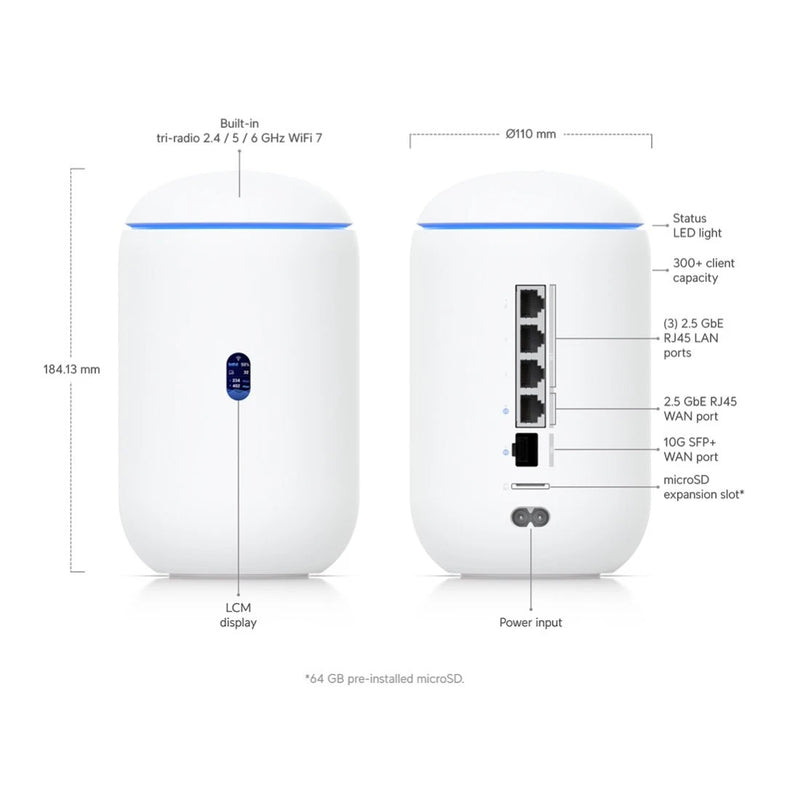

Port Layout
2.5 GbE RJ45
4 (1 PoE)
(2.5G/1G/100M/10M)
10G SFP+
1
(10G/1G)
IDS/IPS Throughput
2.3 Gbps
Form Factor
Compact desktop
Coverage Area
160 m² (1,750 ft²)

Security
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓

VPN & SD-WAN
License-Free SD-WAN
✓
Site-to-Site VPN
Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server
Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client
OpenVPN
✓
WireGuard
✓

Networking
Multi-WAN Load Balancing
✓
Dynamic Routing
OSPF
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
2,000
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓
Virtual Network Override
✓
All Traffic Flows
—

Integrated WiFi
WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput
6 GHz
5.7 Gbps
5 GHz
4.3 Gbps
2.4 GHz
688 Mbps
MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Antenna Gain
6 GHz
6 dBi
5 GHz
7 dBi
2.4 GHz
5 dBi
Max. TX Power
6 GHz
24 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs
4 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

Hardware
NVR Storage
Pre-installed 64GB microSD for NVR
Expansion Slot
MicroSD Card
PoE Budget
15.4W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44-57V
Max. Power Consumption
26W (Excluding PoE output)
Power Method
Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 50W
Supported Voltage Range
100–240V AC
Heat Dissipation
89 BTU/hr (Excluding PoE Output)
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
Weight
1.1 kg (2.4 lb)
Enclosure Material
Polycarbonate
LCM Display
0.96" status display
Management
Ethernet
Bluetooth
LEDs
System
✓
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 05650-25-08356

Software
VLAN
802.1Q
Guest Traffic Isolation
✓
Application Requirements
UniFi Network
Version 9.0.108 and later
