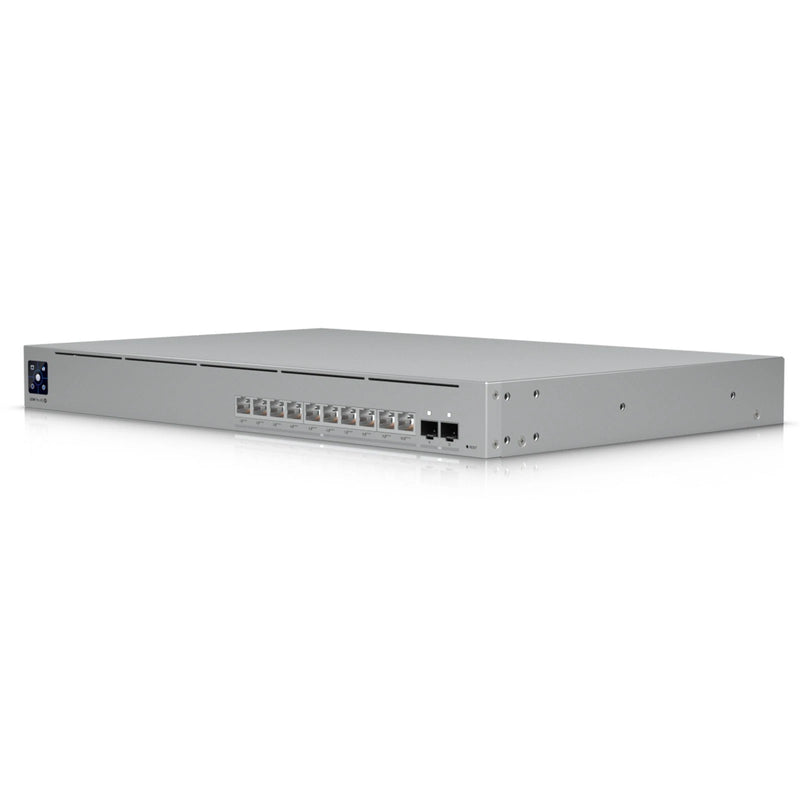

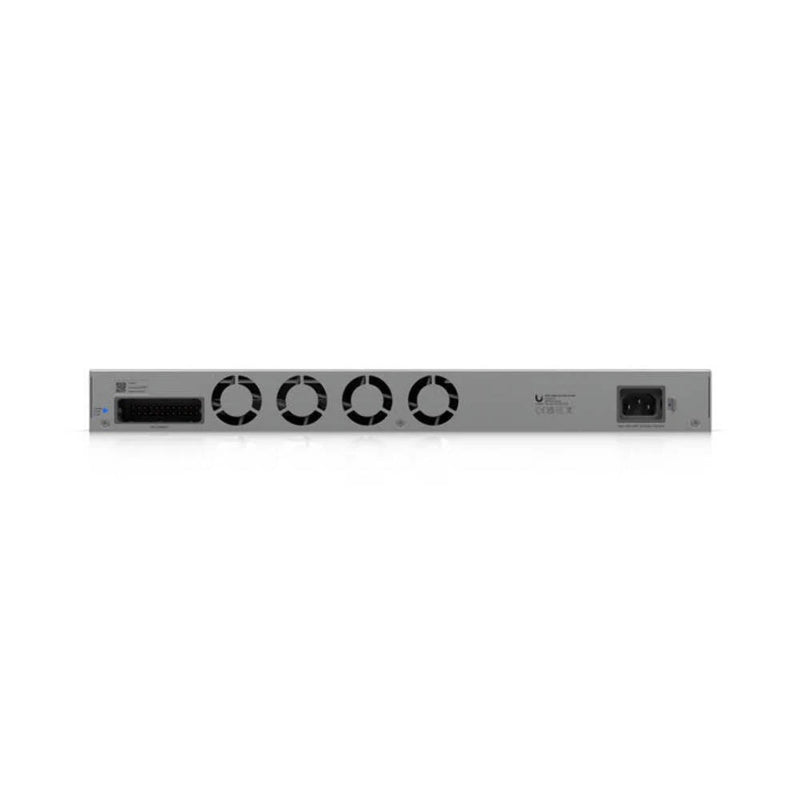

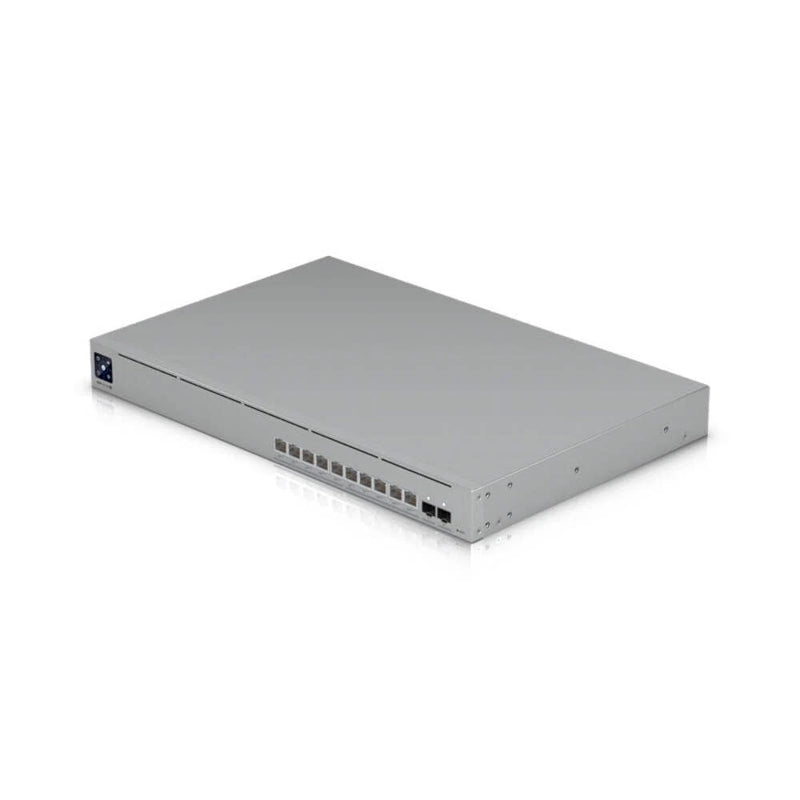

• 10x 10GbE Ports

• PoE+++ Support

• 2x 10G SFP+ Ports

• Layer 3 Switching

• Etherlighting Technology

• Managed Switch

• 1U Rackmount Design

• UniFi Network Compatible

• Pro XG 10 PoE Model

• 10 Gigabit Networking

Performance

Dimensions
442.4 x 285 x 44 mm
(17.4 x 11.2 x 1.7")

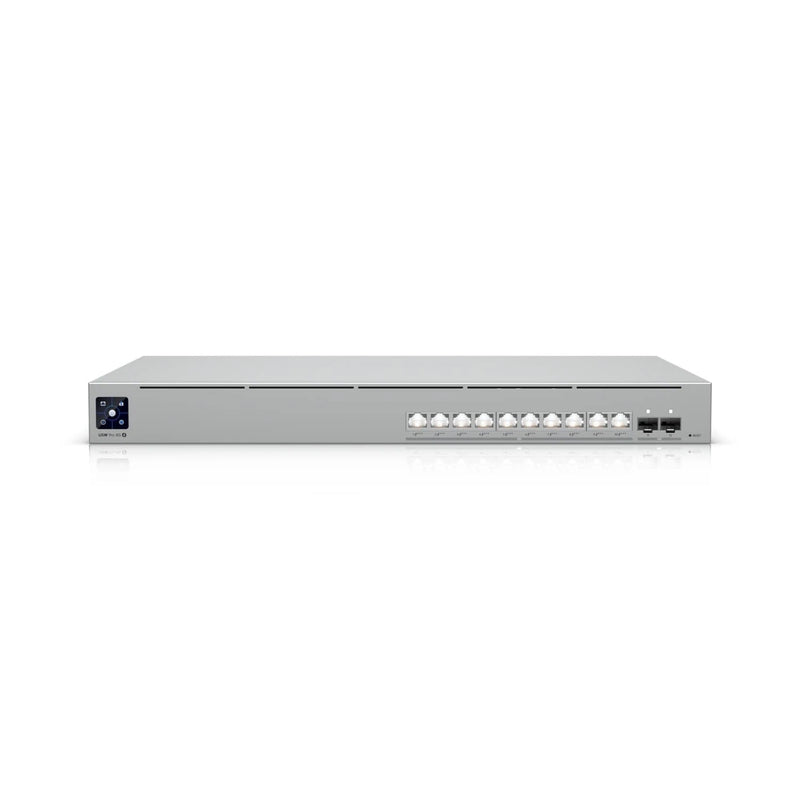

Port Layout
10 GbE RJ45
10 (All PoE+++)
(10G/5G/2.5G/1G/100M)
10G SFP+
2
(10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
400W
Redundancy
DC Power Backup
Layer 3
✓
Form Factor
Rack mount (1U)
Etherlighting™
✓

Performance
Switching Capacity
240 Gbps
Total Non-Blocking Throughput
120 Gbps
Forwarding Rate
179 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
IPv4 Static Routes
256
Packet Buffer Size
2 MB
Access Lists
IPv4
128
MAC
128

Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓

Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓

Hardware
PoE Ports
PoE+++
10
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
65W (Excluding PoE output)
520W (Including PoE output)
Power Method
(1) Universal input, 100–240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 550W
Supported Voltage Range
100–240V AC
Management
Ethernet
AR
Weight
Without mounting brackets: 4.6 kg (10.14 lb)
With mounting brackets: 4.7 kg (10.36 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm
(15.7-47.2"")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
SFP+
✓
LEDs
RPS
✓
System
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 05660-25-08356

Software
Application Requirements
UniFi Network
Version 9.1.120 and later
