• 24-Port Switch

• 16x 10GbE Ports

• 8x 2.5GbE Ports

• 2x 25G SFP28 Ports

• Layer 3 Switching

• Etherlighting Technology

• Managed Switch

• DC Power Backup Ready

• Rack Mountable

• Pro XG 24 Model

Product Description

Dimensions
442 x 480 x 44 mm
(17.4 x 18.9 x 1.7")

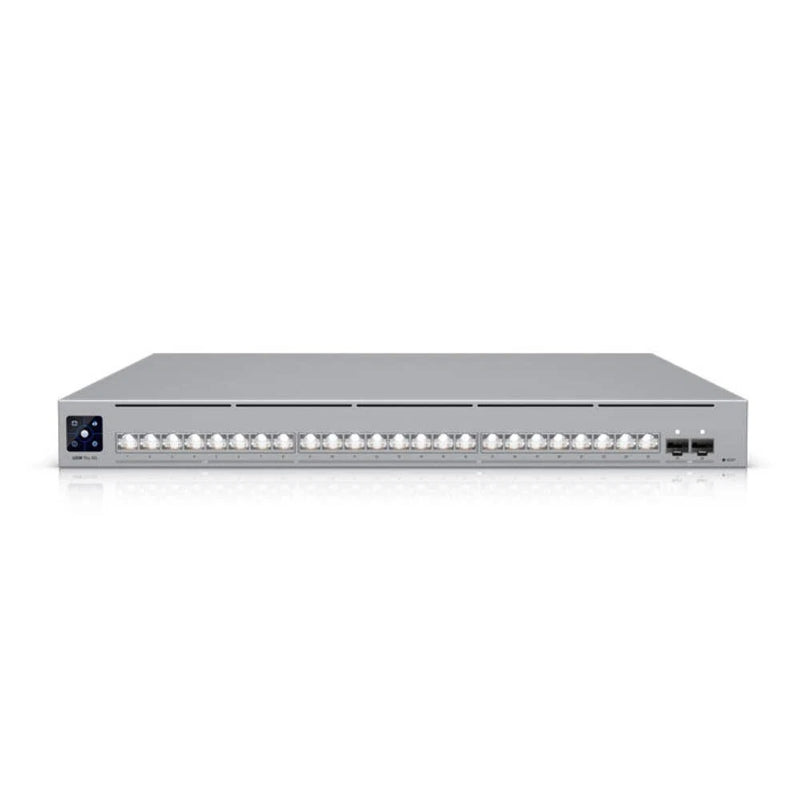

Port Layout
2.5 GbE RJ45
8
(2.5G/1G/100M/10M)
10 GbE RJ45
16
(10G/5G/2.5G/1G/100M/10M)
25G SFP28
2
(25G/10G/1G)
Redundancy
DC Power Backup
Layer 3
✓
Form Factor
Rack mount (1U)
Etherlighting™
✓

Performance
Switching Capacity
460 Gbps
Total Non-Blocking Throughput
230 Gbps
Forwarding Rate
342 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
IPv4 Static Routes
512
Packet Buffer Size
8 MB
Access Lists
IPv4
256
MAC
256

Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓

Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓

Hardware
Max. Power Consumption
150W

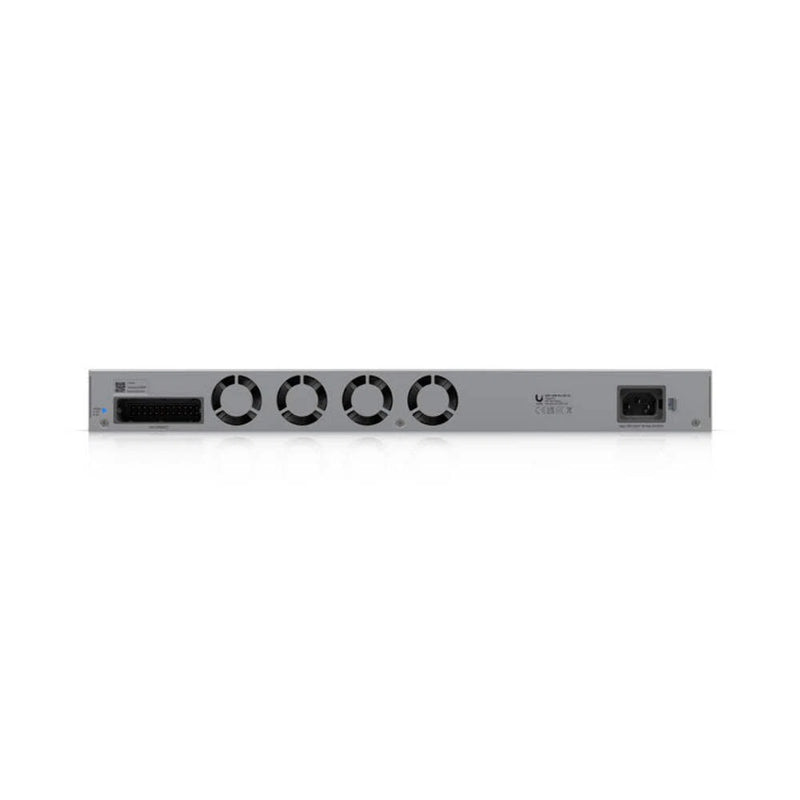

Power Method
(1) Universal input, 100–240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 200W
Supported Voltage Range
100–240V AC
Management
Ethernet
AR
Weight
Without mounting brackets: 7.2 kg (15.9 lb)
With mounting brackets: 7.3 kg (16.1 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
SFP28
✓
LEDs
RPS
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 06464-25-08356

Software
Application Requirements
UniFi Network
Version 9.0.114 and later
