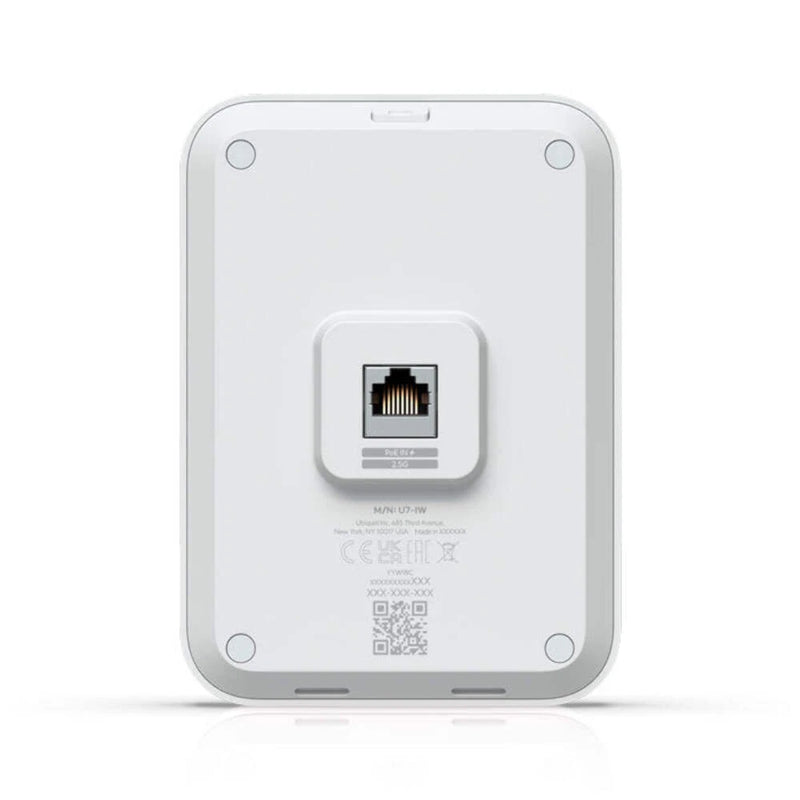

U7 In-Wall
Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.
Seamless WiFi Installations
An interior designer's dream. Wall-mountable access points that enable seamless WiFi installations.
Designed for Massive Scale
These latest U7 APs are built for large-scale deployments, all powered by Ubiquti's continuously evolving UniFi software engine. Ubiquiti are committed to bringing you the best in network management and performance, and these new devices are just the beginning.
Wi-Fi 7 Performance
The U7 In-Wall access point leverages the latest Wi-Fi 7 technology, delivering enhanced wireless speeds and reduced latency. Its discreet in-wall form factor seamlessly integrates into any environment.
Discreet, Powerful WiFi
A sleek, wall-optimised WiFi 7 AP crafted for private room deployments in hotels, offices, and multi-unit residences. It’s designed to blend seamlessly into any space while delivering the next level of wireless performance.

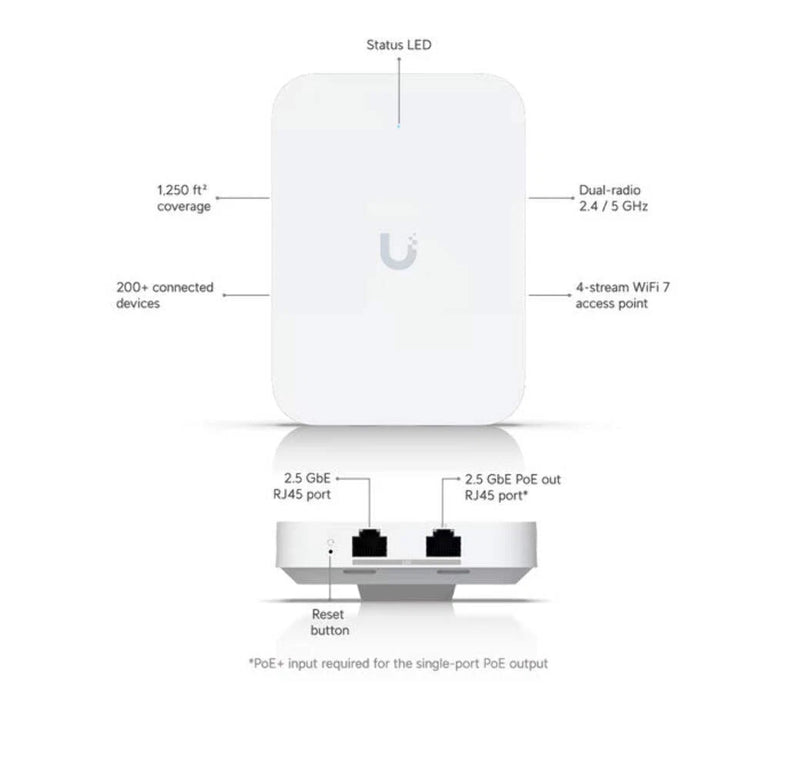

PoE Passthrough
Featuring PoE passthrough capabilities, the U7 In-Wall can power additional devices such as VoIP phones or other network equipment directly through its integrated switch. This reduces the need for extra power sources and simplifies your workspace setup.
Product Description
Overview
Dimensions
137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
Coverage Area
115 m² (1,250 ft²)
Mounting
Wall (Metal Wall Mount Included)
Power Method
PoE, PoE+ (Required for PoE output)
Performance
MIMO
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain
5 GHz: 8 dBi
2.4 GHz: 4 dBi
Max. TX Power
5 GHz: 24 dBm
2.4 GHz: 23 dBm
Supported Data Rates
802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
802.11v BSS Transition Management
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes
Private Pre-Shared Key (PPSK)
Yes
Client Device Isolation
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Hardware
Max. Power Consumption
13W (Excluding PoE output)
Supported Voltage Range
42.5—57V DC
Networking Interface
(3) 2.5 GbE RJ45 ports
Built-In Switch
(1) PoE+ input and (1) PoE output
Enclosure Material
Polycarbonate, aluminium alloy
Mount Material
Aluminium alloy
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
UniFi Network
Version 9.0.114 and later
UniFi OS
iOS™ Version 10.20.2 and later
Android™ Version 10.21.7 and later
