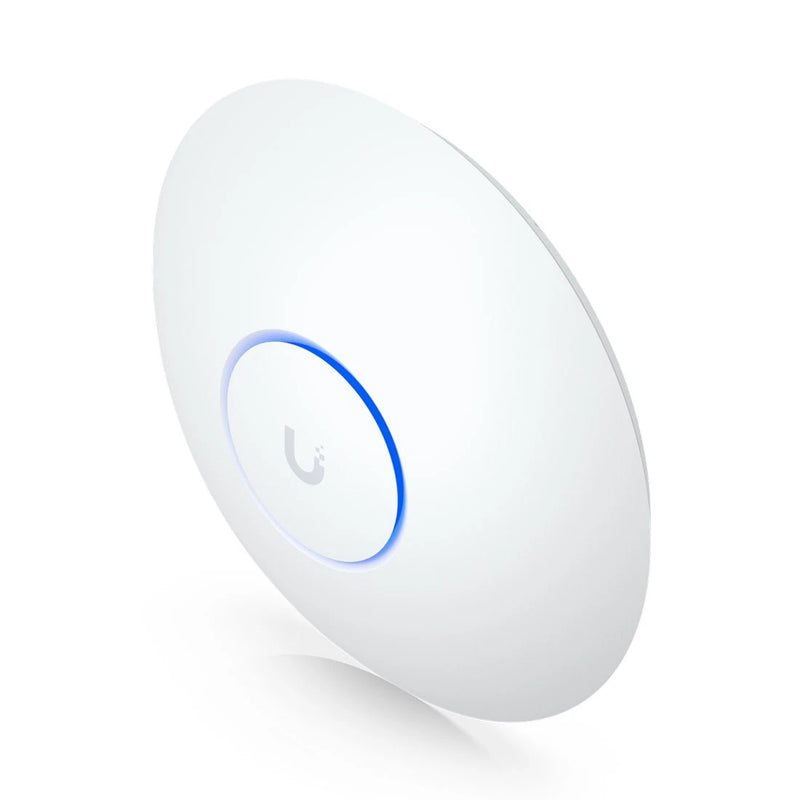

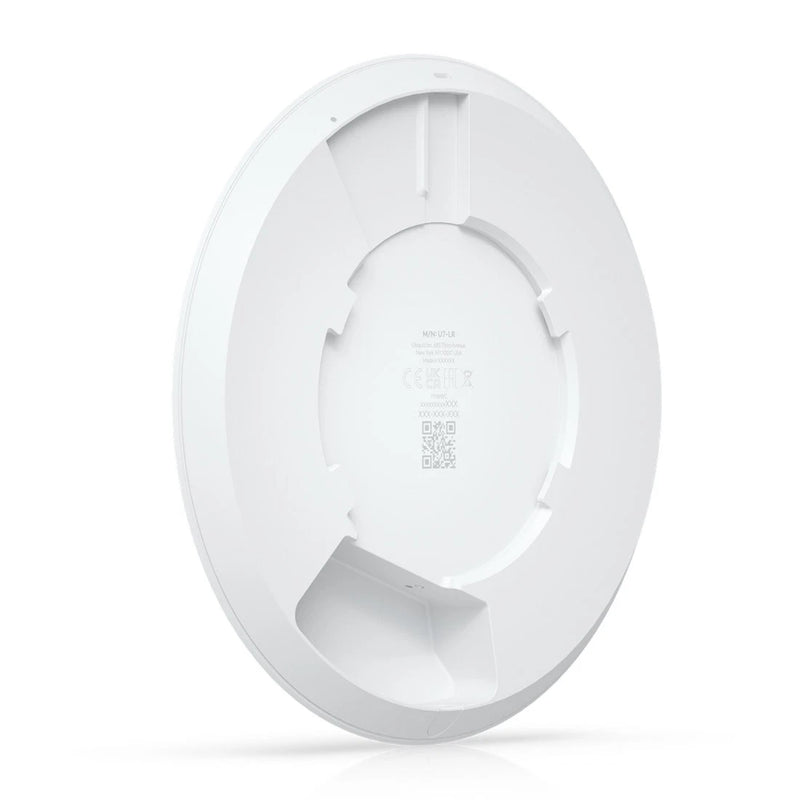

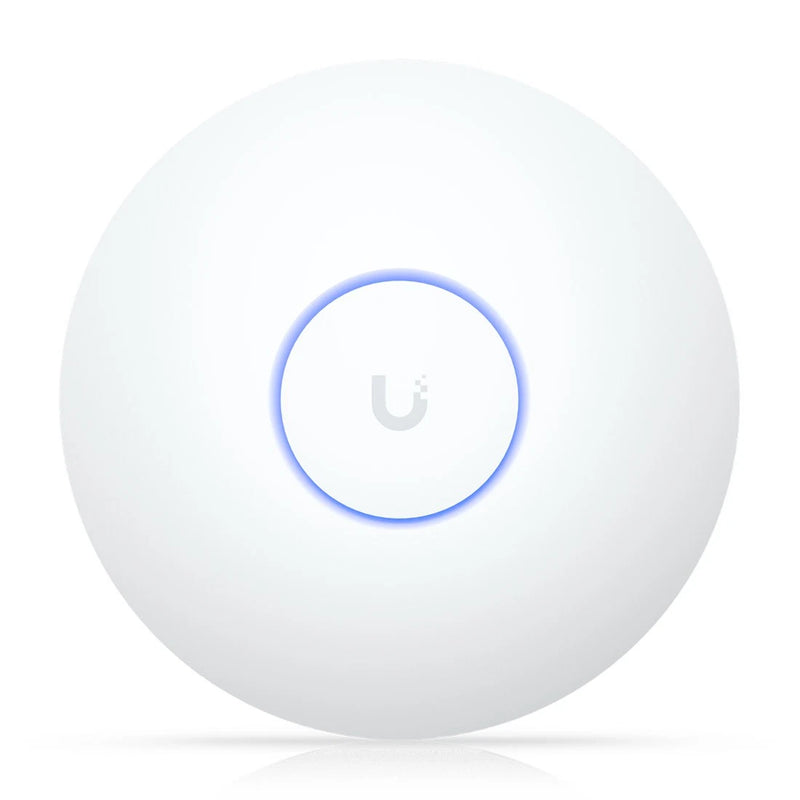

Name: Ubiquiti U7 Long-Range WiFi 7 Access Point 2.5GbE 5 Stream Ceiling Mount
Brand: UBIQUITI
SKU: U7-LR
Price: 305.5 AUD
Availability: InStock

Ubiquiti U7 Long-Range WiFi 7 Access Point 2.5GbE 5 Stream Ceiling Mount

Ubiquiti U7 Long-Range WiFi 7 Access Point 2.5GbE 5 Stream Ceiling Mount

$305.50 - $305.50

$305.50

$305.50 - $305.50

$305.50

Availability:

in stock, ready to be shipped

SKU U7-LR

by UBIQUITI

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

Warranty information

1 Year Manufacturer's Warranty

WiFi 7 Access Point
Ceiling-Mount Design
5 Spatial Streams
2.5GbE Uplink Port
Long-Range Wireless Coverage
Covers Up to 160m²
Supports 300+ Connected Devices
PoE Powered
UniFi Network Management
High-Speed Wireless Connectivity

The WiFi Industry Standard
The UniFi U7 LR is an advanced Wi-Fi 7 access point designed for both business and high-density environments. It provides faster speeds and better reliability through its five spatial streams and longer range, allowing for more device connections and reduced interference.

Exceptional Device Capacity
Built for scalability, U7 LR can accommodate over 300 devices, making it ideal for environments with heavy traffic, such as offices or campuses.

Reliable Performance
Its 2.5 Gbps uplink and PoE power support ensure that it can handle significant network demands efficiently and cost-effectively.

Product Description

Dimensions

Ø175.7 x 43 mm
(Ø6.9 x 1.7")

WiFi Standard

WiFi 7

Spatial Streams

5

Coverage Area

160 m² (1,750 ft²)

Max. Client Count

300+

Uplink

2.5 GbE

Mounting

Ceiling, Wall
(Plastic Mounting Plate included)

Power Method

PoE

Performance

MIMO

5 GHz: 3 x 3 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz: 4.3 Gbps (BW160)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain

5 GHz: 6 dBi
2.4 GHz: 4 dBi

Max. TX Power

5 GHz: 27 dBm
2.4 GHz: 26 dBm

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes

802.11v BSS Transition Management

Yes

802.11r Fast Roaming

Yes

802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption

14W

Includes PoE Adapter

—

Supported Voltage Range

42.5—57V DC

Networking Interface

(1) 2.5 GbE RJ45 port

Weight

448 g (15.8 oz)

Management

Ethernet

Enclosure Material

Polycarbonate, aluminum alloy

Mount Material

Polycarbonate, galvanized steel (SGCC)

LEDs

System: White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)

NDAA Compliant

Yes

Certifications

CE, FCC, IC

Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network: Version 9.1.120 and later

Mobile App

iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
