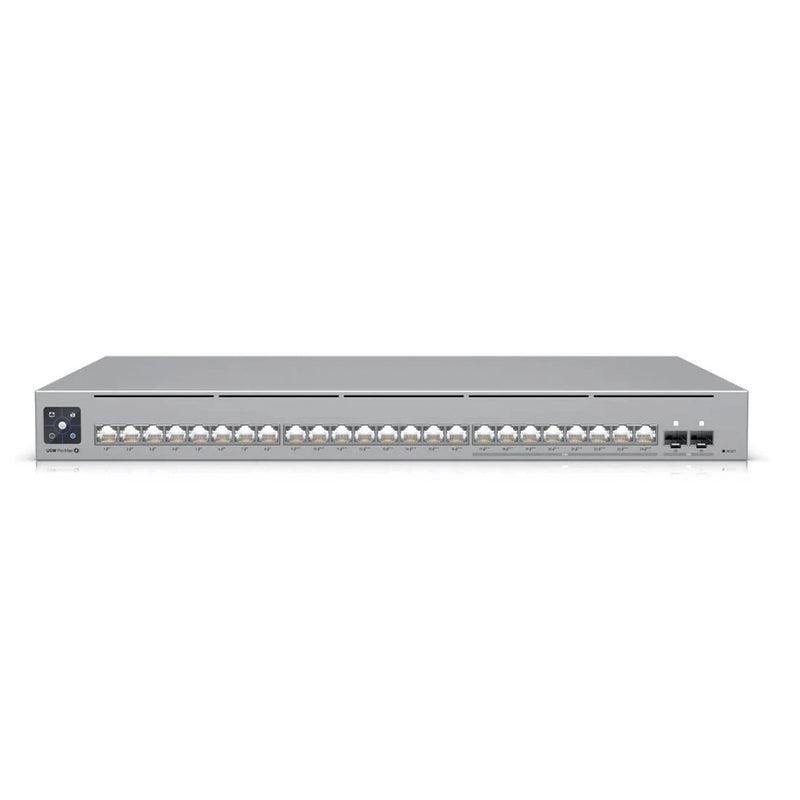

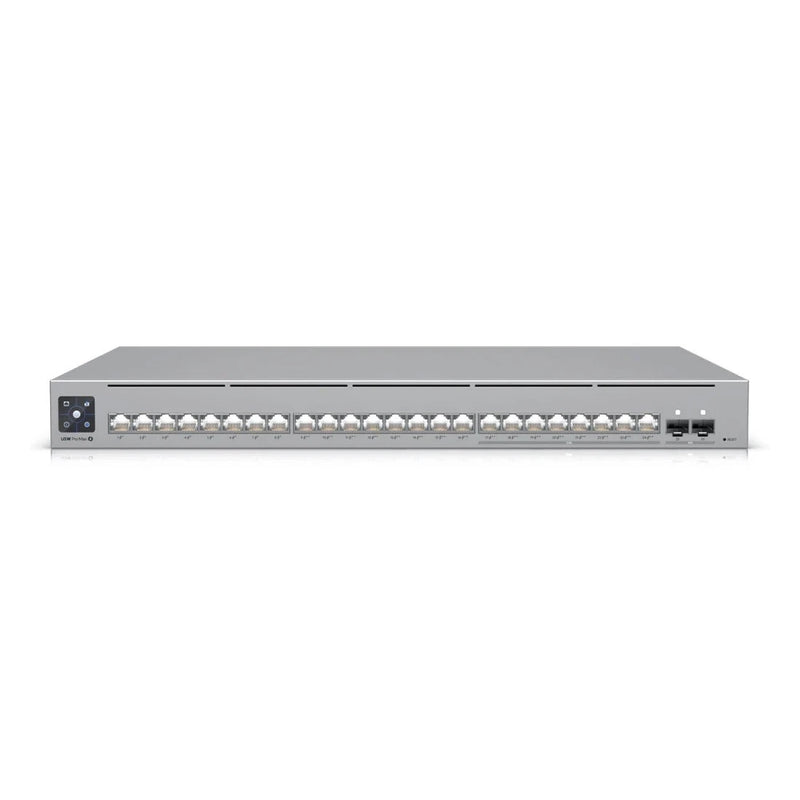

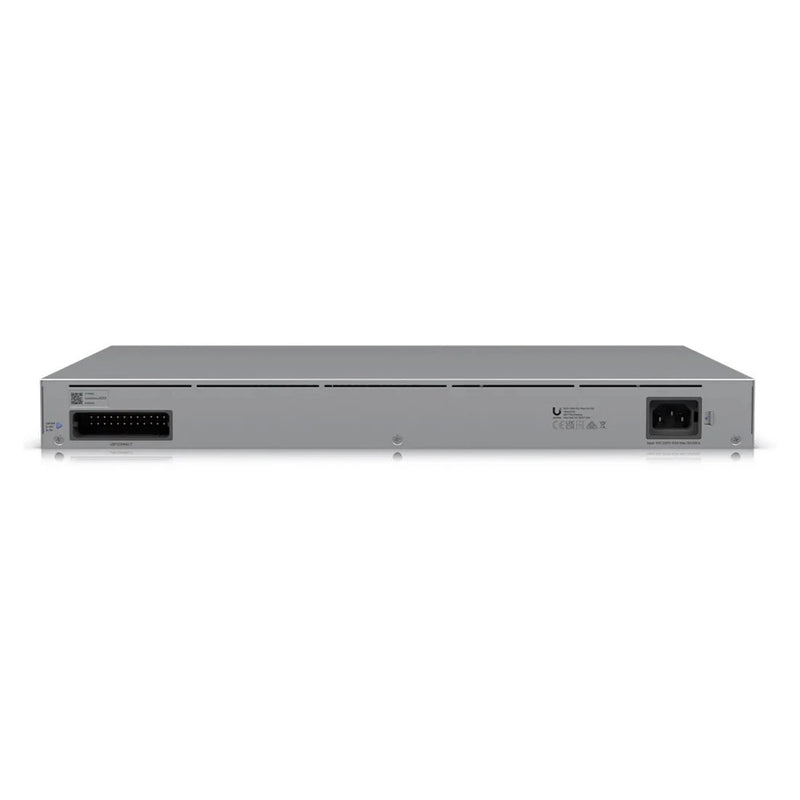

Ubiquiti UniFi 24 Port PoE Switch 400W Layer 3 2.5GbE PoE++ 10G SFP+
Ubiquiti UniFi 24 Port PoE Switch 400W Layer 3 2.5GbE PoE++ 10G SFP+
Ubiquiti UniFi 24 Port PoE Switch 400W Layer 3 2.5GbE PoE++ 10G SFP+

Ubiquiti UniFi 24 Port PoE Switch 400W Layer 3 2.5GbE PoE++ 10G SFP+

$1,533.30 - $1,533.30
$1,533.30
$1,533.30 - $1,533.30
$1,533.30
Availability:
in stock, ready to be shipped
SKU USW-PRO-MAX-24-POE
by UBIQUITI

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

Warranty information

1 Year Manufacturer's Warranty

  • 24-Port Switch
  • 400W PoE Budget
  • 8x 2.5GbE PoE++ Ports
  • 16x Gigabit Ethernet Ports
  • 8x PoE+ Ports
  • 8x PoE++ Ports
  • 2x 10G SFP+ Ports
  • Layer 3 Switching
  • Managed Switch
  • Rack Mountable



Switching Evolved
High-performance switching with up to 2.5 GbE, PoE++ output, and Etherlighting™ to make cable management a dream. Ideal for 6 GHz capable WiFi access points.

Introducing Etherlighting™
Pair with UniFi Etherlighting Patch Cables for optimal brightness.

High-Performance Layer 3 Switching
The UniFi Switch Pro Max 24 PoE is a professional-grade, Layer 3 Etherlighting™ switch designed for high-throughput environments. It offers advanced routing capabilities to efficiently manage complex network traffic.

Enhanced Network Management
Managed through the UniFi Network Controller, the UniFi Switch Pro Max 24 PoE offers centralised configuration, monitoring, and management.

Durable Construction
Built with an SGCC steel enclosure, the UniFi Switch Pro Max 24 PoE supports rack depths ranging from 400 to 1200 mm, making it suitable for various rackmount installations.

Performance

Overview
Dimensions
442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Port Layout
1 GbE RJ45:
16 (8 PoE+; 8 PoE++) (1G/100M/10M)

2.5 GbE RJ45:
8 (All PoE++) (2.5G/1G/100M/10M)

10G SFP+:
2
Max. PoE Output
Up to PoE++
Total PoE Availability
400W
Redundancy
DC Power Backup

* With UniFi RPS

Layer 3
Yes
Form Factor
Rack mount (1U)
Etherlighting™
Yes
Performance
Switching Capacity
112 Gbps
Total Non-Blocking Throughput
56 Gbps
Forwarding Rate
83 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries: 6,000
Packet Buffer Size
1.5 MB
Access Lists
IPv4: 128
MAC: 128
Layer 3 Features
DHCP Server (Local Networks)
Yes
DHCP Relay
Yes
Inter-VLAN Routing (Local Networks)
Yes
Static Routing (Local Networks)
Yes
Layer 2 Features
LACP Port Aggregation
Yes
STP & RSTP
Yes
QoS (DSCP)
Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes
IGMP Snooping
Yes
802.1X Control
Yes
MAC-Based ACLs & Device Isolation
Yes
DHCP Snooping & Guarding
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
MAC Address Blocking
Yes
IP-Based ACLs & Network Isolation
Yes
MAC-Based Port Restriction
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
LLDP-MED
Yes
Voice VLAN
Yes
Loop Protection
Yes
Hardware
PoE Ports
PoE+: 8
PoE++: 16
Max. PoE Wattage per Port by PSE
PoE: 15.4W
PoE+: 32W
PoE++: 64W
Max. Power Consumption
50W (Excluding PoE Output)
450W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 550W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Weight
Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2")
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet: Yes
SFP+: Yes
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Software
Application Requirements
UniFi Network
Version 8.0.24 and later
