- 48x Gigabit Ethernet Ports
- 4x SFP+ Ports
- 600W PoE Budget
- 802.3at PoE+
- 802.3bt PoE
- Managed Switch
- Layer 2 Switching
- Layer 3 Switching
- Touch Display
- Gen2 Design

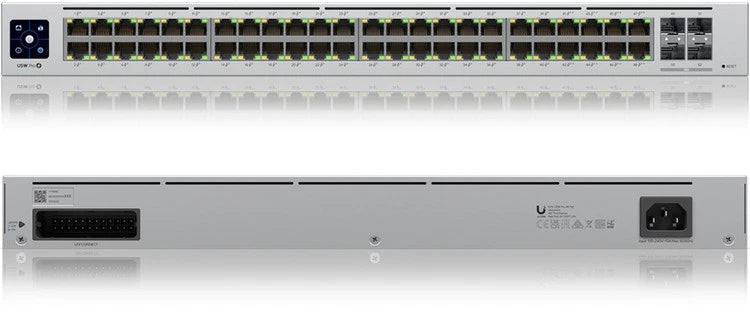

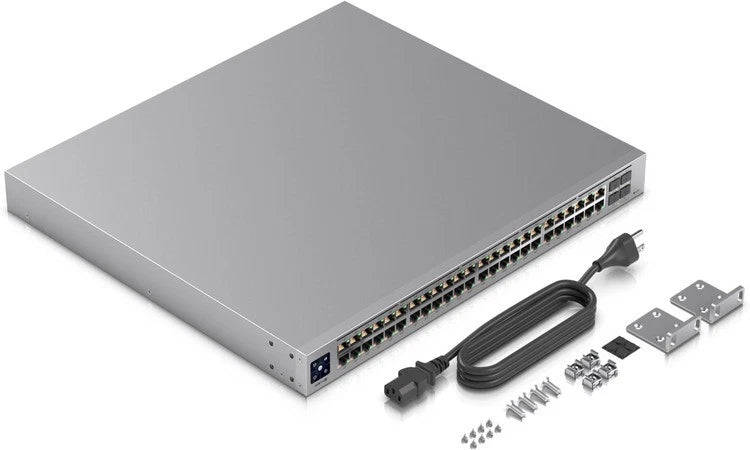

UniFi Switch Pro 48 PoE
Layer 3, PoE switch with (48) GbE RJ45 ports, including (40) 802.3at PoE+ ports and (8) 802.3bt PoE++ ports, and (4) 10G SFP+ ports.
Ideal Access Layer Switch
The Switch Pro 48 PoE is a fully managed switch with (40) GbE, 802.3at PoE+ RJ45 ports, (8) GbE, 802.3bt PoE++ RJ45 ports, and (4) 10G SFP+ ports. The USW Pro 48 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 48 PoE is the ideal access layer switch for any UniFi system. It combines up to 600W of PoE power with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
The Dual-WAN Gateway Pro offers an enterprise-grade firewall and a deep set of threat management features.
- Operation mode (switching, mirroring, or aggregate) per port
- Network/VLAN configuration
- Jumbo frame and flow control services
- Network settings
- Storm control setting per port
- Spanning tree configuration
- 802.1X control and RADIUS VLAN
- Debug terminal option for command-line interface
Do UniFi Switches have Layer 3 functionality?
Yes, all UniFi Switch Pro and Enterprise models have Layer 3 switching features, including inter-VLAN routing, static routing, and DHCP.
Scalable UniFi Network Controller
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
Specifications
Dimensions
442.4 x 399.6 x 43.7 mm
Weight
With Rackmount Brackets
6.25 kg
6.34 kg
Interfaces Networking
(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports
Management
Ethernet In-Band
Total Non-Blocking Throughput
88 Gbps
Switching Capacity
176 Gbps
Forwarding Rate
130.944 Mpps
Power Method
Universal Input: 100-240VAC/50-60 Hz
USP RPS DC Input: 52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply
AC/DC, Internal, 660W
Supported Voltage Range
100 to 240VAC
Max. Power Consumption (Excluding PoE Output)
60W
LEDs
System: Status
RJ45 Data Ports: PoE; Speed / Link / Activity
SFP+ Data Ports: Link / Activity
ESD / EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration
ETSI300-019-1.4 Standard
Operating Temperature
-5 to 40° C
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
PoE Interfaces
Ports 1-40: POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
Ports 41-48: 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) 7, 8-)
Max. PoE Wattage per Port by PSE
802.3at: 32W
802.3bt: 64W
Voltage Range 802.3af Mode
44 - 57V
Voltage Range 802.3at Mode
50 - 57V
