• 8-Port Switch

• 120W PoE Budget

• 6x GbE PoE+ Ports

• 2x GbE PoE++ Ports

• 2x 10G SFP+ Ports

• Layer 3 Switching

• Managed Switch

• Wall Mountable

• UniFi Network Compatible

• Rackless Compact Design

Product Description

Dimensions
200 x 248 x 44 mm
(7.9 x 9.8 x 1.7")

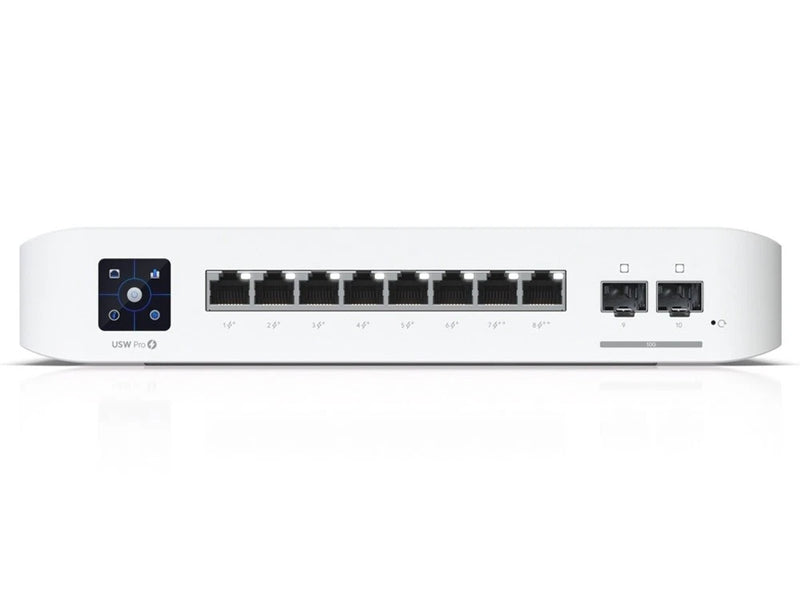

Port Layout
1 GbE RJ45
8 (6 PoE+; 2 PoE++)
(1G/100M/10M)
10G SFP+
2
(10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
120W
Layer 3
✓
Form Factor
Compact desktop, wall

Performance
Switching Capacity
56 Gbps
Total Non-Blocking Throughput
28 Gbps
Forwarding Rate
42 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
IPv4 Static Routes
256
Packet Buffer Size
1.5 MB
Access Lists
IPv4
128
MAC
128

Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓

Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓

Hardware
PoE Ports
PoE+
6
PoE++
2
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
30W (Excluding PoE Output)
150W (Including PoE Output)
Power Method
Universal input, 100–240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 150W
Supported Voltage Range
100–240V AC
Management
Ethernet
AR
Heat Dissipation
102.4 BTU/hr (Excluding PoE Output)
Weight
2.1 kg (4.6 lb)
Enclosure Material
Polycarbonate, metal
Mount Material
Polycarbonate
Supported Rack Depth
400~1200 mm
(15.7-47.2")
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-5 to 45° C (23 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 05214-24-08356

Software
Application Requirements
UniFi Network
Version 7.5.176 and later
