• Outdoor Weatherproof Enclosure

• UniFi Switch Flex Compatible

• Maximum 46W PoE Output

• Pole Mount Support

• Wall Mount Support

• Outdoor Rated Design

Switch Flex Utility

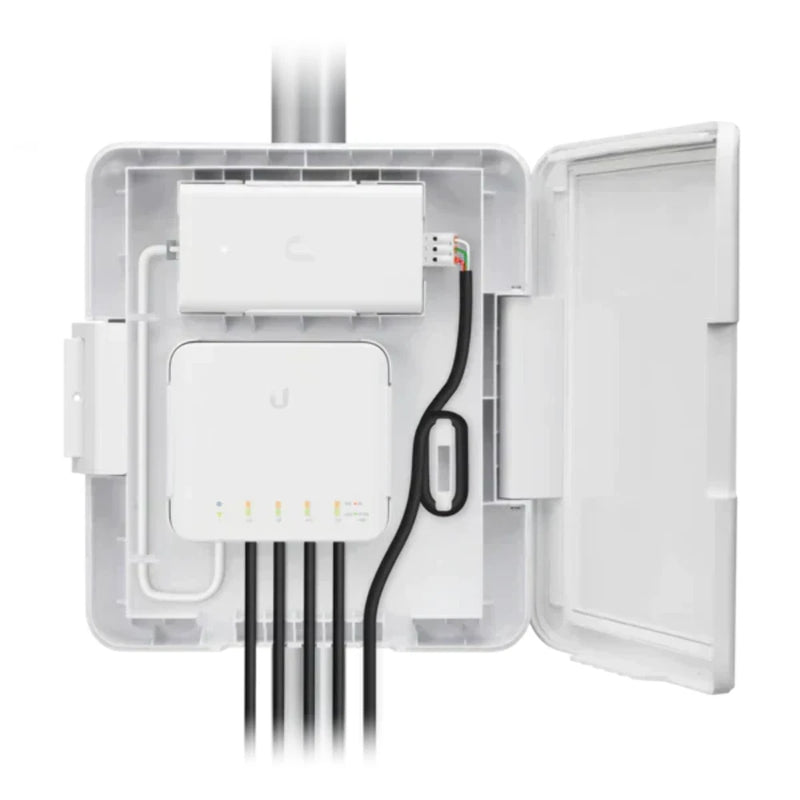

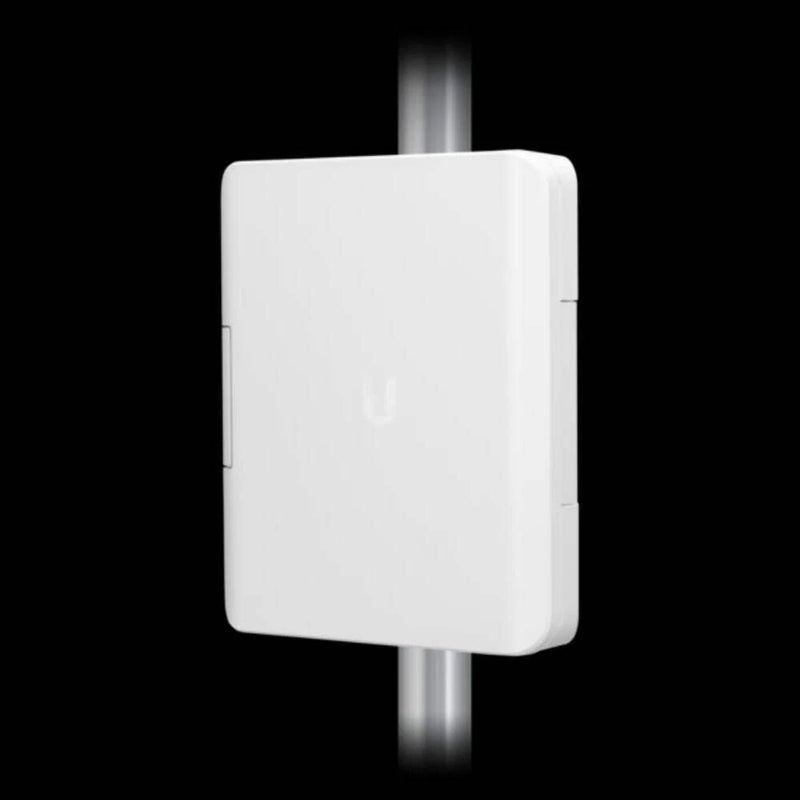

The Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex.

Weatherproof Enclosure
It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W. The USW Flex Utility can be easily mounted on a pole, provides clean cable management and screw lock for security.

USW-Flex-Utility
Dimensions (with Mount)
249 x 218 x 60 mm

Weight (with Mount)
740 g

USW-Flex-Utility 60W PoE Adapter
Dimensions
118.5 x 63 x 34.7 mm

Weight
206 g

Output Voltage
54V, 1.11A

Rated Voltage
100 - 240VAC

Input Current
1.5A (Max.)

Efficiency
> 86%

Output Ripple
200mVpp

Line Regulation
< 1%

Load Regulation
< 3%

4-Pair Powering
Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8-

Operating Temperature
-20 to 60 ̊ C

Storage Temperature
-30 to 70 ̊ C

Operating Humidity
5 to 90%, Noncondensing

Surge Immunity
4kV Difference and Common Mode
