• 8x Gigabit Ethernet Ports

• 4x PoE Output Ports

• 52W PoE Budget

• Managed Switch

• Layer 2 Switching

• Fanless Design

• Wall Mount Kit Included

• UniFi Network Compatible

• USW-Lite-8-PoE Model

Compact Versatility
The Switch Lite 8 PoE is a fully managed switch with (8) GbE RJ45 ports, including (4) PoE+ ports, and a 52W total PoE supply for your UniFi access points and other PoE devices. The USW Lite 8 PoE also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

52W PoE Availability
Equipped with GbE PoE+ ports, the Lite 8 PoE provides a total power budget of 52W. This allows seamless integration of PoE-enabled devices such as UniFi access points and IP cameras, simplifying your network setup.

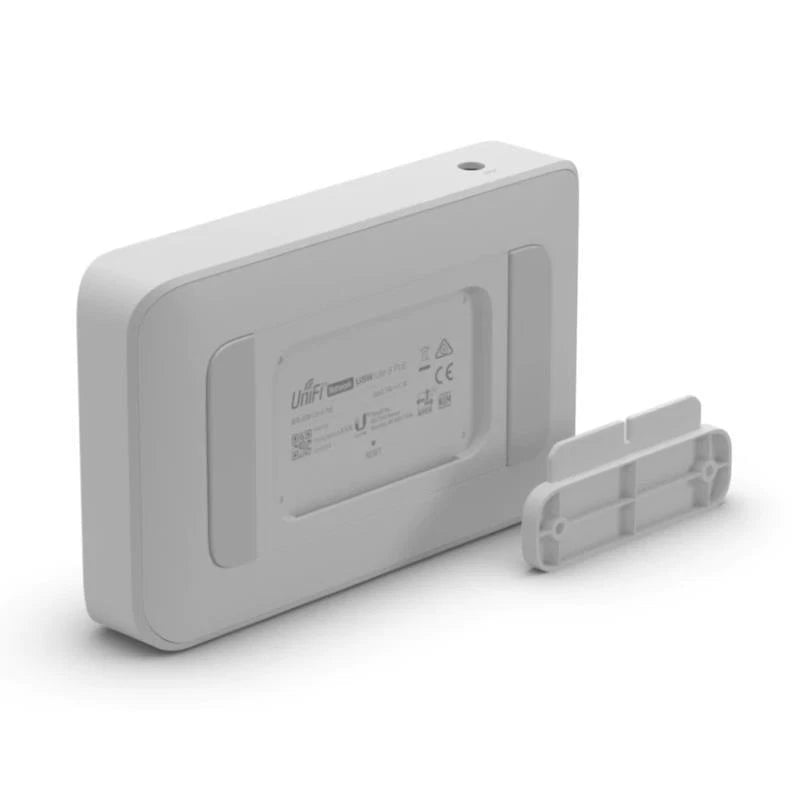

Flexible Mounting Options
The Lite 8 PoE's compact, wall-mountable design allows for flexible installation in various settings.

Overview
Dimensions
99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")

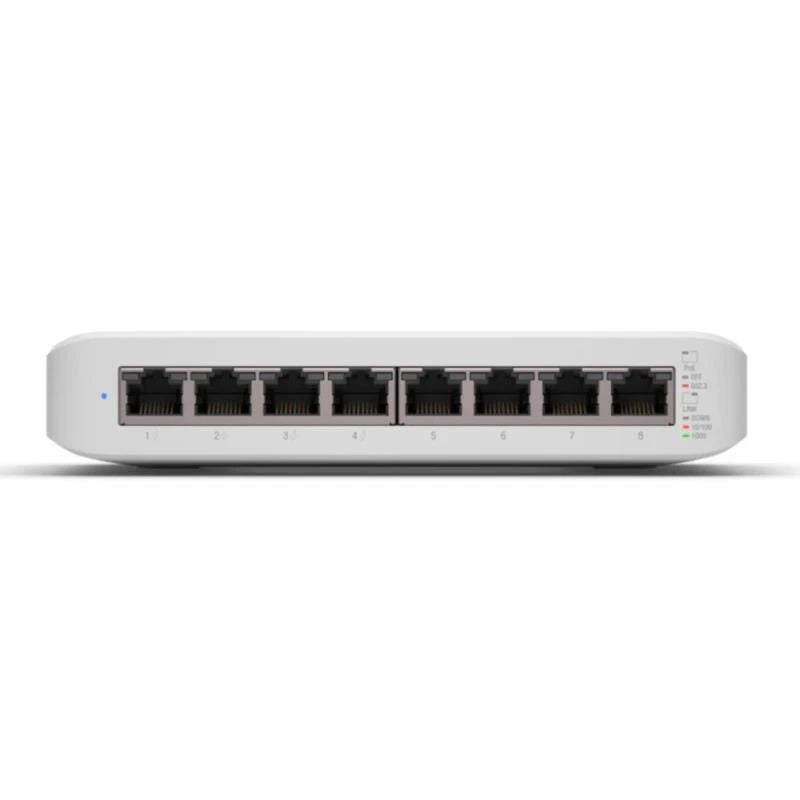

Port Layout
1 GbE RJ45: 8 (4 PoE+)
(1G/100M/10M)
Max. PoE Output
Up to PoE+
Total PoE Availability
52W
Form Factor
Compact desktop, wall
Performance
Switching Capacity
16 Gbps
Total Non-Blocking Throughput
8 Gbps
Forwarding Rate
12 Mpps
Supported VLANs
1,000
MAC Address Table Size
8,000
Packet Buffer Size
0.5 MB
Access Lists
IPv4: 128
MAC: 128
Layer 2 Features
LACP Port Aggregation
Yes
STP & RSTP
Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes
IGMP Snooping
Yes
802.1X Control
Yes
MAC-Based ACLs & Device Isolation
Yes
DHCP Snooping & Guarding
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
MAC Address Blocking
Yes
IP-Based ACLs & Network Isolation
Yes
MAC-Based Port Restriction
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
LLDP-MED
Yes
Voice VLAN
Yes
Loop Protection
Yes
Virtual Network Override
Yes
Hardware
PoE Ports
PoE+: 4
Max. PoE Wattage per Port by PSE
PoE+: 30W
Max. Power Consumption
8W (Excluding PoE Output)
60W (Including PoE Output)
Power Method
AC/DC Adapter (included)
Power Input Method
DC input
Power Supply
AC/DC, external, 60W
Supported Voltage Range
50—57V DC
Management
Ethernet
Heat Dissipation
27.3 BTU/hr (Excluding PoE Output)
Weight
295 g (10.4 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Ambient Operating Temperature
-15 to 40° C (5 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC, Anatel: 04479-21-08356
Software
Application Requirements
UniFi Network, Version 7.2.94 and later
