• 8x 10G SFP+ Ports

• Layer 2 Switch

• Managed Switch

• Fanless Design

• 1U Rackmount

• UniFi Network Compatible

• USW-Aggregation Model

• 10GbE Connectivity

• Steel Enclosure

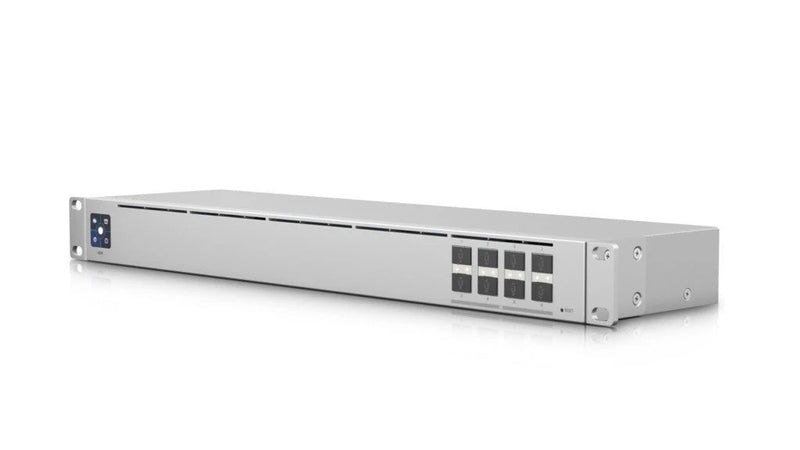

Fully Managed, Layer 2 Switch
The Switch Aggregation is a fully managed, Layer 2 switch with (8) 10G SFP+ ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3" LCM colour touchscreen that concisely displays key system and connection insights. Additionally, with its 4.7" depth, it's easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Works with the UniFi Network Application
Centrally manage multiple networks from an intuitive interface
Enjoy real-time device insights and deep configuration options
Upgrade device firmware remotely
Manage network users and guests with ease
Personalize the design, architecture, and privacy of guest hotspots
Set up devices quickly and manage them on the go with a powerful mobile app

specifications

Mechanical
Dimensions
442.4 x 120 x 43.7 mm

Weight
Without Mount: 2.65 kg
With Mount: 2.74 kg

Enclosure materials
SGCC Steel

Hardware
Total Non-Blocking Throughput
80 Gbps

Switching Capacity
160 Gbps

Forwarding Rate
119.04 Mpps

Max. Power Consumption
30W

Power Method
Universal AC Input: 100-240VAC, 50/60 Hz

Power Supply
AC/DC, Internal, 36W

Management Interface
Ethernet In-Band

Modes
SMB Layer 2 Gigabit Ethernet Switch

Max. Number of Supported SFP+ Modules
UACC-OM-MM-10G: 8
UACC-OM-SM-10G: 8
UACC-CM-RJ45-10G: 4

ESD/EMP Protection
Air: ± 16kV, Contact: ± 12kV

Operating Temperature
-5 to 40° C

Operating Humidity
10 - 90% Non Condensing

Certifications
CE, FCC, IC

LEDs
System
(1) Bootup Animation
Bootup in Progress

Firmware Upgrade Icon
Firmware Upgrading

Steady White
Factory Defaults, Awaiting Adoption

Steady Blue
Device is Adopted

SFP+
White: 10G, 1G
