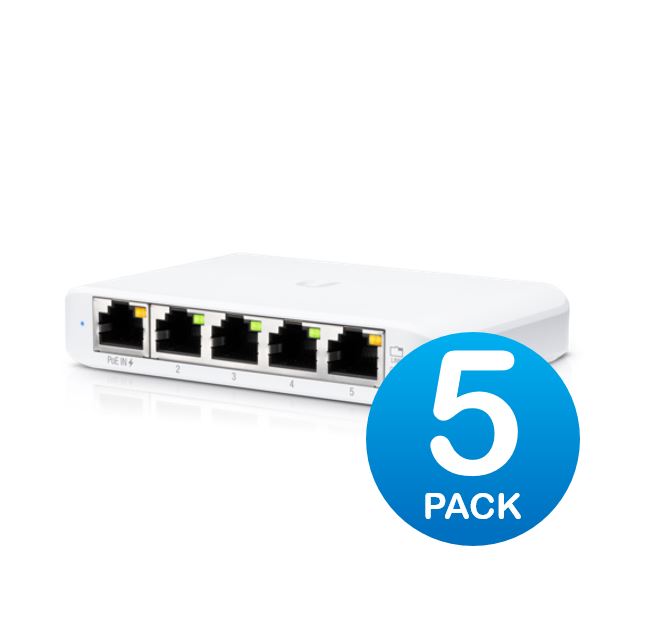

• 5 Pack UniFi USW Flex Mini Switches

• Smart Layer 2 Managed Switch

• 5x Gigabit RJ45 Ports Per Switch

• UniFi Network Management

• 802.3af PoE Powered

• USB Type‑C Power Support

• Compact Desktop Design

• Gigabit Ethernet Connectivity

• Silent Fanless Operation

• Easy Network Expansion

Compact 5-Port Gigabit Layer 2 Switch
The USW-Flex-Mini is a compact, energy-efficient Layer 2 switch featuring five 10/100/1000 Mbps RJ45 ports, 10 Gbps switching capacity, and PoE or USB-C power options. With support for VLANs, port isolation, and storm control, it’s ideal for small network expansions and desktop deployments. Managed via the UniFi Network application, it offers seamless integration into UniFi environments.

SPECIFICATIONS

Dimensions
107 x 70 x 21 mm
(4.2 x 2.8 x 0.8")
Port Layout
1 GbE RJ45
5
(1G/100M/10M)
Form Factor
Compact desktop

Performance
Switching Capacity
10 Gbps
Total Non-Blocking Throughput
5 Gbps
Forwarding Rate
7 Mpps
Supported VLANs
1,000
MAC Address Table Size
2,000

Layer 2 Features
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓

Hardware
Max. Power Consumption
2.5W
Power Method
(1) USB Type-C, 5V DC, 1A
(1) PoE
Power Input Method
USB Input
PoE
Power Supply
AC/DC, external, 5W
Supported Voltage Range
4.8—5.2V DC/USB
44V—57V PoE
Management
Ethernet
Heat Dissipation
6.8 BTU/hr
Weight
150 g (5.3 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 45° C (23 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 14501-20-08356

Software
Application Requirements
UniFi Network
Version 5.12.5 and later
