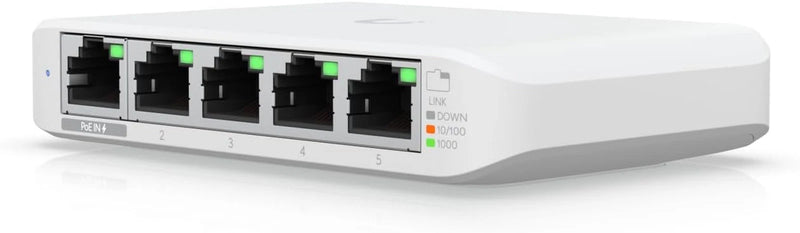

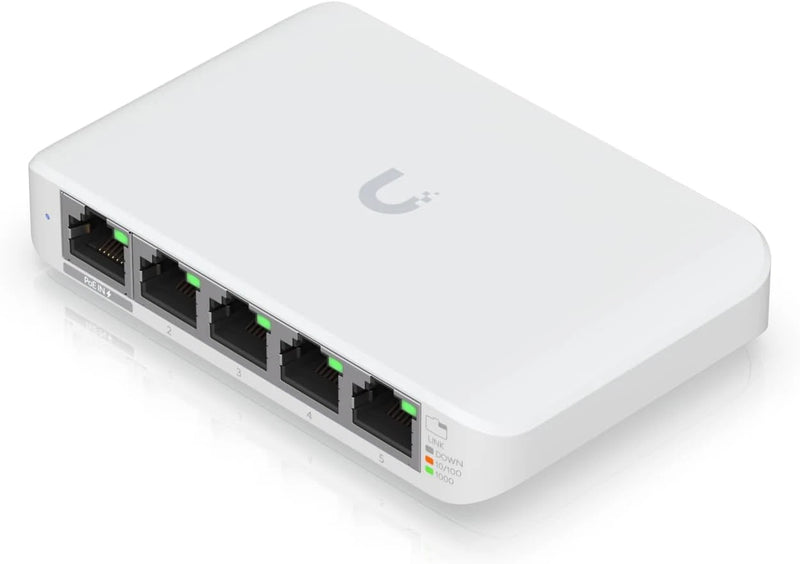

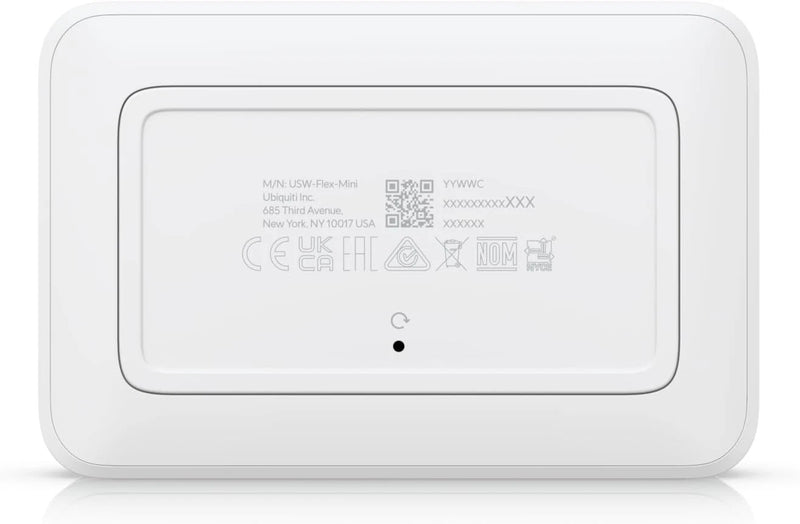

Ubiquiti USW Flex Mini 5 Port Gigabit Layer 2 Switch PoE USB-C

Original price $66.50 - Original price $66.50
Original price
$66.50
$66.50 - $66.50
Current price $66.50
Availability:
in stock, ready to be shipped
SKU USW-FLEX-MINI

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

Warranty information

1 Year Manufacturer's Warranty

  • 5x GbE RJ45 Ports
  • Layer 2 Switch
  • Managed Switch
  • PoE Powered (802.3af)
  • USB Type-C Power Input
  • 5V 1A Power Support
  • UniFi Network Compatible



Compact Versatility
The Switch Flex Mini is a fully managed, Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input. The USW Flex Mini can be powered with either PoE (via Port 1) or its included USB-C power adapter. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Flexible Power Options
Designed for versatility, the switch can be powered either through Power over Ethernet (PoE) or a USB-C adapter. This dual power capability ensures easy integration into existing network setups without the need for additional power infrastructure.

UniFi Integration
Seamlessly integrates with the UniFi ecosystem, allowing for simple setup and centralised management through the UniFi Network application. Gain full visibility and control of your switch and connected devices with just a few clicks.

Specifications

Overview
Dimensions
107 x 70 x 21 mm (4.2 x 2.8 x 0.8")
Port Layout
1 GbE RJ45: 5
(1G/100M/10M)
Form Factor
Compact desktop
Performance
Switching Capacity
10 Gbps
Total Non-Blocking Throughput
5 Gbps
Forwarding Rate
7 Mpps
Supported VLANs
1,000
MAC Address Table Size
2,000
Layer 2 Features
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
Hardware
Max. Power Consumption
2.5W
Power Method
(1) USB Type-C, 5V DC, 1A
(1) PoE
Power Input Method
USB Input
PoE
Power Supply
AC/DC, external, 5W
Supported Voltage Range
4.8—5.2V DC/USB
44V—57V PoE
Management
Ethernet
Heat Dissipation (Excluding PoE Output)
6.824 BTU/hr
Weight
150 g (5.3 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 45° C (23 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Software
Application Requirements
UniFi Network: Version 5.12.5 and later
