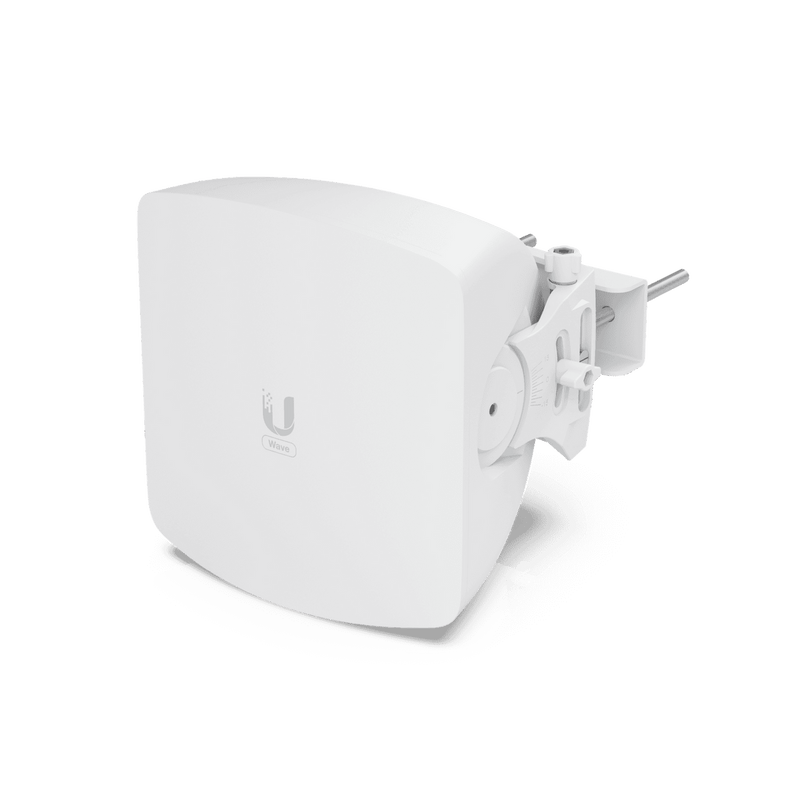

Ubiquiti Wave AP, 60 GHz 5.4 Gbps Max Access Point
Ubiquiti Wave AP, 60 GHz 5.4 Gbps Max Access Point, Gbps duplex, 30Ā° Sector Coverage, Integrated GPS & Bluetooth, 2Yr Warr2.7
Wave-AP
Ubiquiti Access Point
Wave AP Max Access Point, Gbps duplex, 30Ā° Sector Coverage
Ubiquiti Wave AP, 60 GHz 5.4 Gbps Max Access Point
Ubiquiti Wave AP, 60 GHz 5.4 Gbps Max Access Point, Gbps duplex, 30Ā° Sector Coverage, Integrated GPS & Bluetooth, 2Yr Warr2.7
Wave-AP
Ubiquiti Access Point
Wave AP Max Access Point, Gbps duplex, 30Ā° Sector Coverage

Ubiquiti Wave AP, 60 GHz 5.4 Gbps Max Access Point

$1,030.70 - $1,030.70
$1,030.70
$1,030.70 - $1,030.70
$1,030.70
Availability:
in stock, ready to be shipped
SKU Wave-AP
by Ubiquiti

Change-of-mind returns

Request approval within 14 days. Unopened, unused items in sealed packaging only. A 15% restocking fee and return freight apply. See Refund Policy.

Warranty information

2 Years Manufacturer's Warranty

The Ubiquiti Wave AP (Wave-AP) is a 60 GHz point-to-multipoint access point for outdoor wireless links, with a 5 GHz backup radio and UISP management.

Key Benefits

  • 60 GHz Wave point-to-multipoint operation.
  • 5 GHz backup radio.
  • 2.5 GbE RJ45 and 10G SFP+ interfaces.
  • Integrated GPS.
  • IPX6 weather resistance.

Plan the complete wireless link

Supported link distance depends on the station model and installation. Maximum distances include up to 8km with a Wave Pro or Wave Long-Range, 5km with a Wave Nano, and 1.3km with a Wave Pico. These are not guaranteed distances; alignment, line of sight, weather and site conditions affect results.

Wired connectivity and power

The access point uses passive PoE and includes a 48V DC, 0.65A 2.5 GbE PoE adapter. The RJ45 interface is active when the SFP+ link is down, rather than providing two simultaneous active uplinks. Match the power source and wiring to the specified passive PoE requirements.

Manage in UISP

Use UISP 1.5.7 or later for management, monitoring and link tools. Available radio channels depend on region and configuration; headline aggregate wireless throughput is not guaranteed internet throughput.

Technical Specifications

Specification Details
Model / part number Wave-AP
Operating mode Point-to-multipoint access point
Main / backup radio 60 GHz / 5 GHz
Aggregate throughput Up to 5.4 Gbps; actual performance varies
Interfaces 1 Ɨ 2.5 GbE RJ45; 1 Ɨ 10G SFP+
Uplink behaviour RJ45 active when SFP+ link is down
Maximum power consumption 24W
Included adapter 48V DC, 0.65A, 2.5 GbE passive PoE
Weather resistance IPX6
Pole diameter 25ā€“76mm
Dimensions 212 Ɨ 205 Ɨ 187mm
Weight 2.3kg
Operating temperature āˆ’40 to 60Ā°C

Included Items

  • Wave-AP access point
  • 48V DC, 0.65A 2.5 GbE PoE adapter
